1. انتهى المنتجview
This document provides instructions for the installation, operation, and maintenance of the Generic Refrigerator Ice Maker replacement part, model DA97-15217DCM. This ice maker is designed as a compatible replacement for various Samsung refrigerator models.
ماذا يوجد في الصندوق
- صانعة الثلج (وحدة واحدة)
التوافق
This replacement ice maker is compatible with numerous Samsung refrigerator models. Some of the compatible models include, but are not limited to: RF30KMEDBSR/AA-02, RF27T5501SG/AA-51, RF28HDEDBSG/AA-01, RF28M9580SG/AA-01, RF263BEAESG/AA-02, RF28JBEDBSR/AA-13, RF28K9070SG/AA-08, and RF28HFEDTWW/AA-04. Please verify your refrigerator's model number against the product's full compatibility list before installation.
2. معلومات هامة حول السلامة
Read all instructions carefully before attempting installation or maintenance. Failure to follow these safety guidelines may result in property damage, personal injury, or death.
- فصل الطاقة: Always unplug the refrigerator from the power outlet before performing any installation, maintenance, or troubleshooting.
- إمدادات المياه: Turn off the water supply to the refrigerator before beginning installation.
- التثبيت الاحترافي: إذا لم تكن متأكدًا من أي خطوة، فاستشر فني أجهزة مؤهلًا.
- حواف حادة: Be aware of sharp edges inside the refrigerator compartment. Wear protective gloves if necessary.
- التوصيلات الكهربائية: Ensure all electrical connections are secure and dry before restoring power.
3. دليل التثبيت
قبل أن تبدأ
- تأكد من فصل الثلاجة عن الكهرباء وإيقاف إمداد المياه.
- Clear any ice from the ice bucket and surrounding area.
- Gather necessary tools, which may include a screwdriver (Phillips head or flathead, depending on your model).
خطوات التثبيت
- Locate the Old Ice Maker: Open the freezer door and locate the existing ice maker assembly. It is typically mounted on the left side wall of the freezer compartment.
- Remove the Ice Bucket: Carefully pull out the ice bucket to gain full access to the ice maker.
- فصل الأسلاك: Locate the electrical connector attached to the ice maker. Gently press any release tabs and pull the connector apart.
- قم بإزالة براغي التثبيت: Identify and remove the screws securing the old ice maker to the freezer wall. There are usually 2-3 screws.
- Detach Old Ice Maker: Once screws are removed and wiring is disconnected, carefully slide or pull the old ice maker out of its mounting brackets.
- تركيب صانع ثلج جديد: Align the new ice maker (model DA97-15217DCM) with the mounting brackets. Slide it into place until it is securely seated.
- تأمينها بالبراغي: Reinsert and tighten the mounting screws to firmly attach the new ice maker to the freezer wall.
- توصيل الأسلاك: Reconnect the electrical connector to the new ice maker. Ensure it clicks into place for a secure connection.
- Replace Ice Bucket: Slide the ice bucket back into its position.
- استعادة الطاقة والمياه: Turn on the water supply to the refrigerator and plug the refrigerator back into the power outlet.

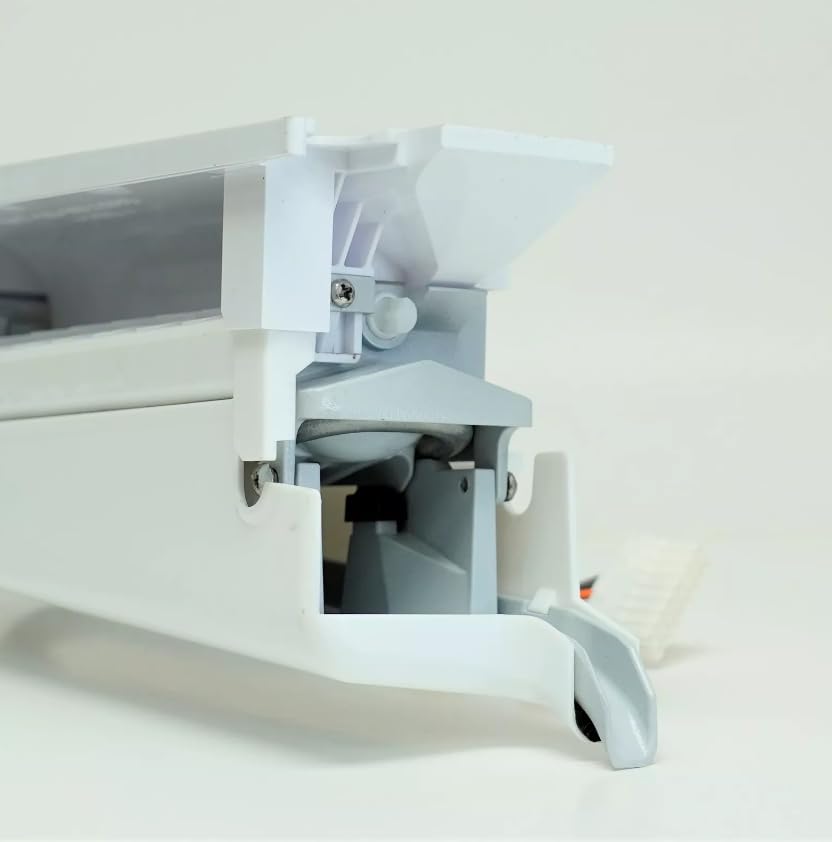

Image 1: The Generic Refrigerator Ice Maker replacement part, model DA97-15217DCM, shown from an angled view with its electrical connector.
الصورة 2: عن قرب view of the multi-pin electrical connector for the ice maker, essential for power and control signals.
4. التشغيل
After successful installation and restoration of power and water, the ice maker will begin its ice production cycle automatically. It may take several hours for the first batch of ice to be produced and for the ice bucket to fill. Discard the first few batches of ice to ensure cleanliness and proper functioning.
5. الصيانة
تساعد الصيانة الدورية على ضمان الأداء الأمثل وطول عمر جهاز صنع الثلج.
- تنظيف: Periodically remove the ice bucket and clean it with mild soap and warm water. Rinse thoroughly and dry completely before returning it to the freezer.
- تقتيش: Occasionally inspect the ice maker for any ice buildup or obstructions around the ice ejector arm or water fill tube.
- فلتر المياه: Ensure your refrigerator's water filter is replaced according to the manufacturer's recommendations to maintain water quality and prevent mineral buildup in the ice maker.
6. استكشاف الأخطاء وإصلاحها
يرجى الرجوع إلى الجدول أدناه للتعرف على المشكلات الشائعة وحلولها المحتملة.
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد إنتاج للثلج | Refrigerator not plugged in; water supply off; freezer temperature too high; clogged water line; ice maker switch off. | Check power connection; ensure water supply is on; verify freezer temperature is below 0°F (-18°C); inspect water line for kinks or clogs; ensure ice maker's power switch (if present) is on. |
| مكعبات ثلج صغيرة أو مجوفة | Low water pressure; partially clogged water filter. | Check household water pressure; replace water filter if due. |
| Ice tastes bad | Old ice; dirty ice bucket; old water filter. | Discard old ice; clean ice bucket; replace water filter. |
| صانعة الثلج تصدر أصواتاً غير عادية | Normal operation sounds; obstruction. | Some sounds are normal during ice ejection and water filling. Check for any obstructions in the ice maker or ice bucket. |
7. المواصفات
Technical details for the Generic Refrigerator Ice Maker replacement part.
| ميزة | التفاصيل |
|---|---|
| ماركة | نوعي |
| اسم الموديل | صانعة الثلج |
| Item Model Number (Part) | DA97-15217DCM |
| المجلدtage | 120 فولت تيار متردد |
| تكرار | 60 هرتز |
| واتtage | 141 واط |
| أصل التصنيع | صنع في الصين |
| ASIN | B0F7SD47DY |

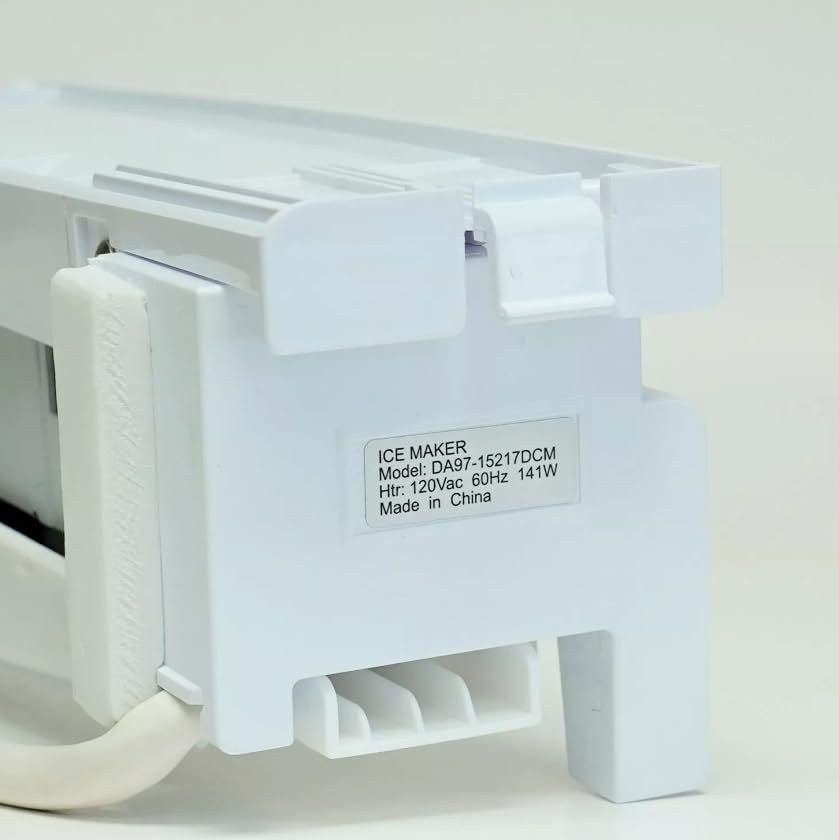

Image 3: A close-up of the ice maker's label, showing model number DA97-15217DCM, voltagه ، تردد ، واتtage, and country of origin.
8. الضمان والدعم
For warranty information or technical support regarding this replacement ice maker, please contact the seller or the manufacturer directly. Keep your purchase receipt as proof of purchase.
