Luxell LX-2802K 5-Bar Quartz Heater Instruction Manual

تعليمات السلامة الهامة

Read all instructions carefully before using this heater. Failure to follow these instructions may result in fire, electric shock, injury, or property damage. Keep this manual for future reference.

• السلامة الكهربائية: Ensure the heater is connected to a properly grounded outlet with the correct voltage (220 Volts) and ampالعمر (10.91 Amps). Do not overload electrical circuits. Avoid using extension cords unless absolutely necessary and ensure they are rated for the heater's wattage.
• الموقع: Place the heater on a firm, level surface. Maintain a minimum clearance of 1 meter (3 feet) from combustible materials such as furniture, curtains, bedding, paper, clothes, and other flammable objects. Do not block air inlets or outlets.
• حماية من الحرارة الزائدة: The heater is equipped with an overheat protection system that automatically shuts off the unit if it becomes too hot. If this occurs, unplug the heater, allow it to cool down, and check for any obstructions before restarting.
• Rollover Protection: A safety switch automatically turns off the heater if it is accidentally tipped over. Ensure the heater is placed on a stable surface to prevent frequent activation of this feature.
• الأطفال والحيوانات الأليفة: Keep children and pets away from the heater. The surface of the heater can become very hot during operation.
• لا تغطي: Never cover the heater with anything, as this can cause overheating and fire.
• رُطُوبَة: لا تستخدم السخان في حالة رطبة أو دamp locations, such as bathrooms or laundry areas, or near water sources. While the product description mentions "Indoor, Outdoor" usage, exercise extreme caution if using outdoors and ensure it is protected from direct moisture and precipitation.
• صيانة: افصل السخان دائمًا عن الكهرباء قبل التنظيف أو إجراء أي صيانة.
• سلك/قابس تالف: Do not operate the heater with a damaged cord or plug. Contact qualified service personnel for repair.

المنتج انتهىview

The Luxell LX-2802K is a powerful 2400W 5-bar quartz heater designed for efficient radiant heating. It features multiple heat settings, an adjustable thermostat, and essential safety mechanisms for reliable operation.

المميزات الرئيسية:

• 5 Quartz Tube Heating Elements (3 in front, 2 on top)
• أقصى طاقة خرج 2400 واط
• 3 Heating Power Settings: 600W, 1800W, 2400W
• Adjustable Thermostat for temperature control
• Rollover Protection Safety Switch
• حماية من الحرارة الزائدة
• Polished Stainless Steel Reflector for enhanced heat distribution
• Durable Steel Body construction
• عجلات لسهولة الحركة

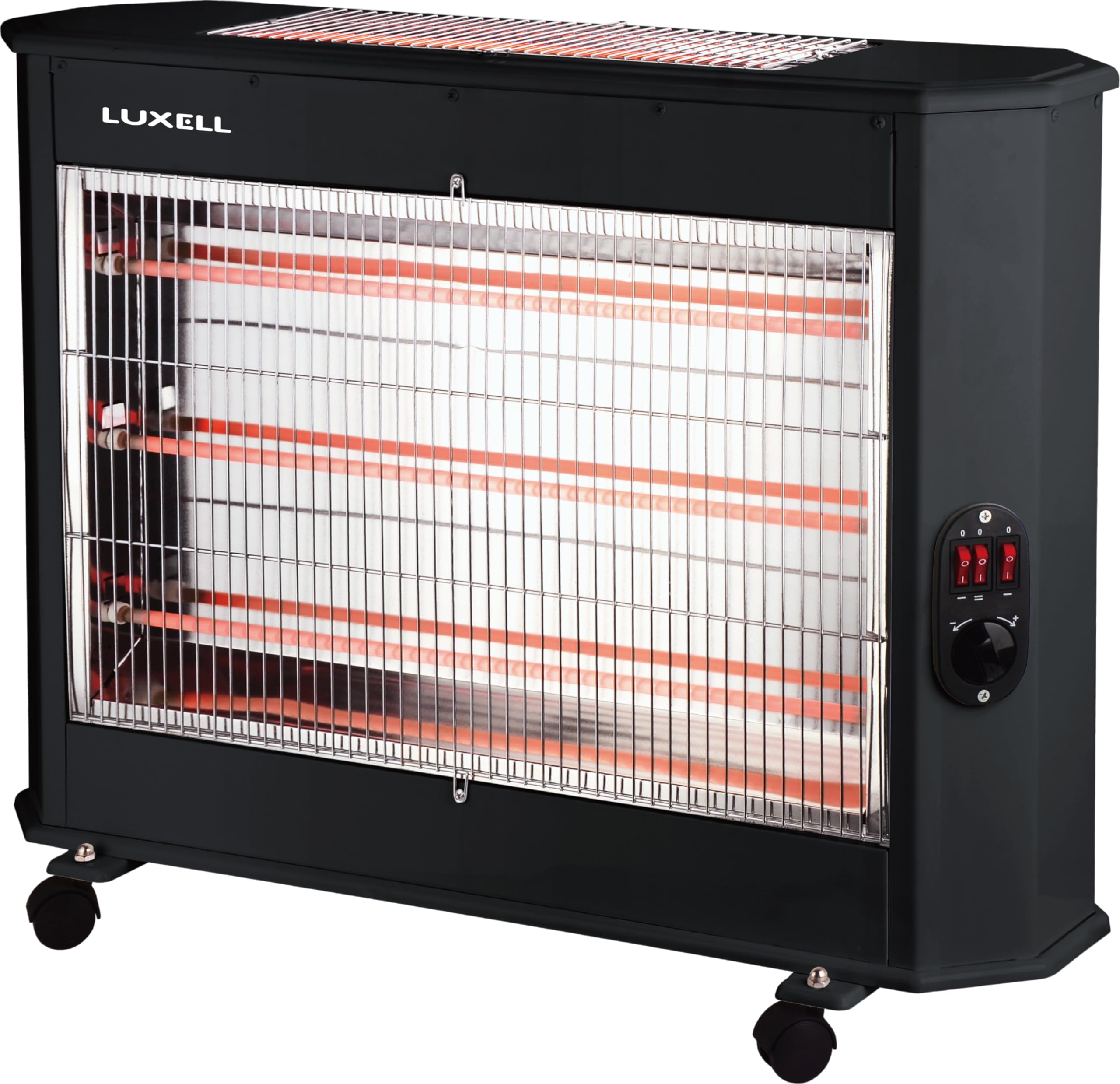

Image: The Luxell LX-2802K 5-Bar Quartz Heater, showing its black steel body, front and top quartz heating elements, control panel, and integrated wheels.

الإعداد والتجميع

1. فك التعبئة: Carefully remove the heater from its packaging. Retain packaging materials for future storage or transport. Inspect the heater for any signs of damage. Do not operate if damaged.
2. تجميع العجلة: The heater comes with wheels for portability. Attach the wheels to the designated points on the bottom of the heater using the provided hardware. Ensure they are securely fastened.
3. الموقع: Position the heater on a stable, level, and non-combustible surface. Ensure adequate clearance from walls, furniture, and other objects as specified in the "Important Safety Instructions" section.
4. توصيل الطاقة: Plug the power cord directly into a suitable 220V AC, 50Hz grounded electrical outlet. Do not use adapters or power strips unless they are specifically rated for high-wattagالأجهزة الإلكترونية.

تعليمات التشغيل

Familiarize yourself with the control panel, typically located on the side of the heater, which includes power switches and a thermostat dial.

1. تشغيل الطاقة: Ensure the heater is plugged in. Locate the power switches. There are typically multiple switches to control different heating elements.
2. اختر قوة التسخين:
   • To activate 600W heating, switch on the appropriate element(s).
   • To activate 1800W heating, switch on the appropriate element(s).
   • To activate 2400W heating (maximum), switch on all elements (3 front + 2 top).
   Refer to the markings on the control panel for specific switch configurations.
3. ضبط منظم الحرارة: Turn the thermostat dial to your desired heat setting. The heater will cycle on and off to maintain the set temperature. For continuous heating, set the thermostat to its maximum position.
4. إيقاف التشغيل: To turn off the heater, switch off all heating elements and then unplug the unit from the wall outlet. Allow the heater to cool down before moving or storing.

الصيانة والتنظيف

سيساعد التنظيف والصيانة المنتظمة على ضمان التشغيل الفعال والآمن لجهاز السخان الخاص بك.

• قبل التنظيف: افصل السخان دائمًا عن مأخذ الطاقة واتركه يبرد تمامًا قبل تنظيفه.
• التنظيف الخارجي: امسحي الأسطح الخارجية للسخان بقطعة قماش ناعمة.amp لا تستخدم المنظفات الكاشطة أو المذيبات أو المواد الكيميائية القاسية، لأنها قد تؤدي إلى إتلاف الطبقة النهائية.
• إزالة الغبار: Use a vacuum cleaner with a brush attachment to remove dust from the grilles and heating elements. Do not insert any objects into the heater openings.
• تخزين: عند عدم الاستخدام، قم بتخزين المدفأة في مكان بارد وجاف، ويفضل أن يكون ذلك في عبوتها الأصلية، بعيدًا عن أشعة الشمس المباشرة والرطوبة.
• لا يوجد أجزاء قابلة للصيانة من قبل المستخدم: لا تحاول فتح السخان أو إصلاحه بنفسك. قم بإحالة جميع أعمال الصيانة إلى فنيين مؤهلين.

استكشاف الأخطاء وإصلاحها

If the problem persists after attempting these solutions, contact Luxell customer support or a qualified service technician.

تحديد

الضمان والدعم

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or contact Luxell customer service directly. Keep your purchase receipt as proof of purchase.

ملاحظة: قد تختلف شروط وأحكام الضمان المحددة حسب المنطقة والتاجر.
