OEMASSIVE CF12157 CP157 Cabin Air Filter Instruction Manual

1. Introduction to Your Cabin Air Filter

The OEMASSIVE CF12157 CP157 Cabin Air Filter is designed to purify the air entering your vehicle's cabin. It utilizes a multi-layer filtration system to capture various airborne particles, ensuring a cleaner and healthier environment for occupants.

This filter features activated carbon, which is effective in absorbing odors and harmful gases, in addition to filtering dust, pollen, and other pollutants. Regular replacement of your cabin air filter is crucial for maintaining air quality and the efficiency of your vehicle's HVAC system.

Image: The OEMASSIVE Cabin Air Filter shown alongside a modern car interior, emphasizing fresh air delivery.

2. مواصفات المنتج

• الترشيح الفعال: Made with high-quality activated carbon filter cloth and a four-layer filtration technology.
• حماية متعددة الطبقات: Effectively absorbs and filters dust, pollen, smoke, and other pollutants.
• إزالة الروائح: Activated carbon layer helps eliminate unpleasant odors.
• تحسين راحة القيادة: Contributes to a cleaner cabin air environment.
• حماية المحرك: Helps protect the vehicle's HVAC system.

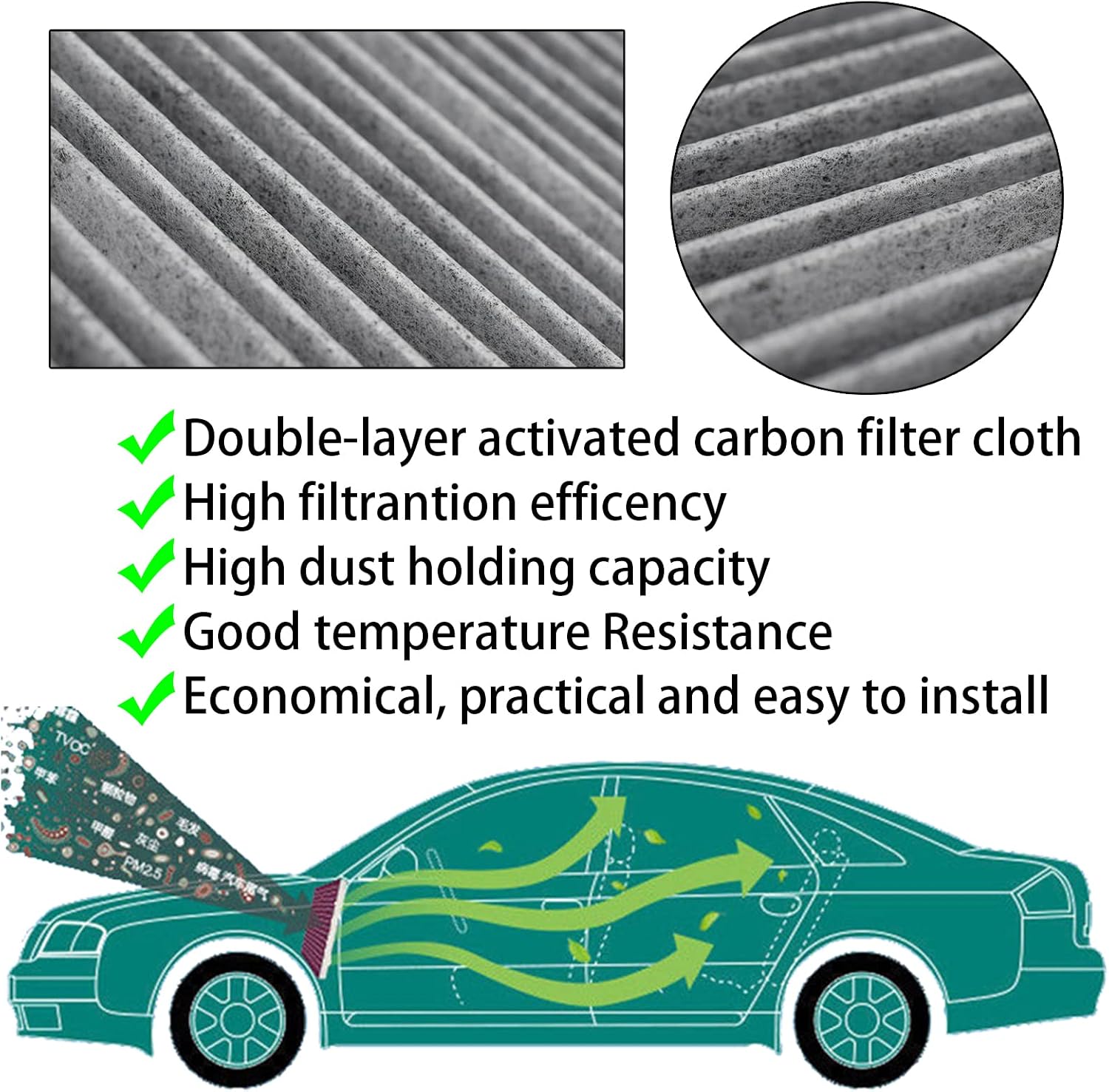

Image: A visual representation highlighting the double-layer activated carbon filter cloth, high filtration efficiency, high dust holding capacity, good temperature resistance, and economical, practical, and easy installation benefits.

3. التوافق

This cabin air filter is compatible with a wide range of vehicle models. Please verify compatibility using your vehicle's year, make, and model before installation.

موديلات تويوتا المتوافقة:

• أفالون (2019-2022)
• كامري (2018-2024)
• كورولا (2019-2024)
• Corolla Cross (2022-2024)
• CROWN (2023-2024)
• هايلاندر (2020-2024)
• بريوس (2016-2024)
• Prius AWD-E (2019-2024)
• Prius Prime (2017-2024)
• راف 4 (2019-2024)
• RAV4 Prime (2021-2024)
• Sienna (2021-2024)
• Venza (2021-2024)
• C-HR (2018-2022)
• Grand Highlander (2024)
• GR Corolla (2023-2024)

موديلات لكزس المتوافقة:

• ES250 (2021-2024)
• ES300h (2019-2024)
• ES350 (2019-2024)
• NX250 (2022-2024)
• NX350 (2022-2024)
• NX350h (2022-2024)
• NX450h+ (2022-2023)
• RX350 (2016-2024)
• RX350h (2023-2024)
• RX350L (2018-2024)
• RX450h (2016-2024)
• RX450hL (2018-2022)
• RX450h+ (2024)
• RX500h (2023)
• UX200 (2019-2022)
• UX250h (2019-2024)

Compatible Subaru Models:

• Ascent (2019-2023)
• Crosstrek (2018-2023)
• Impreza (2017-2023)
• Legacy (2020-2023)
• Outback (2020-2023)

Compatible Mazda Models:

• CX-9 (2016-2023)

4. التثبيت (الإعداد)

Installing the OEMASSIVE cabin air filter is a straightforward process. The filter is typically located behind the glove box on the front passenger side of your vehicle.

1. تحديد مكان غطاء الفلتر: Open the glove box. In most vehicles, you will need to unclip or remove the dampener arm and press in the sides of the glove box to allow it to swing down further, revealing the filter housing.
2. Remove the Filter Cover: Unclip or unlatch the cover of the cabin air filter housing.
3. إزالة الفلتر القديم: Gently pull out the old cabin air filter. Note the direction of the airflow arrow on the old filter.
4. أدخل الفلتر الجديد: Insert the new OEMASSIVE cabin air filter, ensuring the airflow arrow on the filter points in the correct direction (usually downwards, towards the vehicle's floor).
5. إغلاق المساكن: Replace the filter cover and re-secure any clips or latches.
6. Reassemble Glove Box: Reattach the glove box dampener arm (if applicable) and push the sides of the glove box back into place until it closes normally.

Image: A gloved hand demonstrating the process of inserting a new cabin air filter into its housing.

نصيحة دافئة: For precise instructions tailored to your specific vehicle model, consult your vehicle's owner's manual or an online automotive resource.

5. مبادئ التشغيل

The cabin air filter operates by filtering the air that is drawn into your vehicle's heating, ventilation, and air conditioning (HVAC) system from the outside. As air passes through the filter media, particles such as dust, pollen, and debris are trapped. The activated carbon layer further adsorbs odors and harmful gases, preventing them from entering the passenger compartment.

This continuous filtration ensures that the air you breathe inside your car is cleaner, which is particularly beneficial for individuals with allergies or respiratory sensitivities.

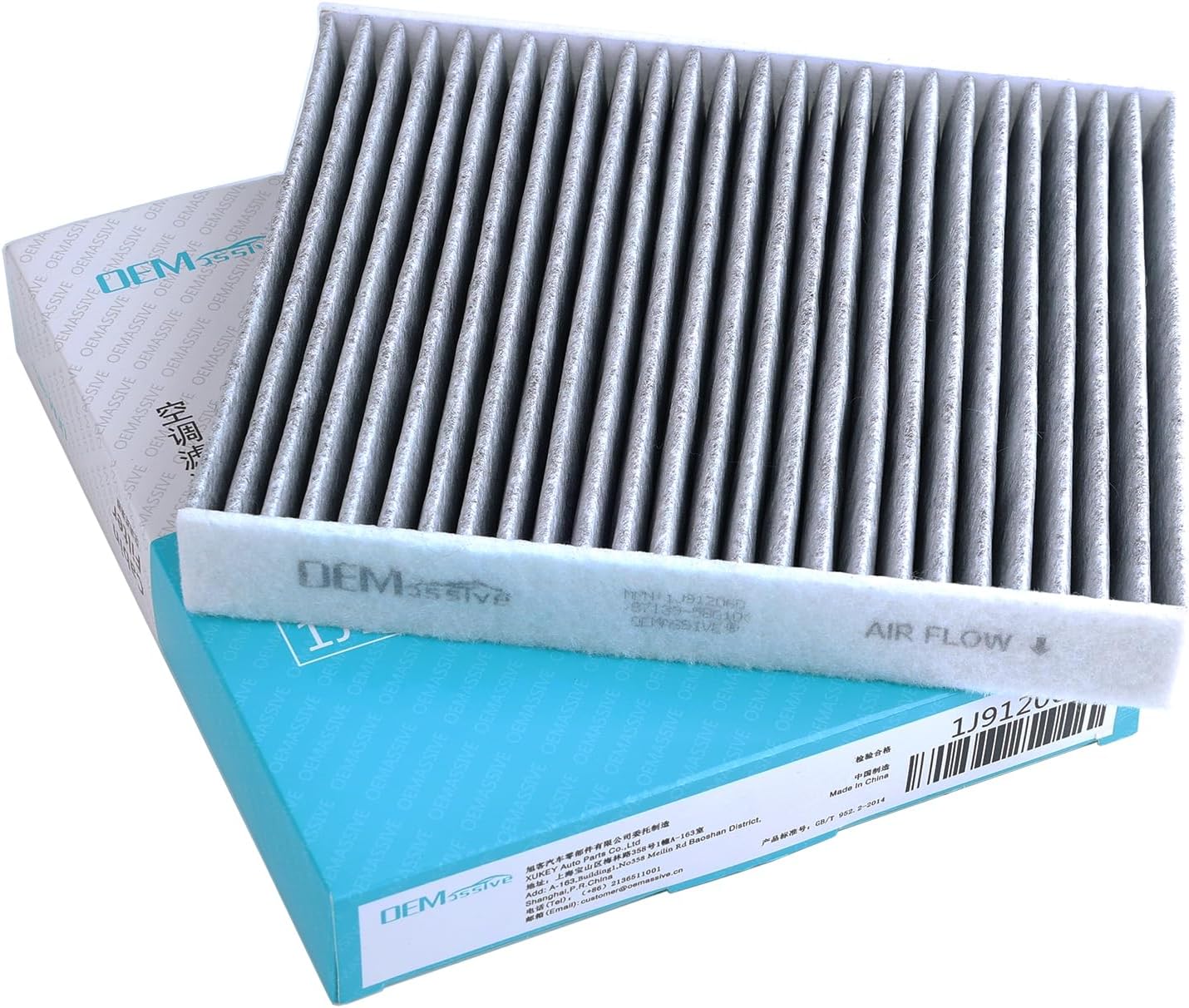

Image: The OEMASSIVE cabin air filter shown with an 'AIR FLOW' arrow, indicating the correct orientation for installation.

6. الصيانة

Regular replacement of your cabin air filter is essential for optimal performance and air quality.

• فترة الاستبدال الموصى بها: Change your vehicle's cabin air filter every 10,000 to 12,000 miles.
• Dusty/Humid Conditions: In environments with high dust, pollution, or humidity, it is recommended to replace the filter more frequently, typically every 5,000 to 6,000 miles.

Adhering to these intervals helps maintain efficient filtration and prevents excessive buildup of contaminants, which can restrict airflow and strain your HVAC system.

7. Troubleshooting: What Happens If You Don't Change Your Filter?

Neglecting to replace your cabin air filter can lead to several issues:

• انخفاض جودة الهواء: Increased exposure to dust, pollen, allergens, and pollutants inside the cabin.
• الروائح الكريهة: The activated carbon layer becomes saturated, leading to persistent stale or musty smells.
• Decreased Airflow: A clogged filter restricts air movement, reducing the effectiveness of your air conditioning and heating.
• Increased HVAC Strain: The blower motor has to work harder to push air through a dirty filter, potentially leading to premature wear and higher energy consumption.
• المخاوف الصحية: Poor cabin air quality can exacerbate allergies, asthma, and other respiratory issues for occupants.

Image: A visual comparison illustrating the difference between a new cabin air filter and one that has accumulated dirt and debris over time, highlighting the need for replacement.

8. المواصفات

Image: A diagram illustrating the precise dimensions of the cabin air filter: A=215mm/8.46inch, B=186mm/7.32inch, H=28mm/1.10inch.

9. معلومات الضمان

Specific warranty details for the OEMASSIVE CF12157 CP157 Cabin Air Filter are not explicitly provided in the product information. For comprehensive warranty terms and conditions, please refer to the official OEMASSIVE webالموقع أو اتصل بدعم العملاء مباشرة.

10. الدعم والاتصال

If you have any questions regarding the installation, compatibility, or performance of your OEMASSIVE Cabin Air Filter, please contact the manufacturer or retailer where the product was purchased.

For general inquiries or to find more information about OEMASSIVE products, visit the official OEMASSIVE brand store on Amazon: OEMASSIVE Store.
