Navia EN4T 3-in-1 Tower Air Cooler Fan User Manual

مقدمة

Thank you for choosing the Navia EN4T 3-in-1 Tower Air Cooler. This versatile appliance combines the functions of a fan, humidifier, and air cooler to provide a comfortable and refreshing environment. Designed for ease of use and efficiency, the EN4T features a slim, modern design and a convenient 4-liter removable water tank. Please read this manual carefully before operation to ensure proper use, maintenance, and optimal performance of your device.

تعليمات الإعداد

1. فك التعبئة: Carefully remove the air cooler from its packaging. Retain all packaging materials for future storage or transport.
2. الموقع: Place the unit on a firm, level surface. Ensure there is adequate space around the unit for proper airflow. The recommended dimensions for placement are approximately 24 cm (depth) x 24 cm (width) x 108 cm (height).
3. ملء خزان المياه: Pull out the removable 4-liter water tank from the bottom rear of the unit. Fill the tank with clean water. For enhanced cooling, you may add ice packs (included) to the water tank. Do not exceed the maximum fill line. Securely reinsert the water tank.
4. توصيل الطاقة: قم بتوصيل سلك الطاقة بمأخذ كهربائي قياسي. تأكد من مستوى الصوتtagيتوافق مع مواصفات الوحدة.

Image: Navia EN4T Tower Air Cooler with its dimensions (24cm D x 24cm W x 108cm H) clearly indicated.

الصورة: الجبهة view of the Navia EN4T Tower Air Cooler, showing the air outlet and water level indicator.

تعليمات التشغيل

The Navia EN4T can be operated using the control panel on top of the unit or the included remote control.

وظائف لوحة التحكم وجهاز التحكم عن بعد:

• زر الطاقة: اضغط لتشغيل أو إيقاف تشغيل الوحدة.
• زر الوضع: Cycle through the operating modes:
  • وضع المروحة: يعمل كمروحة عادية، حيث يقوم بتدوير الهواء بدون ماء.
  • وضع المرطب: Uses water from the tank to add moisture to the air.
  • Cooler Mode: Utilizes water and ice packs to provide evaporative cooling.
• زر السرعة: اضبط سرعة المروحة (منخفضة، متوسطة، عالية).
• زر التذبذب: قم بتفعيل أو تعطيل خاصية التذبذب بزاوية 80 درجة لتوزيع الهواء على نطاق أوسع.
• زر المؤقت: Set the operating time for automatic shut-off.
• زر الوضع الليلي: Activates a quiet, low-speed operation for minimal disturbance during sleep.
• وظيفة الأيون السالب: Activates the negative ion generator for improved air quality.

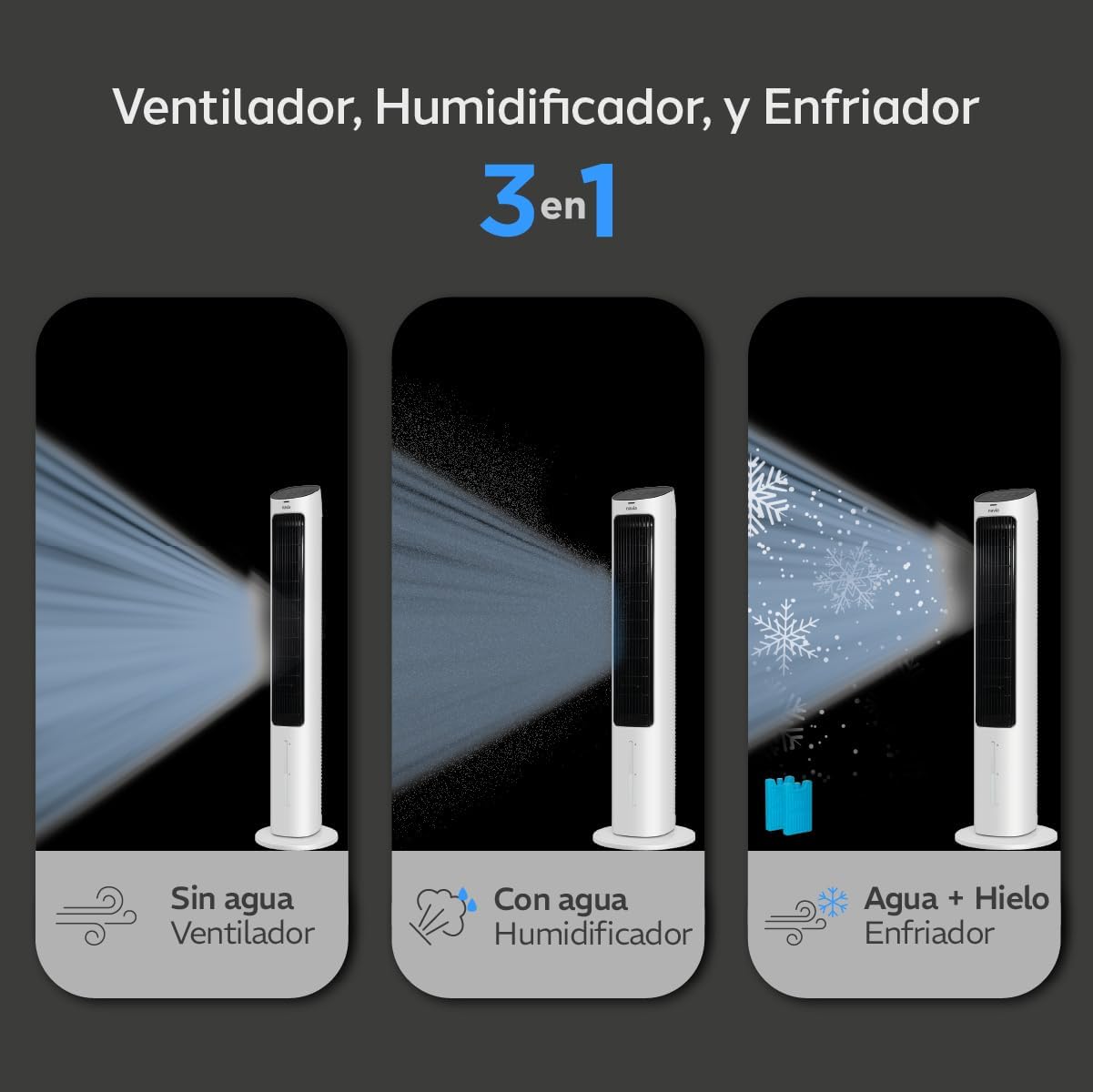

Image: Visual representation of the three operating modes: Fan (without water), Humidifier (with water), and Cooler (with water and ice).

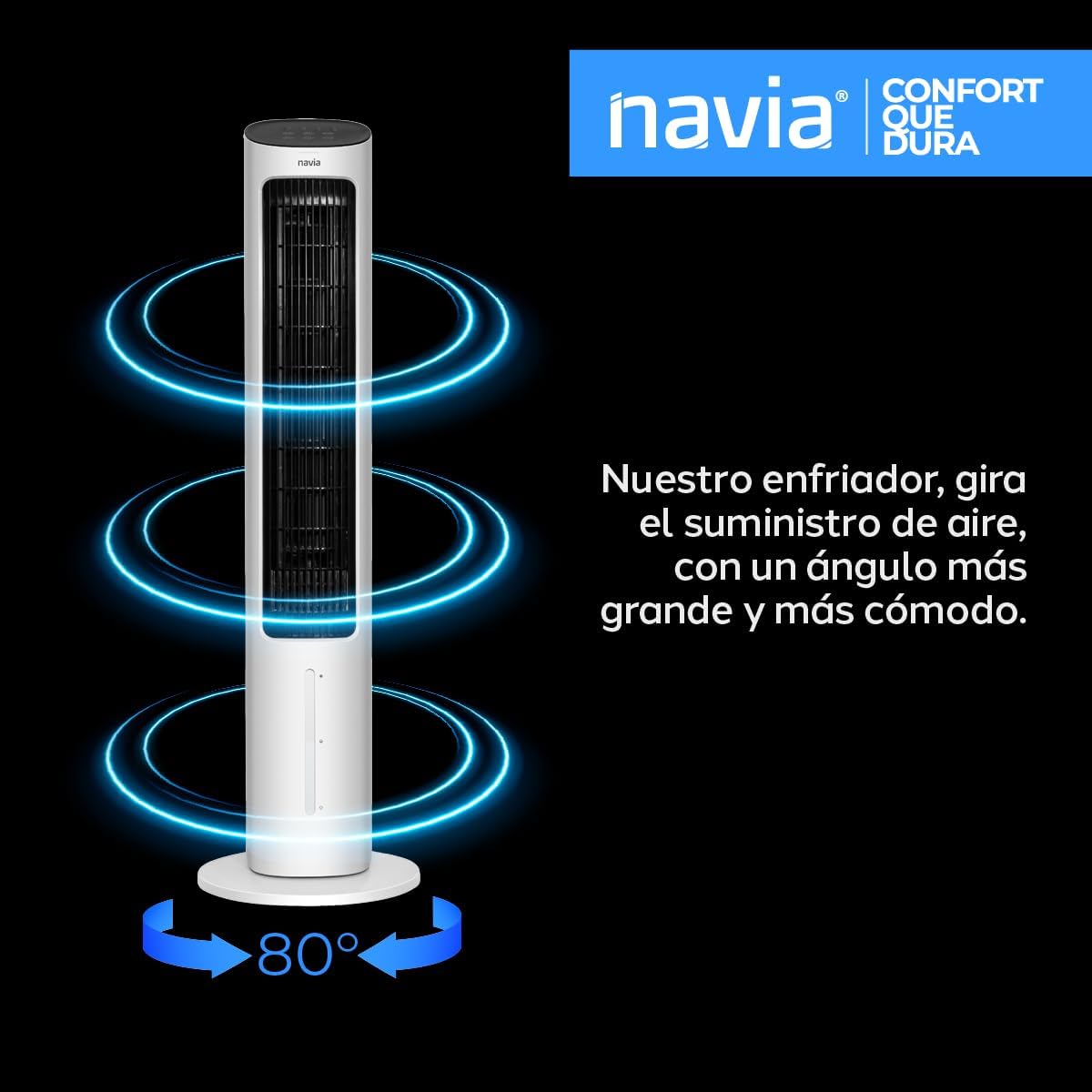

Image: The Navia EN4T air cooler illustrating its 80-degree oscillation capability for wide air distribution.

Image: The Navia EN4T air cooler positioned in a bedroom, highlighting its quiet 'Night Mode' for comfortable sleep.

Image: Key features of the Navia EN4T, including ice packs for cooling, humidifier function, and negative ion function.

صيانة

Regular maintenance ensures the longevity and efficient operation of your Navia EN4T air cooler.

• تنظيف خزان المياه: The 4-liter water tank is removable for easy cleaning. Regularly empty and clean the tank to prevent mold or mildew buildup. Use mild soap and water, then rinse thoroughly.
• التنظيف الخارجي: امسح الجزء الخارجي من الوحدة بقطعة قماش ناعمة دamp قطعة قماش. لا تستخدم منظفات أو مذيبات كاشطة. تأكد من فصل الجهاز عن الكهرباء قبل التنظيف.
• تخزين: If storing the unit for an extended period, ensure the water tank is empty and dry. Clean the unit thoroughly and store it in a cool, dry place, preferably in its original packaging.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your Navia EN4T, please refer to the following common problems and solutions:

• الوحدة لا تعمل:
  • تأكد من توصيل سلك الطاقة بشكل آمن بمأخذ كهربائي يعمل.
  • Ensure the power button on the unit or remote control has been pressed.
• No cooling effect in Cooler Mode:
  • Verify that the water tank is filled with water.
  • Ensure ice packs are placed in the water tank for optimal cooling.
  • Check if the unit is set to Cooler Mode.
• انخفاض تدفق الهواء:
  • Check if the air intake or outlet is obstructed.
  • قم بزيادة سرعة المروحة.
• ضجيج غير عادي:
  • تأكد من وضع الوحدة على سطح ثابت ومستو.
  • Check for any foreign objects inside the unit (unplug before inspecting).

إذا استمرت المشكلة بعد محاولة هذه الحلول، فيرجى الاتصال بدعم العملاء.

تحديد

معلومات الضمان

The Navia EN4T 3-in-1 Tower Air Cooler comes with a ضمان الشركة المصنعة لمدة عامين. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accident, unauthorized modification, or improper installation.

دعم العملاء

For technical assistance, warranty claims, or any questions regarding your Navia EN4T 3-in-1 Tower Air Cooler, please contact Navia customer support. Refer to the contact information provided with your product packaging or visit the official Navia webموقع للحصول على تفاصيل الدعم.
