Dapper Supply 24-inch Pressure Washer Surface Cleaner

1. المقدمة

This manual provides essential information for the safe and effective operation, assembly, maintenance, and troubleshooting of your Dapper Supply 24-inch Pressure Washer Surface Cleaner. Please read this manual thoroughly before use and retain it for future reference.

1.1 الاستخدام المقصود

The Dapper Supply 24-inch Pressure Washer Surface Cleaner is designed for cleaning large, flat surfaces such as driveways, patios, sidewalks, porches, and decks. It is compatible with most electric and gas pressure washers with a minimum of 2500 PSI and a maximum of 4350 PSI. This device is intended for outdoor use only.

2. معلومات السلامة

التزم دائمًا باحتياطات السلامة الأساسية عند استخدام هذا المنتج لتقليل خطر الإصابة أو التلف. قد يؤدي عدم اتباع هذه التعليمات إلى إصابات خطيرة أو أضرار في الممتلكات.

• اقرأ جميع التعليمات: Before operating the surface cleaner, read and understand all instructions in this manual and the pressure washer manual.
• ارتدِ معدات الحماية الشخصية المناسبة: Always wear eye protection (safety glasses or goggles), hearing protection, and protective footwear. Long pants and sleeves are recommended.
• Maintain a secure grip: Always hold the pressure washer gun firmly with both hands during operation.
• إبعاد المارة: Ensure children and pets are kept at a safe distance from the work area.
• التحقق من الاتصالات: Before each use, ensure all hose connections are secure and leak-free. Use Teflon tape on threaded connections as needed.
• ضغط التشغيل: Do not exceed the maximum rated pressure of 4350 PSI for this surface cleaner. Using a pressure washer with higher PSI can damage the unit and void the warranty.
• Surface suitability: Be aware of the surface you are cleaning. Some delicate surfaces may be damaged by high-pressure washing. Test a small, inconspicuous area first.
• السلامة الكهربائية: If using an electric pressure washer, ensure it is connected to a properly grounded outlet and follow all electrical safety guidelines provided with your pressure washer.
• المواد الكيميائية: If using cleaning detergents, follow the manufacturer's instructions for safe handling and application.

3. محتويات العبوة

Verify that all items are present and undamaged upon opening the package. If any parts are missing or damaged, contact Dapper Supply customer service.

• 24-inch Surface Cleaner Head with Wheels
• Adjustable Handle Assembly (multiple sections)
• بندقية غسيل الضغط
• High-Pressure Hose (connecting gun to surface cleaner head)
• 3/8" Quick Connect (QC) Inlet
• 1/4" QC Adapter
• شريط التيفلون
• Retaining Pins for Handle

4. تعليمات التجميع

Follow these steps to assemble your Dapper Supply 24-inch Pressure Washer Surface Cleaner.

1. Prepare the Surface Cleaner Head: Locate the central inlet on the surface cleaner head. Apply Teflon tape to the threads of the 3/8" QC inlet adapter. Screw the adapter firmly into the central inlet of the surface cleaner head.
2. Attach the Handle to the Head: Align the handle assembly with the mounting brackets on the surface cleaner head. Insert the handle ends into the brackets and secure them with the provided retaining pins. Ensure the pins are fully inserted and locked.
3. Assemble the Handle Sections: Connect the upper and lower sections of the handle assembly. Ensure the spring-loaded buttons snap into place, securing the sections.
4. توصيل خرطوم الضغط العالي: Attach one end of the high-pressure hose to the 3/8" QC inlet on the surface cleaner head. Ensure it clicks securely into place.
5. Connect Pressure Washer Gun: Attach the other end of the high-pressure hose to the inlet of the pressure washer gun. Ensure it clicks securely into place.
6. الاتصال بغسالة الضغط: Connect the pressure washer gun to your pressure washer's high-pressure outlet. Use the appropriate adapter (3/8" QC or 1/4" QC) if necessary, applying Teflon tape to threaded connections.

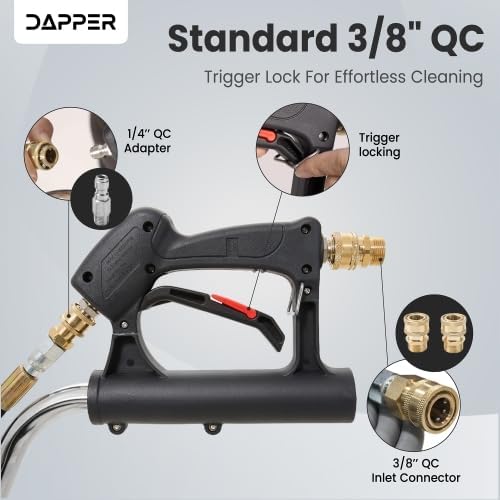

صورة: This image shows the standard 3/8" Quick Connect (QC) inlet and the trigger lock mechanism on the pressure washer gun, highlighting key connection points for assembly.

صورة: تفصيلية view of the quick connect fitting where the high-pressure hose attaches to the surface cleaner head, ensuring a secure connection.

5. تعليمات التشغيل

Proper operation ensures efficient cleaning and prolongs the life of your surface cleaner.

1. إعداد المنطقة: Clear the surface of any loose debris, rocks, or large objects that could interfere with the cleaning process or damage the nozzles.
2. ربط إمدادات المياه: قم بتوصيل غسالة الضغط الخاصة بك بمصدر مياه مناسب.
3. بدء تشغيل غسالة الضغط: Turn on the water supply and start your pressure washer according to its manufacturer's instructions.
4. Engage the Surface Cleaner: Hold the pressure washer gun firmly. Release the trigger lock (if engaged) and squeeze the trigger to start the water flow. The dual rotating nozzles inside the surface cleaner head will begin to spin.
5. ابدأ التنظيف: Slowly walk behind the surface cleaner, guiding it over the surface to be cleaned. The 360° caster wheels allow for smooth movement. Overlap each pass slightly to ensure even cleaning and prevent streaking.
6. Adjust Handle Angle: The adjustable handle allows you to set a comfortable working height and angle, reducing strain during prolonged use.
7. الحفاظ على سرعة ثابتة: Moving too quickly may result in uneven cleaning, while moving too slowly may cause damage to the surface or leave swirl marks. Maintain a consistent, moderate pace.
8. تشغيل بدون رذاذ: The circular brush skirt around the cleaning head helps contain water spray and debris, ensuring a cleaner and safer workspace.
9. الانتهاء من التنظيف: Once the area is clean, release the trigger on the pressure washer gun. Engage the trigger lock for safety. Turn off your pressure washer and then the water supply.

صورة: This diagram highlights the efficient rotating jet nozzles that blast away dirt and grime, along with the 360-degree rotating wheels for smooth maneuverability and the flexible bristle skirt to prevent splashing.

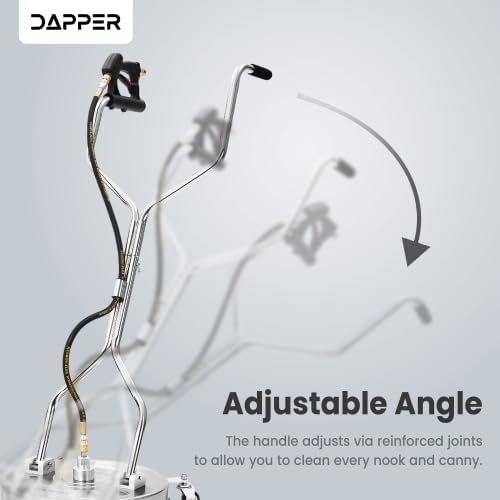

صورة: جانب view illustrating the adjustable angle feature of the handle, which can be modified via reinforced joints for ergonomic use and reaching various areas.

6. الصيانة

Regular maintenance ensures optimal performance and extends the lifespan of your surface cleaner.

• بعد كل استخدام: Flush the surface cleaner with clean water to remove any detergent residue or debris.
• تنظيف الفوهة: Periodically check the nozzles for clogs. If a nozzle is clogged, use a small wire or nozzle cleaning tool (often supplied with pressure washers) to clear the obstruction.
• فحص تنورة الفرشاة: Inspect the circular brush skirt for wear or damage. Replace if necessary to maintain splash-free operation.
• فحص العجلات: Check the 360° caster wheels for smooth rotation and ensure they are free of debris.
• تخزين: Store the surface cleaner in a clean, dry, and frost-free environment. Disconnect all hoses and drain any remaining water from the unit to prevent freezing damage.
• تشحيم: No specific lubrication is required for the rotating mechanism under normal use.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your surface cleaner, refer to the following common problems and solutions.

If the problem persists after attempting these solutions, please contact Dapper Supply customer support.

8. المواصفات

9. الضمان والدعم

Your Dapper Supply 24-inch Pressure Washer Surface Cleaner is backed by a ضمان لمدة سنتين من تاريخ الشراء. يغطي هذا الضمان عيوب المواد والصناعة في ظل الاستخدام العادي.

For warranty claims, technical assistance, or to inquire about replacement parts, please contact Dapper Supply customer service. Keep your proof of purchase for warranty validation.

معلومات الاتصال: Refer to the Dapper Supply webللحصول على أحدث تفاصيل الاتصال بدعم العملاء، يرجى زيارة الموقع الإلكتروني أو الاطلاع على وثائق الشراء الخاصة بك.
