TERRAlife Hyperion 24 Dual-Mount Granite Composite Single Bowl Kitchen Sink

مقدمة

This manual provides comprehensive instructions for the installation, operation, and maintenance of your TERRAlife Hyperion 24 Dual-Mount Granite Composite Single Bowl Kitchen Sink. Please read all instructions carefully before beginning installation or use to ensure proper function and longevity of your product.

The TERRAlife Hyperion 24 sink is crafted from a durable granite composite material, designed for resilience and ease of care in your kitchen environment. It features a dual-mount design, allowing for both undermount and drop-in installation.

معلومات السلامة

• ارتدِ دائمًا معدات الحماية الشخصية المناسبة (PPE) مثل نظارات الأمان والقفازات أثناء التثبيت.
• تأكد من اتباع جميع قوانين السباكة والبناء المحلية أثناء التركيب.
• Turn off the water supply before beginning any plumbing work.
• Handle the sink with care to avoid damage or injury. The sink is heavy; use proper lifting techniques or seek assistance.
• Do not use harsh chemicals or abrasive cleaners on the sink surface, as this may damage the finish.

ما هو المشمول

تأكد من وجود كافة المكونات قبل البدء في التثبيت.

• TERRAlife Hyperion 24 Granite Composite Sink
• Chrome Finished Stainless Steel Basket Strainer
• Installation Hardware (clips for drop-in, mounting adhesive for undermount - check packaging for specifics)

Image: The TERRAlife Hyperion 24 sink shown with the included chrome basket strainer.

الأبعاد والمتطلبات

Understanding the sink's dimensions and cabinet requirements is crucial for proper installation.

• الأبعاد الخارجية: 24" (W) x 20" (D) x 8" (H) (609mm x 558mm x 203mm)
• الأبعاد الداخلية: 20.87" (W) x 15.9" (D) x 7.25" (H) (530mm x 405mm x 184mm)
• Minimum Cabinet Base: Requires a 27-inch wide cabinet base or larger.

Image: Detailed diagram illustrating the external and internal measurements of the sink.

Image: The sink installed in a countertop, emphasizing the requirement for a 27-inch or wider cabinet base.

سمات

• مادة: Composite made from fine quartz sand and luxury resin for enhanced durability.
• متانة: Resists impact damage, chipping, and scratches.
• مقاومة الحرارة: Safe up to 535° Fahrenheit (279° Celsius).
• Stain & Scratch Resistant: Non-porous surface for easy cleaning and resistance to staining.
• Color Safe: Finish and gloss remain stable, unaffected by time or sun damage.
• الصوت دampإنينغ: Solid wall construction reduces noise and echoing for a quieter experience.
• Food Grade Safe: Made from 100% organic and natural materials.
• Easy Drain: Softly sloping surfaces facilitate efficient water flow.
• Deep & Big Basins: Deeper bowls with solid walls for roomier basins.

Image: Visual representation of the sink's extreme durability, highlighting resistance to scratches, heat, UV, and stains.

Image: Visual representation of the sink's easy care and safety attributes, such as food-safe surfaces, efficient drainage, sound dampening, and spacious basins.

الإعداد والتثبيت

1. Choose Installation Type: Dual-Mount

The Hyperion 24 sink supports two installation methods: Drop-In (top-mount) and Undermount. Select the method appropriate for your countertop and cabinet.

الصورة: السابقamples of the sink installed as a Drop-In (top-mount) and Undermount, demonstrating the dual-mount capability.

2. تحضير سطح العمل

• For Drop-In installation, use the provided template (if included, otherwise measure carefully) to cut the opening in your countertop. Ensure the opening is slightly smaller than the sink's rim.
• For Undermount installation, the countertop opening should match the inner dimensions of the sink bowl. Professional installation is recommended for undermount cuts.
• Ensure the countertop surface is clean and dry before proceeding.

3. Faucet and Accessory Installation (Customizable Faucet Deck)

The sink features a customizable faucet deck. A center hole is pre-drilled for a single-hole faucet. Additional faucet holes are pre-scored from the bottom of the sink and can be drilled as needed for accessories like soap dispensers or air gaps.

• Identify the desired locations for additional holes.
• Using a suitable drill bit (e.g., diamond-tipped hole saw) and following manufacturer guidelines, carefully drill through the pre-scored areas from the underside of the sink.
• Install your faucet and other accessories according to their respective manufacturer instructions.

Image: Illustration of the sink's customizable faucet deck, indicating the pre-drilled center hole and pre-scored locations for additional holes.

4. Sink Placement and Sealing

• Apply a bead of silicone sealant around the edge of the countertop opening (for drop-in) or the top edge of the sink (for undermount).
• Carefully lower the sink into the opening (drop-in) or lift it into place against the underside of the countertop (undermount).
• Secure the sink using the provided mounting clips (for drop-in) or appropriate undermount clips/adhesive (for undermount). Tighten fasteners evenly until snug, but do not overtighten.
• Wipe away any excess sealant immediately.

5. Drain Assembly

• Install the included chrome basket strainer according to its specific instructions. Ensure a watertight seal using plumber's putty or silicone sealant as directed.
• Connect your P-trap and drain lines to the basket strainer, ensuring all connections are tight and leak-free.
• The sink is safe for use with high-capacity garbage disposals. If installing a disposal, follow the disposal manufacturer's instructions for attachment to the sink flange.

6. توصيل إمدادات المياه

• Connect the hot and cold water supply lines to your faucet.
• Turn on the water supply and check for any leaks at all connections. Tighten as necessary.

تعليمات التشغيل

Your TERRAlife Hyperion 24 sink is designed for everyday kitchen use. Operate your faucet as per its manufacturer's instructions. The sink's durable surface is suitable for various kitchen tasks, including food preparation and dishwashing.

• درجة حرارة: The sink is heat safe up to 535°F, allowing for direct placement of hot pots and pans.
• Disposal Use: If a garbage disposal is installed, operate it according to its manufacturer's guidelines. The sink's sound-absorbing properties help minimize disposal noise.
• الصرف الصحي: The softly sloping basin ensures efficient water drainage.

الصيانة والعناية

Proper care will help maintain the appearance and performance of your granite composite sink.

• التنظيف اليومي: Clean daily with a soft cloth or sponge and mild dish soap. Rinse thoroughly with water and wipe dry to prevent water spots.
• إزالة البقع: For stubborn stains, use a non-abrasive cleaner specifically designed for granite composite sinks. Avoid abrasive pads or harsh chemicals like bleach, ammonia, or strong acids, as these can damage the surface.
• منع ظهور بقع الماء: Wipe the sink dry after each use, especially in hard water areas, to prevent mineral buildup.
• حرارة: While the sink is heat resistant, avoid placing extremely hot items directly on the surface for extended periods without protection.
• الخدوش: The sink is scratch-resistant, but using cutting boards for food preparation is always recommended to protect both the sink and your knives.

استكشاف الأخطاء وإصلاحها

تحديد

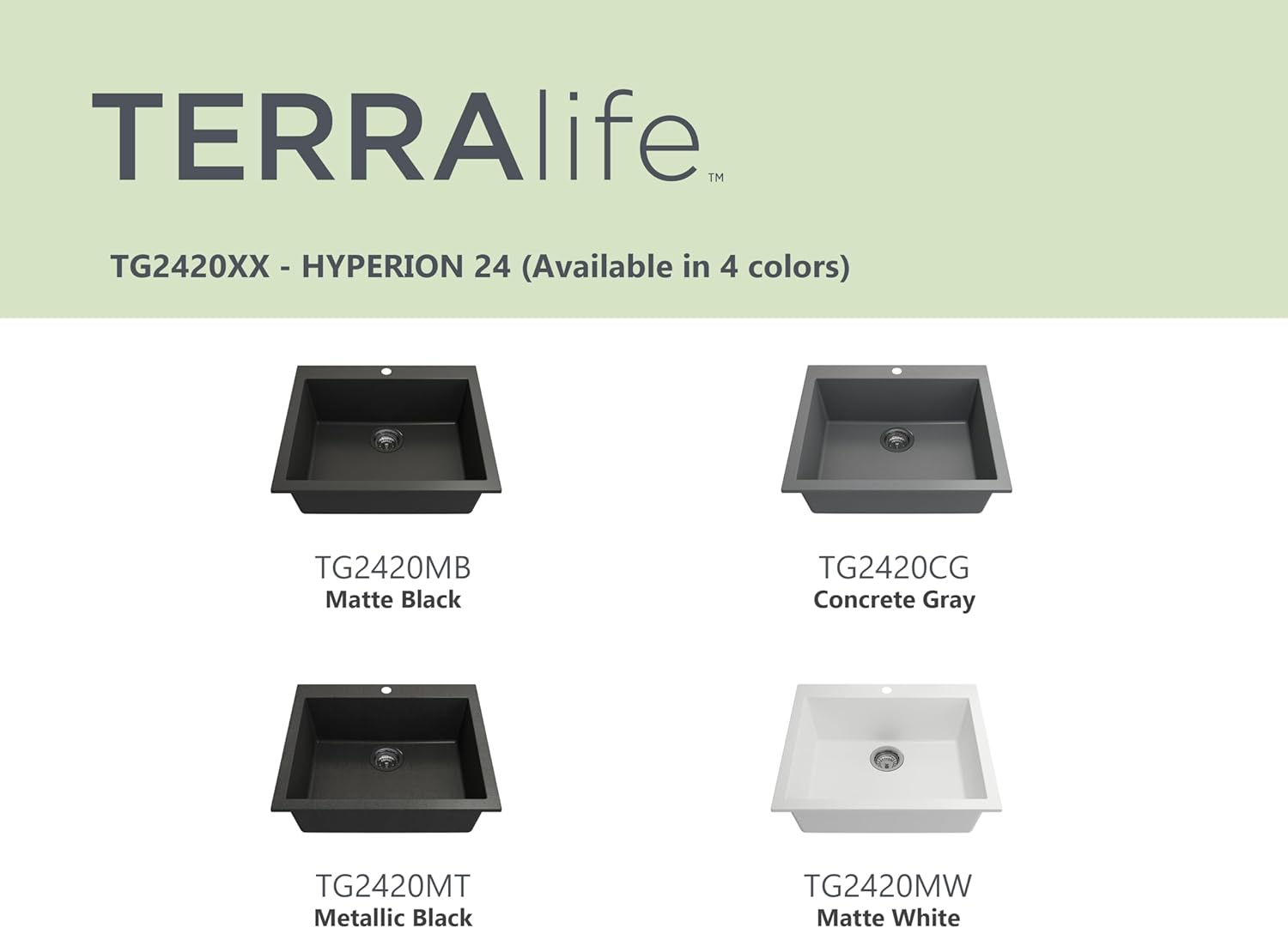

Image: The Hyperion 24 sink is available in multiple colors, including the Concrete Gray (TG2420CG) model.

الضمان والدعم

For warranty information or technical support, please refer to the TERRAlife official webالموقع أو تواصل مع قسم خدمة العملاء. احتفظ بإيصال الشراء كإثبات للشراء.

الشركة المصنعة: تيرا لايف

Webموقع: Visit the TERRAlife Store on Amazon
