Generic JBD 8S-24S, 100A Smart BMS User Manual

1. المقدمة

This manual provides essential information for the safe and effective use of the Generic JBD 8S-24S, 100A Smart Battery Management System (BMS). This BMS is designed for LiFePO4 and LFP prismatic battery packs, supporting configurations from 8S to 24S (24V to 72V) with a continuous discharge current of up to 100 Amperes and a charge current of up to 50 Amperes. It features an active balancer and Bluetooth connectivity for monitoring and control.

The Smart BMS protects your battery pack from overcharge, over-discharge, overcurrent, and over-temperature conditions, ensuring optimal performance and extending battery life.

2. معلومات السلامة

WARNING: Improper installation or use can lead to serious injury, fire, or damage to the battery pack and BMS. Always follow safety guidelines.

• ارتفاع حجمtagالبريد والحالية: Battery packs operate at high voltages and currents. Exercise extreme caution to avoid short circuits.
• التثبيت الاحترافي: Installation should be performed by qualified personnel with experience in battery systems.
• العزل: Ensure all connections are properly insulated to prevent accidental contact.
• تهوية: Install the BMS in a well-ventilated area.
• الماء والرطوبة: Keep the BMS dry and away from water or high humidity.
• القطبية الصحيحة: Always connect wires with correct polarity. Reversing polarity can cause irreversible damage.
• معدات الحماية: ارتدِ معدات الحماية الشخصية المناسبة، بما في ذلك القفازات المعزولة وحماية العين.

3. محتويات العبوة

تأكد من وجود جميع العناصر في العبوة:

• JBD Smart BMS Unit
• Balance Connector Wires (P- and B- leads)
• NTC Temperature Sensors
• Bluetooth Module (or communication module)
• مفتاح خارجي

Figure 3.1: JBD Smart BMS unit with included balance wires, NTC sensors, and switch.

4. الإعداد والتثبيت

Follow these steps carefully for proper installation of the BMS. Refer to the wiring diagrams provided with your specific unit for exact pinouts.

1. قم بتجهيز حزمة البطارية: Ensure your LiFePO4/LFP battery cells are balanced and at a safe voltage level before connecting the BMS.
2. توصيل أسلاك التوازن:
   • Start by connecting the B- (negative) wire of the balance harness to the negative terminal of the first cell (Cell 1).
   • Connect the next wire to the positive terminal of Cell 1 (which is also the negative of Cell 2), and continue this sequence until all cell positive terminals are connected to the corresponding balance wires.
   • Ensure the last balance wire connects to the positive terminal of the last cell (Cell N).
   • تحقق مرة أخرى من المجلدtage of each balance wire against the B- terminal to confirm correct sequencing. The voltage should increase incrementally.
3. Connect Balance Harness to BMS: Once all balance wires are connected to the battery cells and verified, plug the balance harness connector into the designated port on the BMS.
4. Connect NTC Temperature Sensors: Attach the NTC sensors to appropriate locations on the battery pack to monitor cell temperatures. Plug the sensor wires into the NTC ports on the BMS.
5. Connect Main Power Wires:
   • قم بتوصيل الرئيسي B- (Battery Negative) wire from the battery pack's overall negative terminal to the B- terminal on the BMS.
   • قم بتوصيل الرئيسي P- (Load/Charge Negative) wire from the BMS to your load/charger negative terminal. The battery pack's overall positive terminal connects directly to the load/charger positive terminal, bypassing the BMS.
6. Connect External Switch: If your BMS includes an external switch, connect it to the designated switch port. This switch can be used to activate/deactivate the BMS.
7. Connect Bluetooth Module: Plug the Bluetooth module into its dedicated port on the BMS.

Figure 4.1: JBD Smart BMS with balance wires, NTC sensors, and main power connections.

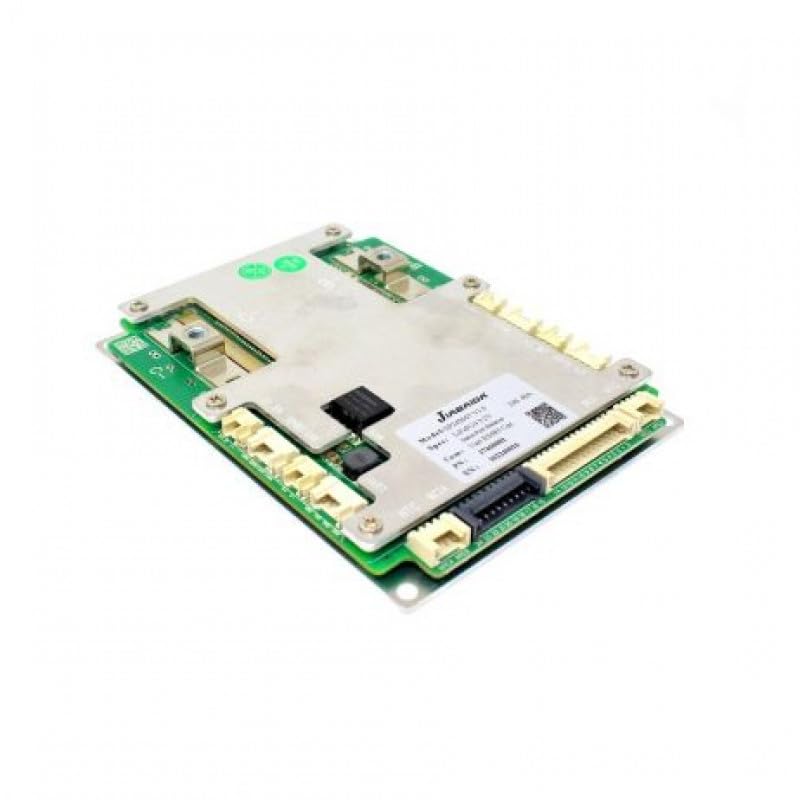

الشكل 4.2: الصورة عن قرب view of the JBD Smart BMS board, showing connection points.

5. تعليمات التشغيل

The JBD Smart BMS utilizes Bluetooth connectivity for monitoring and configuration via a dedicated mobile application.

1. تنزيل التطبيق: بحث عن the official JBD BMS application on your smartphone's app store (e.g., "Xiaoxiang BMS" or similar, as specified by the manufacturer).
2. الاتصال عبر البلوتوث:
   • تأكد من تمكين Bluetooth على هاتفك الذكي.
   • Open the JBD BMS app. The app should automatically scan for nearby BMS devices.
   • Select your BMS from the list of available devices. You may need to enter a default password (refer to the app's instructions or manufacturer documentation).
3. مراقبة حالة البطارية: Once connected, the app will display real-time data, including:
   • الحجم الإجمالي لحزمة البطاريةtage
   • خلية فردية المجلدtages
   • تيار الشحن / التفريغ
   • Battery temperature (from NTC sensors)
   • الدولة المسؤول (SOC)
   • BMS status (protection triggers, balancing status)
4. التوازن النشط: The BMS features an active balancer to equalize cell voltages. This process typically occurs automatically when cell voltage differences exceed a set threshold. You can monitor the balancing status through the app.
5. Configuration (Advanced Users): The app may allow configuration of various parameters such as over-voltagه ، تحت المجلدtage, overcurrent thresholds, and temperature limits. Exercise extreme caution when modifying these settings, as incorrect values can damage the battery or BMS.

6. الصيانة

Regular maintenance ensures the longevity and reliable operation of your BMS and battery pack.

• التفتيش البصري: قم بفحص نظام إدارة المباني (BMS) وجميع الأسلاك بشكل دوري بحثًا عن أي علامات تلف أو تآكل أو وصلات مفكوكة.
• نظافة: حافظ على وحدة إدارة المباني نظيفة وخالية من الغبار والشوائب. استخدم قطعة قماش جافة وناعمة للتنظيف.
• الظروف البيئية: Ensure the BMS operates within its specified temperature and humidity ranges. Avoid extreme conditions.
• تحديثات البرامج الثابتة: تحقق من الشركة المصنعة website or app for any available firmware updates for the BMS. Follow update instructions carefully.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your JBD Smart BMS, refer to the following common problems and solutions:

• نظام إدارة المباني لا يعمل:
  • Check all main power connections (B- and P-) for secure contact and correct polarity.
  • Verify the battery pack voltage is within the BMS operating range.
  • Ensure the external switch (if present) is in the 'ON' position.
• لا يوجد اتصال بلوتوث:
  • Confirm the Bluetooth module is correctly plugged into the BMS.
  • Ensure Bluetooth is enabled on your smartphone and the app has necessary permissions.
  • حاول إعادة تشغيل التطبيق أو هاتفك.
  • Move closer to the BMS unit.
• حجم غير صحيحtagقراءات:
  • Recheck all balance wire connections to ensure they are in the correct sequence and securely attached to each cell.
  • Inspect balance wires for damage or breaks.
• BMS Triggering Protection (e.g., Over-discharge, Overcurrent):
  • Identify the specific protection triggered via the app.
  • الإفراط في التفريغ: أعد شحن البطارية.
  • زيادة التيار: Reduce the load or check for short circuits in the system. Ensure your load does not exceed the BMS's continuous current rating.
  • أكثر من المجلدtagه / تحت المجلدtage: Check charger settings and cell balance.
  • الإفراط في درجة الحرارة: Ensure adequate ventilation and check NTC sensor placement.

If problems persist after attempting these solutions, contact technical support.

8. المواصفات

Figure 8.1: JBD Smart BMS board showing model and specification details.

9. معلومات الضمان

This product is sold without an explicit warranty. Please refer to your point of purchase for any return or exchange policies.

10. الدعم

For technical assistance or inquiries, please contact:

OLEIO SHOPZ
الهاتف: 8137035522
