GAOMON Queen Size Floating Bed Frame with RGB LED Lights and Adjustable Headboard Instruction Manual

1. المقدمة

This manual provides detailed instructions for the assembly, operation, and maintenance of your GAOMON Queen Size Floating Bed Frame with RGB LED Lights and Adjustable Headboard. Please read this manual thoroughly before beginning assembly or use to ensure proper setup and safe operation. Keep this manual for future reference.

The GAOMON bed frame features a robust metal structure, an upholstered adjustable headboard, and integrated RGB LED lighting to enhance your bedroom environment.

2. معلومات السلامة

تعليمات السلامة الهامة:

• اتبع دائمًا تعليمات التجميع بعناية لمنع عدم الاستقرار أو الانهيار.
• Be cautious when adjusting the headboard height to avoid injury.
• Do not exceed the maximum weight capacity of the bed frame to ensure stability and safety. The bed frame itself weighs approximately 90.4 pounds.
• Ensure all connections are secure before use. Periodically check and tighten all bolts and screws.
• احتفظ بالأجزاء الصغيرة ومواد التغليف بعيدًا عن متناول الأطفال لتجنب مخاطر الاختناق.
• Ensure the power supply for the LED lights is properly connected and routed to avoid tripping hazards or damage.

3. محتويات العبوة

Before assembly, verify that all components are present. Refer to the parts list provided in your packaging. Typical components include:

• Headboard (Upholstered with LED strip)
• القضبان الجانبية (اليسار واليمين)
• مسند
• عوارض الدعم المركزية
• دعم الساقين
• Slats (Metal or Wood)
• Hardware Pack (Screws, bolts, washers, Allen wrench)
• LED Light Remote Control (if applicable)
• محول طاقة لمصابيح LED

إذا كان هناك أي أجزاء مفقودة أو تالفة، يرجى الاتصال بخدمة دعم العملاء.

4. تعليمات التجميع

Assembly typically requires two adults. Follow the numbered steps in your included instruction booklet. A general overview of the assembly process is provided below.

4.1 فك العبوة والتحضير

1. Carefully unpack all components from the boxes.
2. Lay out all parts on a clean, soft surface (like a rug or blanket) to prevent scratches.
3. Identify all hardware and tools. Ensure you have the necessary Allen wrench (usually included).

صورة: Diagram showing the dimensions of the GAOMON Queen Size Floating Bed Frame (81.9"L x 64"W x 41.7"H) and its components, including the headboard height and frame height.

4.2 تجميع الإطار

1. قم بتثبيت القضبان الجانبية على اللوح الأمامي واللوح السفلي باستخدام البراغي والحلقات المرفقة. لا تقم بربط البراغي بإحكام حتى يتم تجميع الإطار بالكامل.
2. Install the center support beam(s) and attach the support legs. Ensure all legs are securely fastened and evenly distributed.
3. Place the slats onto the frame. Many designs feature hook-and-loop fasteners or plastic caps for easy and secure attachment. Ensure slats are evenly spaced and secured to prevent mattress sagging.
4. Once the main frame and slats are in place, fully tighten all bolts and screws.

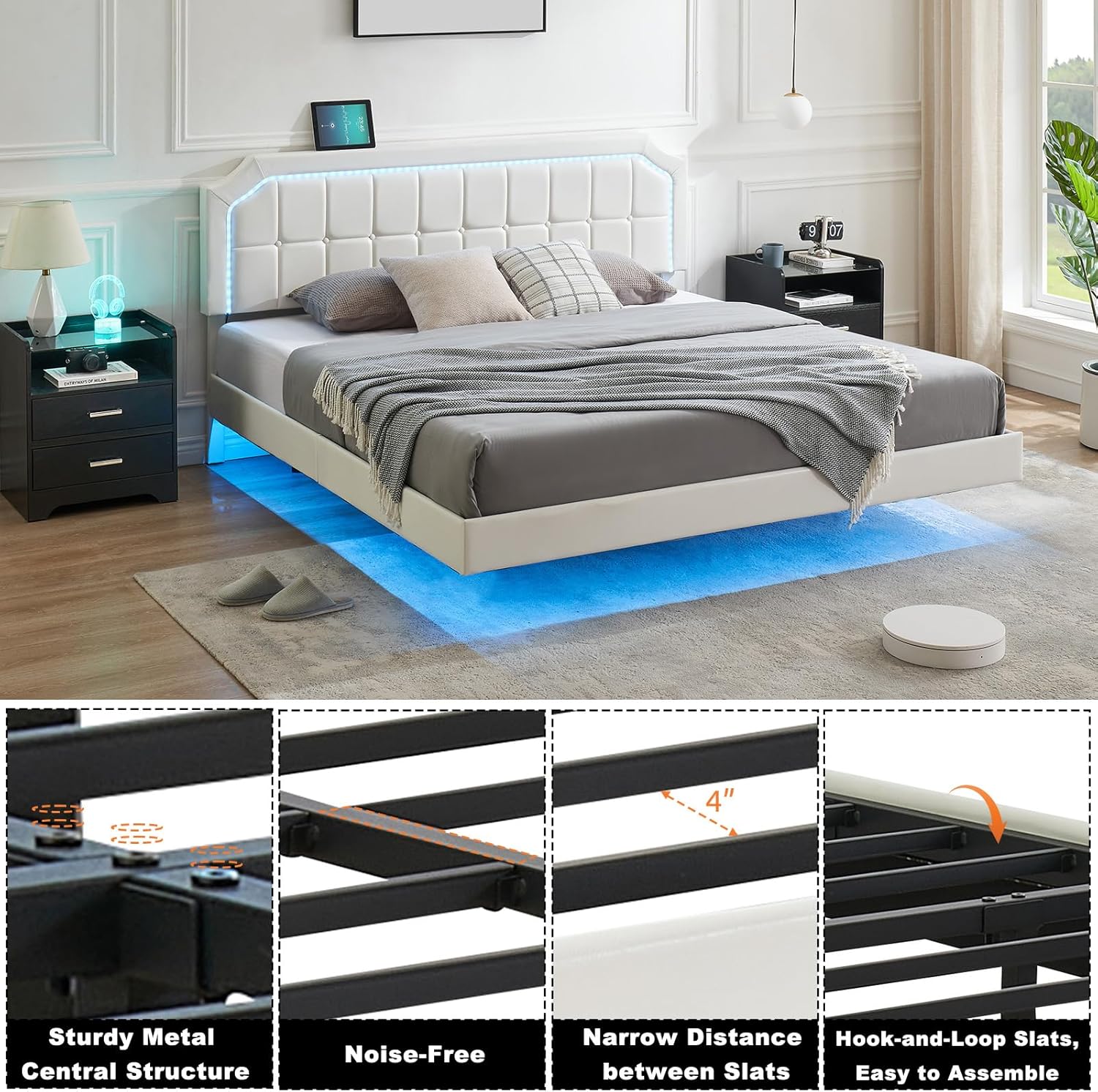

صورة: عن قرب views illustrating the sturdy metal central structure, noise-free design, narrow distance between slats (4 inches), and hook-and-loop slats for easy assembly of the GAOMON bed frame.

4.3 Headboard and LED Installation

1. The upholstered headboard is designed to be adjustable. Follow the specific instructions to set your desired height (typically between 40 to 48 inches).
2. Connect the LED light strip power cable to the provided power adapter. Route the cable safely to an electrical outlet, avoiding tripping hazards.

صورة: Illustration showing the adjustable height feature of the headboard, ranging from 40 to 48 inches, with a recommendation for mattresses between 6 and 14 inches thick.

4.4 فيديو التجميع

5. تعليمات التشغيل

5.1 مصابيح LED RGB

The integrated RGB LED lights can be controlled via a remote control or a dedicated mobile application (if specified in your product documentation).

• تشغيل/إيقاف التشغيل: استخدم زر الطاقة الموجود على جهاز التحكم عن بعد أو التطبيق لتشغيل الأضواء أو إطفائها.
• اختيار اللون: Choose from over 60,000 colors using the color wheel or preset color buttons.
• ضبط السطوع: زيادة أو تقليل شدة الإضاءة.
• الأوضاع الديناميكية: Select various lighting effects such as fading, strobing, or smooth transitions.
• وضع الموسيقى: The lights can synchronize with music or sounds detected by a built-in microphone (if available).
• وظيفة التوقيت: اضبط مؤقتات لتشغيل وإطفاء الأضواء تلقائيًا.

صورة: Visual representation of the GAOMON floating bed frame with LED lights, highlighting features such as over 60,000 colors, mic mode, music mode, timing function, dynamic modes, and control via a mobile application.

صورة: A split image demonstrating the visual effect of the GAOMON bed frame's LED lights in both daytime and nighttime settings, showcasing the ambient glow.

5.2 لوح رأس قابل للتعديل

The headboard height can be adjusted to accommodate different mattress thicknesses and personal preferences. Refer to your specific assembly instructions for the exact mechanism. Typically, this involves loosening and re-tightening bolts at the headboard connection points to raise or lower it within the 40 to 48-inch range.

6. الصيانة

6.1 التنظيف

• لوح رأس سرير مُنجّد: امسح بالإعلانamp cloth and mild soap. Avoid harsh chemicals. For spills, blot immediately with a clean, dry cloth.
• اطار معدني: Wipe down with a soft, dry cloth. For stubborn marks, use a slightly damp قطعة قماش وتجفف جيدا.
• أضواء LED: Gently wipe the LED strip with a dry, soft cloth to remove dust. Ensure the power is off before cleaning.

صورة: Close-up details of the modern upholstered headboard, showcasing soft-touch leather, button tufting, and an icon indicating easy cleaning with a cloth.

6.2 الشيكات المنتظمة

Periodically inspect all bolts and screws to ensure they remain tight. Re-tighten as necessary to maintain the bed frame's stability and prevent squeaking.

7. استكشاف الأخطاء وإصلاحها

8. المواصفات

9. دعم العملاء

For any questions, missing parts, or assistance with assembly or operation, please contact GAOMON customer service. Refer to your product packaging or purchase documentation for specific contact details.

We are committed to providing support and ensuring your satisfaction with your GAOMON product.
