مقدمة
Thank you for choosing the Buinblu Foldable Full Size 88 Key Digital Piano. This manual provides essential information for the proper setup, operation, and maintenance of your instrument. Please read it thoroughly before use to ensure optimal performance and longevity.
ماذا يوجد في الصندوق
تأكد من وجود جميع المكونات عند إخراج المنتج من العلبة:
- Buinblu 88-Key Digital Piano
- محول الطاقة
- دواسة الاستدامة
- حامل نوتة موسيقية
- Sticker (for key labeling)
- حقيبة الحمل
- Type-C Adapter Cable
Image: All included accessories with the Buinblu 88-Key Digital Piano, neatly laid out.
يثبت
تتكشف البيانو
- Place the folded piano on a flat, stable surface.
- Locate the folding mechanism latch, typically on the underside or side of the hinge.
- Carefully release the latch and unfold the two sections of the keyboard until they are fully extended and locked into place. Ensure the locking mechanism is secure to prevent accidental folding during use.
Image: Detail of the piano's folding hinge and latch mechanism.
توصيل الطاقة
- Connect the provided power adapter to the Type-C Power Port on the back of the piano.
- قم بتوصيل المحول بمأخذ كهربائي قياسي.
- Alternatively, the piano has a built-in 1200mAh battery for portable use, offering approximately 7 hours of play time.
توصيل دواسة الاستدامة
- Locate the Sustain Pedal Port on the rear panel of the piano.
- Insert the pedal's plug firmly into this port.
الصورة: أكثر منview of the piano's connectivity ports.
Attaching the Sheet Music Stand
- Insert the sheet music stand into the designated slots on the top panel of the piano.
- تأكد من تثبيته بإحكام.
تعليمات التشغيل
الوظائف الأساسية
- تشغيل/إيقاف التشغيل: اضغط على زر الطاقة لتشغيل البيانو أو إيقاف تشغيله.
- التحكم في مستوى الصوت: Use the dedicated volume buttons or knob to adjust the output level of the built-in speakers or connected headphones.
- اختيار النغمة: The piano features 200 different tones. Use the "TONE" button and the +/- buttons to cycle through and select desired instrument sounds.
- اختيار الإيقاع: Access 200 rhythms using the "RHYTHM" button and the +/- buttons.
- أغاني العرض التوضيحي: The piano includes 80 demo songs. Press "DEMO ONE" to play a single demo or "DEMO ALL" to play all demos consecutively.
- المسرع: قم بتفعيل وظيفة المترونوم للمساعدة في ضبط التوقيت وممارسة الإيقاع.
- النقل: Adjust the pitch of the keyboard up or down.
- بورتامينتو: Glide smoothly between notes.
- الأوتار: Utilize the chord function for automatic chord accompaniment.
Image: Close-up of the piano's control panel with various function buttons.
الميزات المتقدمة
- وظيفة التسجيل: Use the recording feature to capture your performances. Refer to the digital display for recording status.
- وضع لوحة المفاتيح المزدوجة: This mode allows two players to use the keyboard simultaneously, splitting it into two identical pitch ranges.
- Teaching Function: Engage the teaching mode for guided practice.
- استخدام سماعة الرأس: Connect headphones to the 3.5mm Headphone Jack for private practice without disturbing others.
Image: User practicing with headphones connected to the digital piano.
Seller Video: Buinblu 88 Key Piano Overview
Video: An official seller video demonstrating the features and functionality of the Buinblu 88 Key Digital Piano.
صيانة
- تنظيف: Use a soft, dry cloth to wipe the surface of the piano. Avoid abrasive cleaners, solvents, or waxes, as these can damage the finish.
- تخزين: When not in use, fold the piano and store it in the provided carrying bag to protect it from dust and damage. Store in a cool, dry place away from direct sunlight and extreme temperatures.
- العناية بالبطارية: For optimal battery life, avoid fully discharging the battery frequently. Charge the piano regularly, even if not in constant use.
- التعامل: Always handle the piano carefully, especially when folding or unfolding, to prevent damage to the keys or internal components.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| لا يوجد صوت |
|
|
| المفاتيح لا تستجيب |
|
|
| Unusual sounds or distortion |
|
|
| Piano does not fold/unfold smoothly |
|
|
إذا واجهت مشكلات غير مدرجة هنا أو إذا لم تنجح الحلول في حل المشكلة، فيرجى الاتصال بدعم العملاء.
تحديد
| ماركة | Buinblu |
| اسم الموديل | ص-887 |
| عدد المفاتيح | 88 |
| مستوى المهارة | مبتدئ |
| المميزات الخاصة | Recording, Dual Keyboard, 200 Tones/Rhythms, 80 Demos, Metronome, Transposition, Portamento, Teaching Function, Chords |
| تكنولوجيا الاتصال | Auxiliary, 3.5mm Jack (Headphones, Mic, Audio In) |
| مصدر الطاقة | Battery Powered (1200mAh built-in battery), Power Adapter (Type-C) |
| عمر البطارية | حوالي 7 ساعات |
| وزن العنصر | 7.7 رطل |
| Unfolded Dimensions (D x W x H) | 8.8 بوصة عمق × 50.4 بوصة عرض × 2.2 بوصة ارتفاع (تقريبًا 22.4 سم عمق × 128 سم عرض × 5.6 سم ارتفاع) |
| Folded Dimensions (D x W x H) | 8.8 بوصة عمق × 25.2 بوصة عرض × 4.4 بوصة ارتفاع (تقريبًا 22.4 سم عمق × 64 سم عرض × 11.2 سم ارتفاع) |

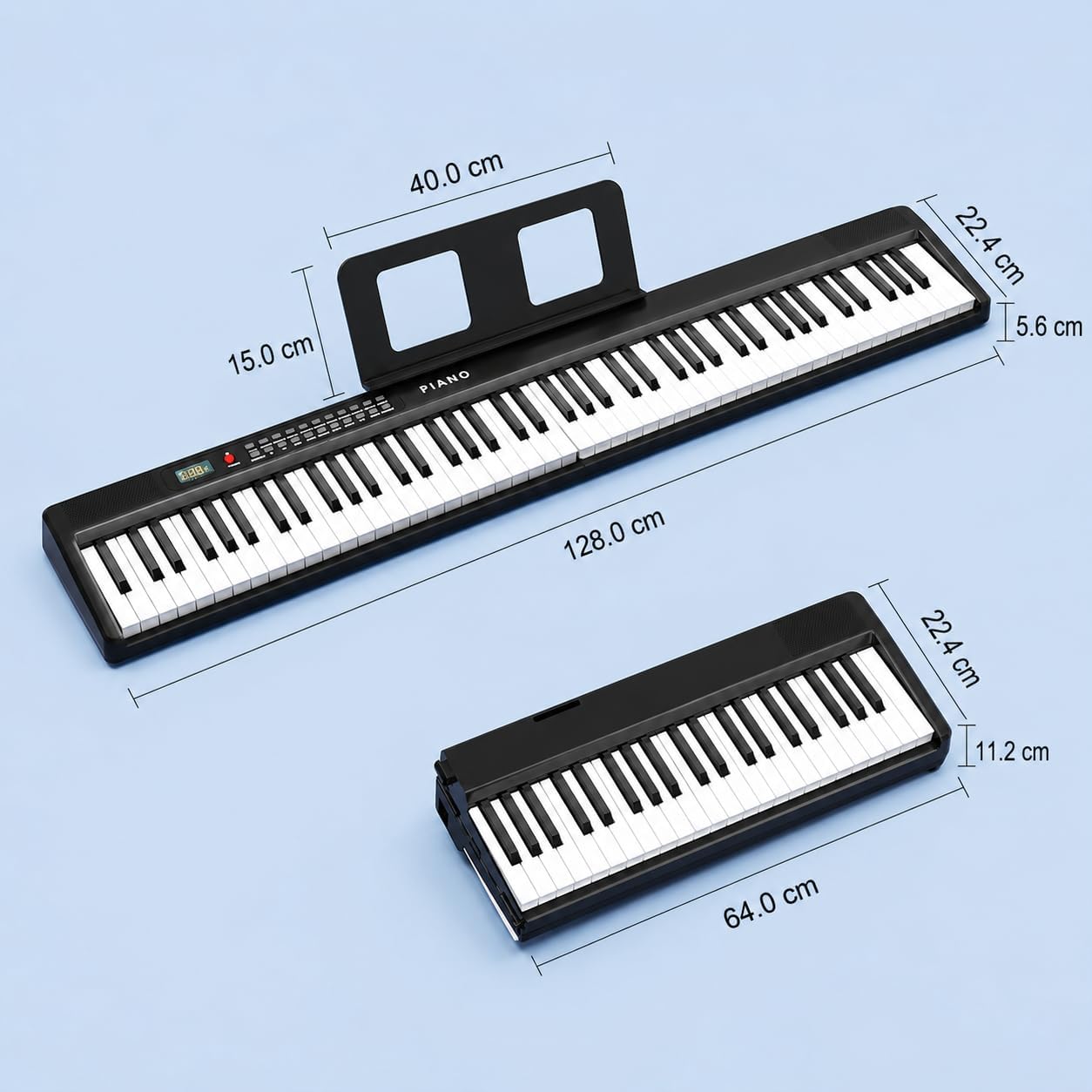

Image: Dimensional diagram of the piano in both unfolded and folded states.
معلومات الضمان
This Buinblu Digital Piano comes with a ضمان لمدة 2 سنوات from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
دعم العملاء
For any questions, technical assistance, or warranty claims, please contact Buinblu customer service. Refer to the product packaging or the retailer's website for the most current contact information. We offer 7*24-hour online service.
You can also visit the official Buinblu store on Amazon for more information: Buinblu Amazon Store
