Dongar PRO Plug & Play Parking Mode Adapter (DGR-PMA-01) - User Manual

مقدمة

The Dongar PRO Plug & Play Parking Mode Adapter provides a seamless power solution for dash cameras, utilizing your vehicle's auto-dimming rearview mirror as a power source. This adapter eliminates the need for complex wiring to the fuse box, offering a clean and integrated installation. It supports three distinct power modes, including parking mode functionality, and incorporates battery protection features to safeguard your vehicle's battery.

معلومات السلامة

• Ensure the vehicle is turned off and the ignition key is removed before beginning installation.
• Do not attempt to modify the adapter or its components.
• إذا لم تكن متأكدًا من أي خطوة من خطوات عملية التثبيت، فاستشر فني سيارات مؤهلًا.
• Always refer to your vehicle's owner's manual for specific information regarding its electrical system.

محتويات الحزمة

• Dongar PRO USB-C Power Module
• لوحة القاعدة
• كابل USB-C
• سلك microUSB
• كابل MiniUSB
• Vehicle-specific Custom Length Wiring Harnesses (3 options)

الإعداد والتثبيت

Follow these steps to install your Dongar PRO adapter:

1. Identify the Rearview Mirror Power Source: Locate the wiring harness connected to your auto-dimming rearview mirror. This is typically found behind the mirror housing or within the overhead console.
2. Select the Correct Wiring Harness: The Dongar PRO comes with three vehicle-specific wiring harness options. Choose the harness that matches the connector type in your Toyota or Lexus vehicle.
3. Connect the Dongar PRO Adapter: Disconnect the existing wiring harness from your rearview mirror. Connect the selected Dongar PRO wiring harness in-line with the vehicle's wiring and the rearview mirror. Ensure a secure connection.
4. Important Note on Toyota Safety Sense:


   وصف الصورة: This image displays a warning against unplugging the Toyota Safety Sense connector. A large red 'X' is superimposed over a vehicle wiring harness, with a text box explaining that many Toyotas have a 12-Pin Safety Sense Connector that can be confused with the rearview mirror connection. It advises searching for an additional 10-Pin, 12-Pin (behind rearview mirror), or 5-Pin connector instead.

   Many Toyota vehicles feature a 12-Pin Safety Sense Connector that can be mistaken for the rearview mirror power connection. Do not unplug this connector. Instead, locate the correct power connector, which may be an additional 10-Pin connector (under the plastic shroud), a 12-Pin connector (behind the rearview mirror), or a 5-Pin connector (in your roof cavity).
5. Connect Dash Cam to Dongar PRO: Plug your dash camera's USB power cable (USB-C, MicroUSB, or MiniUSB, depending on your dash cam) into the Dongar PRO USB-C Power Module.
6. قم بتركيب المحول: Secure the Dongar PRO adapter and baseplate in a discreet location, typically behind the rearview mirror or within the overhead console, ensuring it does not obstruct your view or interfere with vehicle operations.
7. وظيفة الاختبار: Turn on your vehicle's ignition to verify that the dash cam powers on correctly.

أوضاع التشغيل

The Dongar PRO adapter offers three distinct power modes to suit your dash cam's operational needs. The mode is selected via a button on the adapter itself.

وصف الصورة: لقطة مقرّبة view of the Dongar PRO adapter, showing its compact black design with the "DONGAR" logo, a central button, and indicators for different operating modes (IGN, T, C).

• Ignition Mode (IGN):

  In this mode, your dash cam will power on only when your vehicle's ignition is active. It will automatically power down as soon as the vehicle is turned off. This mode is suitable for recording only while driving.

• Timed Mode (T):

  This mode keeps your dash cam powered for up to 4 hours after the vehicle is turned off. It is ideal for short parking periods, such as running errands or dining. The adapter includes battery protection and will automatically power off the dash cam if a low voltage threshold is detected, preventing vehicle battery drain.

• Continuous Mode (C):

  In Continuous Mode, the dash cam remains powered continuously after the vehicle is turned off. With a healthy battery, this can provide power for up to 36 hours. Similar to Timed Mode, the adapter will automatically cut power to the dash cam if a low voltage threshold is reached to protect your vehicle's battery.

حماية البطارية

The Dongar PRO adapter is equipped with an integrated battery protection feature. To prevent draining your vehicle's battery, the adapter continuously monitors the battery voltagهـ. إذا كان المجلدtage drops below a predetermined safe threshold, the adapter will automatically cut power to the dash cam, ensuring your vehicle's battery retains sufficient charge for starting.

التوافق

The Dongar PRO adapter (DGR-PMA-01) is designed for compatibility with a wide range of Toyota and Lexus models. Please refer to the tables below to confirm your vehicle's compatibility.

وصف الصورة: Compatibility table (1 of 6) for the Dongar PRO (DGR-PMA-01) with Toyota/Lexus Cable Pack. This section lists compatible Toyota 4Runner models (Platinum, SR5, Trailhunter, TRD Sport Premium, Limited, TRD Off-Road, TRD Off-Road Premium, TRD PRO, TRD Sport) for years 2020-2025 and 2025, and Avalon models (Hybrid Limited, Hybrid XLE, Hybrid XSE, Limited, Touring, TRD, XLE, XSE, XSE Nightshade) for years 2019-2022.

وصف الصورة: Compatibility table (2 of 6) for the Dongar PRO (DGR-PMA-01). This section lists compatible Toyota BZ4X models (Limited, LE, XLE) for years 2023-2025, Camry models (LE, SE, XLE, XSE, Hybrid LE, Hybrid SE, Hybrid XLE, Hybrid XSE) for years 2019-2025 and 2019-2024, Crown models (Limited, XLE, Platinum) for years 2023-2025, and Grand Highlander models (Limited, Hybrid Limited) for years 2024-2025.

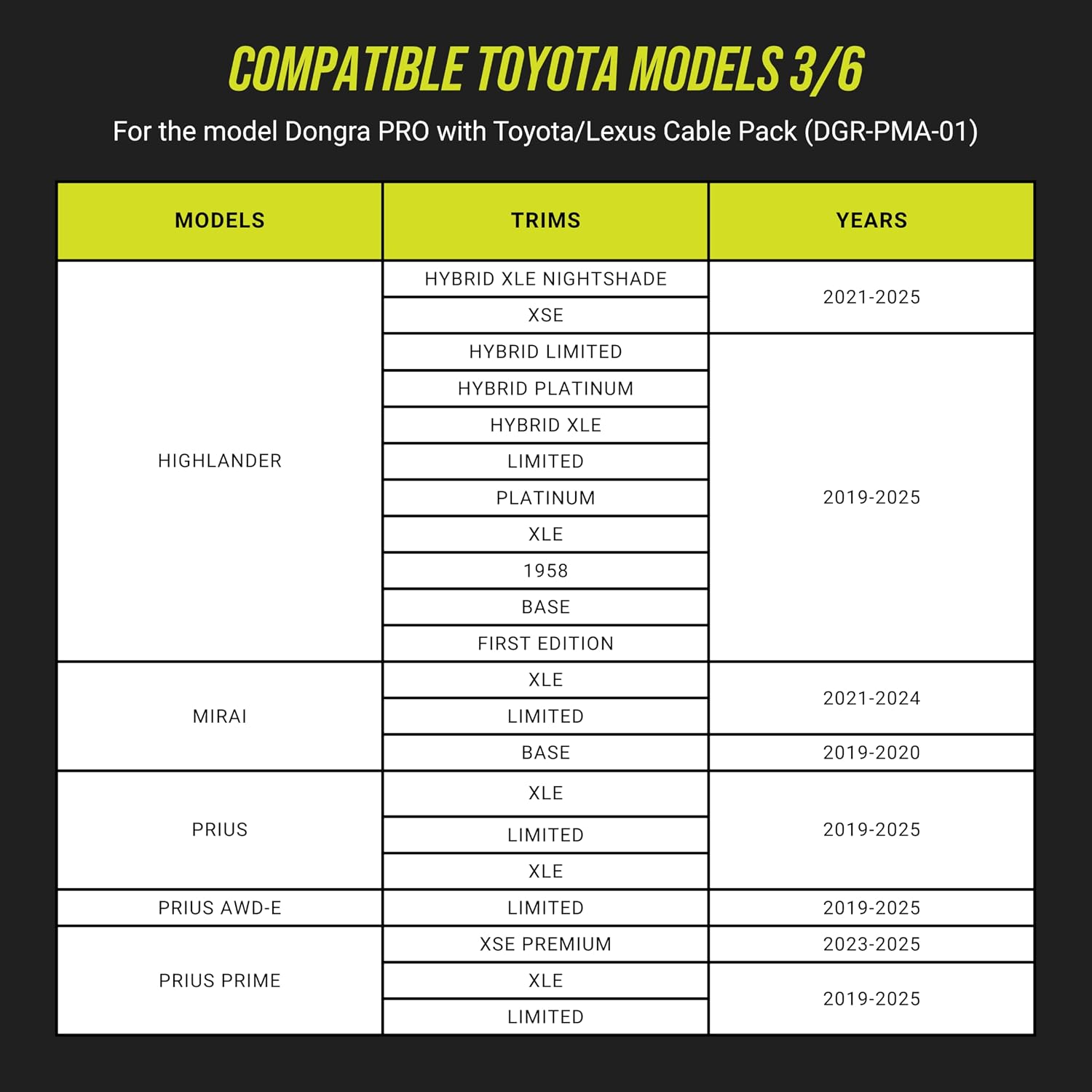

وصف الصورة: Compatibility table (3 of 6) for the Dongar PRO (DGR-PMA-01). This section lists compatible Toyota Highlander models (Hybrid XLE Nightshade, XSE, Hybrid Limited, Hybrid Platinum, Hybrid XLE, Limited, Platinum, XLE, 1958, Base, First Edition) for years 2021-2025 and 2019-2025, Mirai models (XLE, Limited, Base) for years 2021-2024 and 2019-2020, Prius models (Limited, XLE) for years 2019-2025, Prius AWD-E models (Limited, XLE) for years 2019-2025, and Prius Prime models (XSE Premium, XLE, Limited) for years 2023-2025 and 2019-2025.

وصف الصورة: Compatibility table (4 of 6) for the Dongar PRO (DGR-PMA-01). This section lists compatible Toyota RAV4 models (Limited, Hybrid XSE, TRD Off-Road, XLE Premium, Adventure, Hybrid Limited, Hybrid XLE, Hybrid XLE Premium) for years 2020-2024, RAV4 Prime models (XSE) for years 2021-2024, and Sequoia models (1794 Edition, Capstone, Limited, Platinum, SR5, TRD PRO, Nightshade, TRD Sport) for years 2023-2025, 2021-2025, and 2021-2022.

وصف الصورة: Compatibility table (5 of 6) for the Dongar PRO (DGR-PMA-01). This section lists compatible Toyota Sienna models (Limited, XSE, XLE, Woodland Edition, Platinum, LE, 25th Anniversary Edition) for years 2021-2025, Tacoma models (TRD Prerunner, Limited, TRD PRO, TRD Sport, TRD Off-Road, SR5, Trailhunter, Sport, SR, XLE) for years 2024-2025, and Venza models (Nightshade, Limited) for years 2021-2024.

وصف الصورة: Compatibility table (6 of 6) for the Dongar PRO (DGR-PMA-01). This section lists compatible Toyota Tundra models (Capstone, Limited, TRD PRO, TRD Off-Road, Platinum, 1794 Edition, SR5, SR) for years 2022-2024.

استكشاف الأخطاء وإصلاحها

• كاميرا لوحة القيادة لا تعمل:
  • Ensure all connections are secure, especially the in-line connection to the rearview mirror harness.
  • Verify that the correct vehicle-specific wiring harness is used.
  • Check if your vehicle's ignition is on (for Ignition Mode) or if sufficient time has passed since turning off the vehicle (for Timed/Continuous Modes).
  • Confirm that your dash cam's USB cable is properly connected to the Dongar PRO module.
• Dash Cam Powers Off Unexpectedly:
  • This may indicate the battery protection feature has activated due to low vehicle battery voltage. Start your vehicle to recharge the battery.
  • Ensure the selected operating mode (Timed or Continuous) is appropriate for your parking duration.
• Interference with Vehicle Electronics:
  • Ensure the Dongar PRO adapter and its cables are not interfering with other vehicle components or wiring.
  • Double-check that you did not unplug the Toyota Safety Sense connector during installation.

تحديد

الضمان والدعم

For warranty information and technical support, please refer to the official Dongar Technologies website or contact their customer service directly. Specific warranty terms may vary and are typically provided with your purchase documentation.

You can visit the Dongar Store on Amazon for additional product information and support: Dongar Store
