VOCIC V55 Lightweight Foldable Electric Wheelchair User Manual

1. المقدمة

Thank you for choosing the VOCIC V55 Lightweight Foldable Electric Wheelchair. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new electric wheelchair. Please read this manual thoroughly before initial use and keep it for future reference. Proper use and maintenance will ensure optimal performance and longevity of your device.

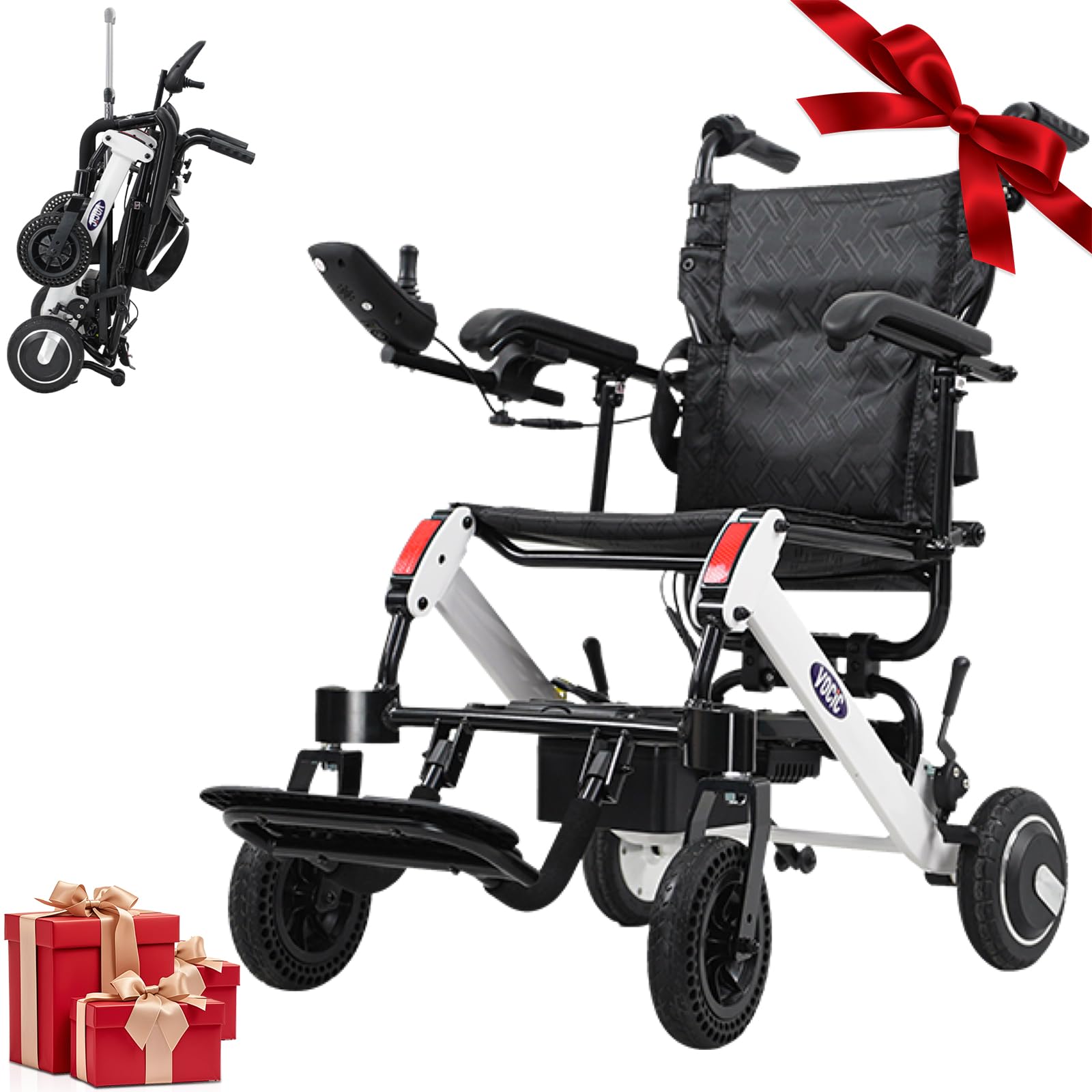

Image 1.1: The VOCIC V55 Electric Wheelchair, showcasinيتميز بتصميمه المدمج والحديث.

2. معلومات السلامة

Your safety is paramount. Please adhere to all safety guidelines to prevent injury or damage to the wheelchair.

• Correct Address and Contact: Ensure correct shipping address, phone number, and email are provided for delivery. Incorrect information may lead to delivery failure.
• الشحن الأولي: Charge the wheelchair for 6-8 hours before its first use.
• صيانة البطارية: If not used frequently, charge the battery once a month to maintain its health.
• توصيلات الطاقة: Always ensure the power cable and controller plug are correctly connected as per instructions. Improper connection will prevent the wheelchair from starting.
• Product Packaging Warnings: Product packaging may contain information different from what is shown online. Always read the label, warnings, and instructions provided on the product before use or consumption.
• Electronic Braking System: The sensitive electronic braking system ensures safe driving uphill and downhill. Releasing the joystick will engage the brake.
• Manual Brake: Utilize the manual hand brake for additional safety and double protection.
• Safety Belt and Anti-Tip Wheels: Always use the safety belt and ensure anti-tip wheels are properly installed for increased safety during transport and operation.
• Night Travel: The frame is equipped with reflective films for enhanced visibility and safety during night travel.

3. مكونات المنتج

The VOCIC V55 electric wheelchair is designed with several key components for user comfort, control, and safety.

• Lightweight Aluminum Alloy Frame: Provides durability and reduces overall weight.
• 360° Intelligent Joystick: For easy and precise control.
• Rear Control Button: Allows an assistant to push the wheelchair in electric mode.
• High-Quality Lithium Battery (24V/10AH): Powers the wheelchair for extended range.
• Dual 300W Motors (600W total): Provides powerful and quiet operation.
• Electronic Braking System: For immediate and secure stopping.
• Manual Hand Brake: Additional braking mechanism.
• Anti-Tip Wheels: Enhances stability and prevents tipping.
• حزام الأمان: Secures the user in the seat.
• 3cm Thick Cushions: For enhanced seating comfort.
• مساند قدم قابلة للطي: Provides foot support and folds for compactness.
• 90° Rotatable Armrests: Facilitates easier transfers.
• Backrest Pockets: Convenient storage.
• PU Tires: Durable and suitable for various terrains.

Image 3.1: Key components of the VOCIC V55, highlighting the powerful motor, comfortable cushion, durable tires, and convenient backrest pocket.

4. الإعداد

The VOCIC V55 wheelchair comes pre-installed, requiring only a few simple steps for full setup.

1. فك التعبئة: Carefully remove the wheelchair from its packaging.
2. تتكشف: Unfold the wheelchair by following the quick folding mechanism. The design allows for rapid unfolding in approximately 3 seconds.
3. تركيب/توصيل البطارية: Ensure the battery is securely connected. The battery is integrated, but ensure all power connections are firm.
4. Joystick Attachment: Attach the 360° intelligent joystick to the desired side (left or right) of the armrest. Ensure it clicks securely into place.
5. تعديل مسند القدمين: Adjust the foldable footrests to a comfortable position.
6. التهمة الاولية: Before first use, fully charge the battery for 6-8 hours. Connect the charger to the charging port located at the bottom of the controller.

Image 4.1: Visual guide for folding the wheelchair and placing it into a vehicle trunk.

5. تعليمات التشغيل

5.1. Using the 360° Intelligent Joystick

The joystick provides intuitive control over the wheelchair's movement and speed.

• تشغيل/إيقاف التشغيل: Press the power button on the joystick to turn the wheelchair on or off.
• حركة: Gently push the joystick in the desired direction (forward, backward, left, right) to move the wheelchair.
• تعديل السرعة: Use the speed adjustment buttons (+/-) on the joystick to select one of the 5 available speed levels. The current speed and battery level are displayed on the improved controller screen.
• الكبح: Release the joystick to engage the electronic braking system, bringing the wheelchair to a smooth stop. For immediate stopping, use the manual hand brake.
• القرن: Press the horn button for safety warnings.

الصورة 5.1: انتهىview of the 360° intelligent joystick and its functions.

5.2. Using the Rear Control

The rear control allows an attendant to easily maneuver the wheelchair in electric mode.

• التفعيل: The rear control button is located on the right side of the wheelchair handle.
• حركة: Gently press the button to propel the wheelchair forward. This significantly reduces the effort required by caregivers.

Image 5.2: Demonstrating the use of the intelligent rear control for assisted movement.

6. الصيانة

Regular maintenance ensures the longevity and safe operation of your VOCIC V55 wheelchair.

• شحن البطارية: Charge the battery for 6-8 hours for the first use. If the wheelchair is not used frequently, it is recommended to charge the battery once a month to prevent deep discharge and prolong battery life.
• تنظيف: Regularly wipe down the frame and components with a damp القماش. تجنب استخدام المنظفات الكاشطة أو الماء الزائد.
• فحص الإطارات: Check the PU tires periodically for wear and tear. While anti-puncture, ensure they are free from debris that could affect performance.
• فحص المكونات: Periodically inspect all bolts, screws, and connections to ensure they are tight and secure.
• تخزين: Store the wheelchair in a dry, cool place when not in use. If storing for an extended period, ensure the battery is charged to at least 50%.

7. استكشاف الأخطاء وإصلاحها

فيما يلي بعض المشكلات الشائعة وحلولها المحتملة:

• Wheelchair does not power on:
  • تحقق مما إذا كانت البطارية مشحونة.
  • Ensure the power cable and controller plug are correctly and securely connected.
  • Verify the power button on the joystick is pressed.
• Wheelchair moves erratically or not as expected:
  • Ensure the joystick is fully engaged in the desired direction.
  • تأكد من عدم وجود أي عوائق حول العجلات.
  • If using rear control, ensure the button is pressed consistently.
• انخفاض المدى أو الطاقة:
  • The battery may need a full charge.
  • Battery performance can decrease over time; consider battery replacement if significantly degraded.
• Folding/Unfolding is stiff:
  • تأكد من فصل جميع آليات القفل.
  • Lubricate moving parts if necessary (consult customer service for recommended lubricants).

If you encounter any issues not listed here or if troubleshooting steps do not resolve the problem, please contact VOCIC customer support.

8. المواصفات

Detailed technical specifications for the VOCIC V55 Electric Wheelchair:

الصورة 8.1: الأبعاد علىview of the VOCIC V55 electric wheelchair.

9. الضمان والدعم

VOCIC is committed to providing excellent customer service and product reliability.

• ضمان: VOCIC offers an extended 5-year warranty for every customer. If you encounter any damage issues during the warranty period, please contact us for free parts replacement or product exchange.
• دعم العملاء: Our professional after-sales team is available to assist you. All issues will be resolved within 24 hours.
• اتصال: If you receive damaged parts or experience installation problems, please contact VOCIC customer service immediately for a satisfactory solution.

Image 9.1: VOCIC's commitment to customer support and warranty.
