IRIS OHYAMA DKC85A1-W Drum Washing Machine User Manual

مقدمة

This manual provides essential information for the safe and efficient use of your IRIS OHYAMA DKC85A1-W drum washing machine. Please read it thoroughly before operating the appliance and keep it for future reference.

Image: IRIS OHYAMA DKC85A1-W Drum Washing Machine, left-opening model with 8kg wash and 5kg dry capacity.

معلومات السلامة

التزم دائمًا بإرشادات السلامة التالية لمنع الإصابة أو إتلاف الجهاز:

• Do not install the washing machine in areas with excessive moisture, such as bathrooms or near water sources.
• Avoid installing the appliance in locations exposed to wind and rain, such as balconies or gardens.
• Ensure the appliance is used for general household purposes only. Use in commercial settings may void the warranty.
• Keep children away from the appliance during operation. The child lock feature should be activated to prevent accidental opening of the door.
• Before any maintenance or cleaning, always unplug the appliance from the power outlet.

Image: Important notes regarding installation location and usage restrictions for the washing machine.

يثبت

متطلبات التثبيت

Proper installation is crucial for the performance and longevity of your washing machine. Consider the following:

• فضاء: Ensure at least 10cm width clearance for the product dimensions. A minimum of 45cm space above the unit is required due to product specifications.
• إمدادات المياه: Connect the water supply hose securely.
• الصرف الصحي: Connect the drain hose. Ensure the drain hose connection side has at least 9cm clearance.
• التسوية: Use the adjustable feet and included spanner to ensure the machine is perfectly level.
• قوة: Connect to a standard AC100V power outlet.

Image: Detailed diagram showing required clearances for installation, including height, width, and depth, as well as considerations for doorways and stairs.

الإعداد الأولي

1. Remove all transport bolts and packaging materials. Transport bolts are installed at the factory and must be removed before use.
2. Connect the water supply hose to the water tap and the machine.
3. قم بتوصيل خرطوم الصرف بمصرف مناسب.
4. قم بتوصيل سلك الطاقة بمأخذ كهربائي أرضي.
5. Perform a test wash cycle without laundry to check for leaks and proper operation.

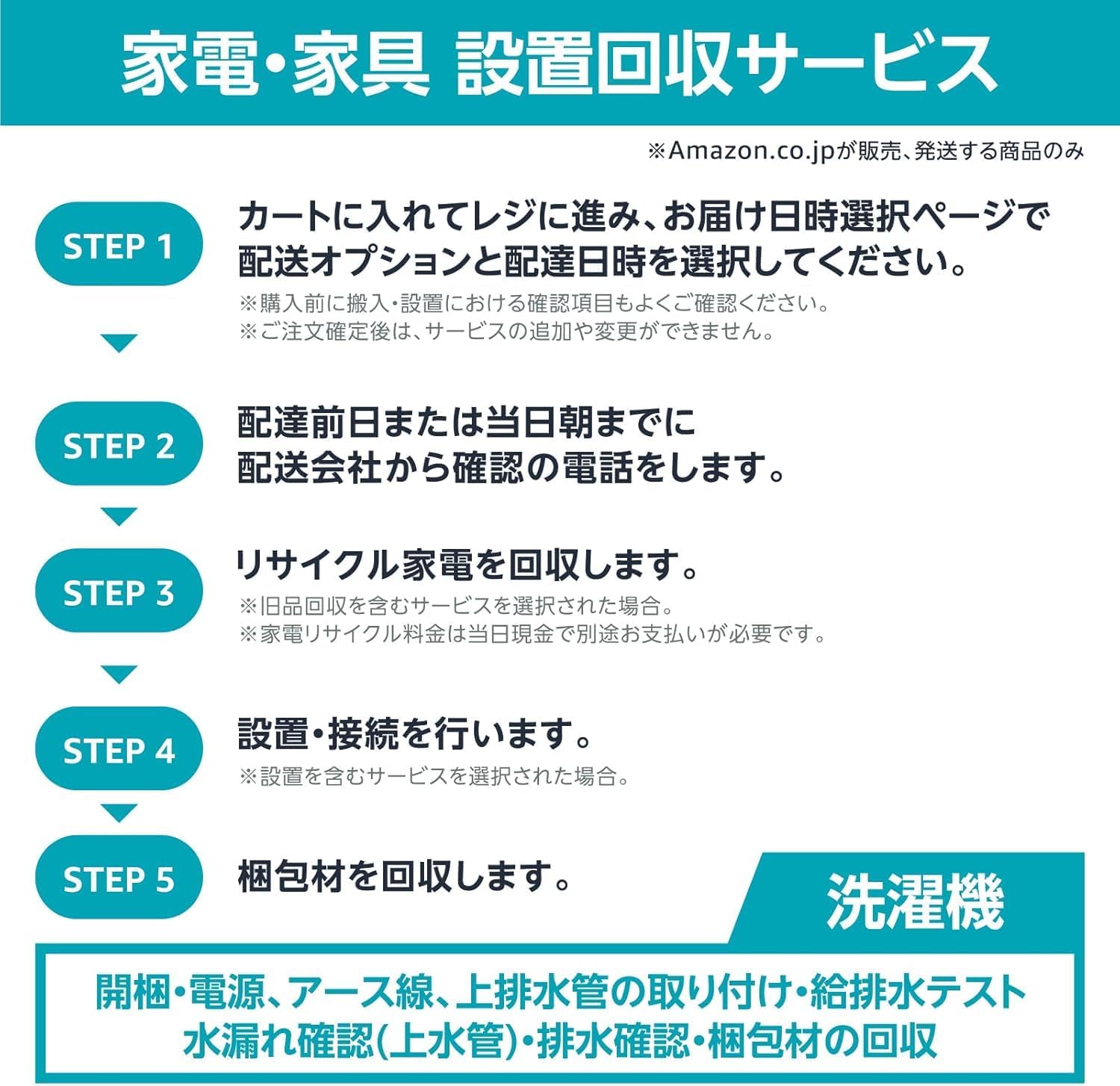

Image: Steps for installation and connection, including water supply, drainage, and power, along with packaging removal.

تعليمات التشغيل

انتهت لوحة التحكمview

The control panel allows you to select various wash and dry cycles, adjust settings, and manage the machine's functions. Familiarize yourself with the buttons and display.

Image: The control panel of the IRIS OHYAMA DKC85A1-W washing machine, showing various program selections and settings.

أوضاع الغسيل

The machine offers various washing courses to suit different fabric types and cleaning needs:

• Warm Water Wash: Effectively removes odors and yellowing. Note: Not all yellowing or odor-causing bacteria can be removed.
• 60°C Course: Ideal for underwear and white items, providing thorough sterilization and odor removal.
• 40°C Course: Suitable for daily wear and delicate items, targeting sebum stains and odors.
• 40°C Course + 30-minute Soak: For stubborn yellowing, restoring original whiteness.
• 20°C Course: Optimized for washing in colder temperatures, such as during winter, to maintain cleaning performance.
• المسار الدراسي القياسي: For everyday washing.
• Hand Wash Course: For delicate items like wool and lace.
• Blanket Course: للأغراض الكبيرة مثل الألحفة والبطانيات.
• Sportswear Course: For light sportswear, with quick wash and dry.
• Thick Clothes Course: For items like sweatshirts and hoodies that are difficult to dry.

Image: Comparison of baby bibs before and after washing with a standard course versus a 60°C warm water course, showing improved stain removal.

Image: Comparison of shirt collars showing sebum stain removal with a standard course versus a 40°C warm water course.

Image: Comparison of shirt sleeves showing yellowing removal with a standard course versus a 40°C warm water course with a 30-minute soak.

Image: Comparison of stain removal effectiveness in cold water (approx. 5°C) versus a 20°C course, demonstrating improved cleaning in winter.

أوضاع التجفيف

The machine features a 5kg drying capacity and various drying options:

• Wrinkle Care Course: Reduces wrinkles by performing a lighter drying cycle after spin-drying, minimizing ironing time.
• Shortest 30-minute Drying: Convenient for finishing drying or when you need items slightly dry.
• Warm Water Wash + Dry: Combines powerful warm water washing with drying for thorough cleaning and drying.
• Five Sensing Technology: Utilizes five sensors (warm air temperature, drum temperature, intake air temperature, laundry amount, and operation time) to ensure clothes are dried gently and thoroughly.

Image: Illustration of the wrinkle care drying feature, showing how clothes are less wrinkled compared to standard drying.

Image: Diagram illustrating the Five Sensing drying technology, which uses multiple sensors to optimize drying for different laundry loads.

المميزات الخاصة

• مؤقت الحجز: Set the machine to finish washing or washing and drying after a specified number of hours (Wash: approx. 3-19 hours; Wash & Dry: approx. 7-19 hours). This allows you to align laundry completion with your schedule, such as waking up or returning home.
• قفل الطفل: Press and hold for 3 seconds or more to lock the door, preventing children from accidentally opening it during operation.
• Custom Course Registration: Register frequently used courses or original combinations as "My Favorite" for convenient one-button access.

Image: Illustration of the reservation timer feature, showing how to set the machine to finish at a desired time, such as upon waking or returning home.

عرض فيديو

Watch this video for a visual guide on the IRIS OHYAMA drum washing machine's features, including warm water wash, odor and yellowing removal, sebum stain removal, and winter washing.

صيانة

تضمن الصيانة المنتظمة الأداء الأمثل وتطيل عمر الغسالة الخاصة بك.

• Detergent Dispenser Case: The detergent dispenser case can be easily removed and washed completely.
• Drying Filter: Simply remove lint and debris from the mesh part of the drying filter.
• Drum Clean Course: Use the "Drum Clean Course" with approximately 60°C warm water to keep the drum clean. Regular use helps prevent bacteria and black mold growth. When using chlorine-based bleach or washing machine cleaner, set the wash temperature to 30°C or below.

Image: Comparison showing the suppression of odor-causing bacteria after drying with warm air.

استكشاف الأخطاء وإصلاحها

If you encounter any issues with your washing machine, refer to the following common solutions. For persistent problems, contact customer support.

• الجهاز لا يعمل: Ensure the power cord is securely plugged in and the door is properly closed. Check if the child lock is activated.
• تسرب مياه: Verify that the water supply and drain hoses are correctly connected and tightened.
• ضوضاء/اهتزاز غير عادي: Ensure the machine is level and that all transport bolts have been removed. Check for any foreign objects in the drum.
• الملابس لا تجف بشكل صحيح: Clean the drying filter. Ensure the load size is appropriate for the drying capacity (max 5kg).
• رموز الخطأ: Consult the full product manual for specific error code meanings and solutions.

تحديد

Image: Table summarizing the technical specifications of the IRIS OHYAMA DKC85A1-W washing machine.

Image: Diagram showing the dimensions of the IRIS OHYAMA DKC85A1-W washing machine and a list of included accessories.

الضمان والدعم

Your IRIS OHYAMA DKC85A1-W drum washing machine comes with a ضمان الشركة المصنعة لمدة عام واحد from the date of purchase. This warranty covers defects in materials and workmanship, excluding consumables.

For warranty claims, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official IRIS OHYAMA webموقع.
