STARSEEKER E55 Plasma Electric Coffee Grinder Instruction Manual

مقدمة

This manual provides detailed instructions for the safe and efficient operation and maintenance of your STARSEEKER E55 Plasma Electric Coffee Grinder. The E55 is designed for precise coffee grinding, featuring a 55mm stainless steel conical burr for uniform grinding and optimal flavor extraction. It offers 60 grinding levels, allowing for ideal texture adjustment across various brewing methods, from espresso to French press. The integrated Plasma Technology utilizes an antistatic system to minimize waste retention, ensuring a clean and consistent dose with each use. Its single-dose design is optimized for preserving bean aroma, and the durable aluminum housing coupled with a low-noise motor makes it suitable for both home and professional environments.

The STARSEEKER E55 Plasma Electric Coffee Grinder in black, showcasing its sleek design, magnetic catch cup, and the 55mm conical burr components.

مكونات المنتج

Familiarize yourself with the main components of your STARSEEKER E55 grinder:

An annotated diagram illustrating the various parts of the STARSEEKER E55 grinder, such as the bean hopper, grind adjustment scale, burr assembly, magnetic output, and the power switch.

الملحقات المتضمنة

• منفاخ الهواء
• Magnetic Powder Cup
• فرش التنظيف
• Spray Bottle (for RDT)
• مزود الطاقة

The included accessories for the STARSEEKER E55 grinder, which comprise an air blower, a magnetic powder catch cup, cleaning brushes, a spray bottle for RDT (Ross Droplet Technique), and the power supply.

يثبت

1. فك التعبئة: قم بإزالة جميع المكونات من العبوة بعناية. تأكد من وجود جميع الملحقات.
2. الموقع: Place the grinder on a stable, flat surface. Ensure it is near a power outlet and away from water sources.
3. توصيل الطاقة: Connect the power supply to the grinder and then plug it into a 100V electrical outlet.
4. التنظيف الأولي: قبل الاستخدام الأول، امسح السطح الخارجي بـamp cloth. Use the provided brush to clean the burr chamber and powder chute.
5. ضبط إعداد الطحن: The grinder features a stepless grind adjustment dial with a 0-100 scale. To set the grind, turn the dial clockwise until it is at its tightest point (burrs touching). Then, turn it counter-clockwise to your desired setting. Refer to the 'Grind Settings Guide' in the Operating Instructions for recommended starting points.

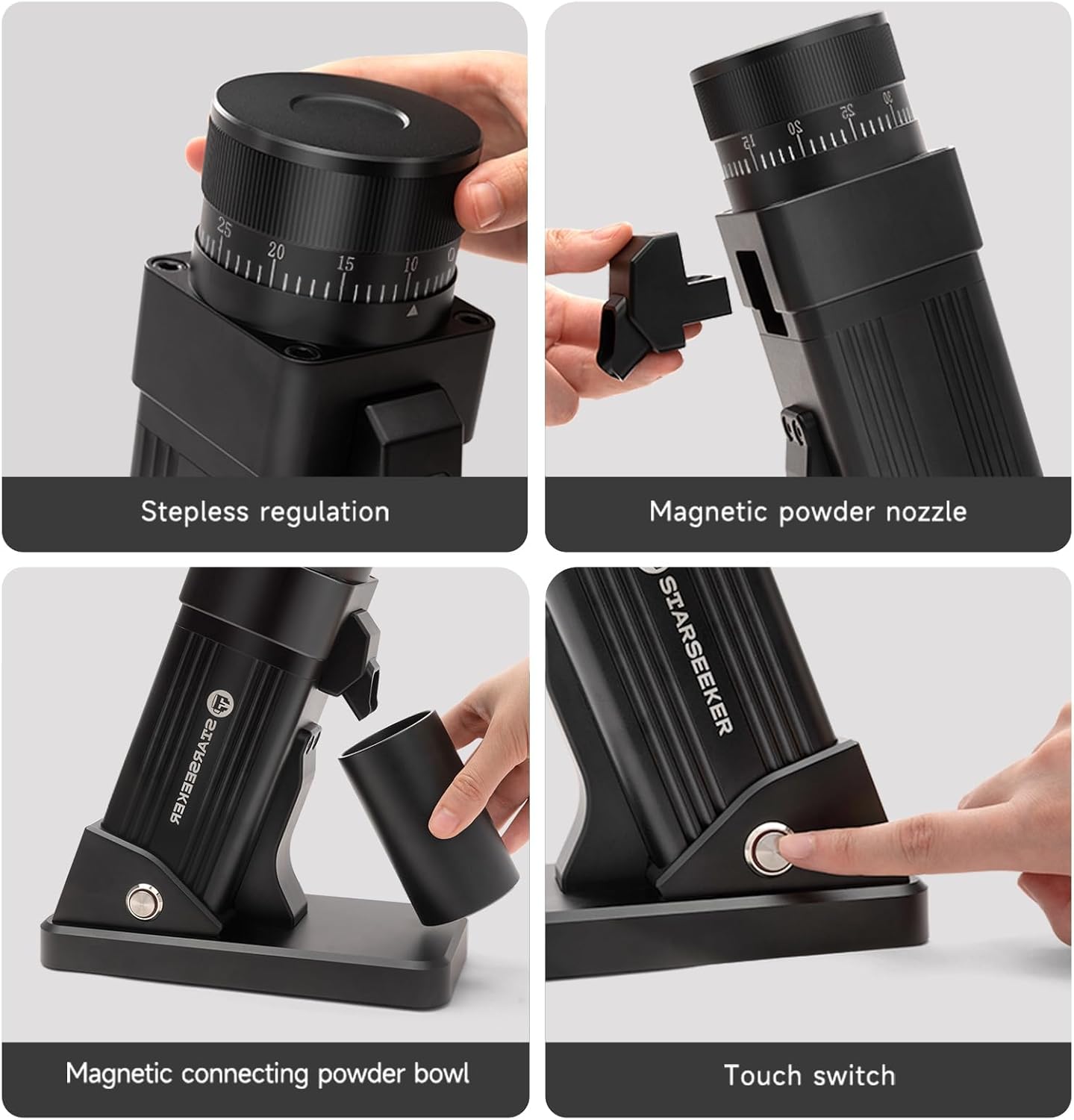

This image highlights key features of the E55 grinder, including the stepless grind adjustment dial, the magnetic powder output nozzle, the magnetic connection for the catch cup, and the intuitive touch power switch.

تعليمات التشغيل

1. Prepare Beans: Ensure your coffee beans are fresh and free from foreign objects. The bean bin capacity is 30g, suitable for single-dose grinding.
2. اضبط درجة الطحن: Select your desired grind setting using the stepless adjustment dial. For specific recommendations, consult the 'Grind Settings Guide' below.
3. ضع كوب الصيد: Position the magnetic powder catch cup securely under the powder output nozzle. The magnetic base ensures proper alignment and reduces mess.
4. أضف الفاصوليا: Pour the desired amount of whole coffee beans into the bean hopper.
5. بدء الطحن: Press the touch switch to begin grinding. The grinder will operate until all beans are processed.
6. جمع الأراضي: Once grinding is complete, remove the magnetic catch cup. The Plasma Technology's antistatic system helps ensure minimal retention and a clean transfer of grounds.

دليل إعدادات الطحن

The STARSEEKER E55 offers 60 distinct grind settings to cater to various brewing methods:

• التروس من 0 إلى 15: Extra Fine (e.g., Turkish coffee)
• التروس من 15 إلى 35: Fine (e.g., Espresso)
• التروس من 35 إلى 50: Medium to Fine (e.g., Moka pot)
• التروس من 50 إلى 75: Medium (e.g., Drip Brew)
• التروس من 75 إلى 100: Medium to Coarse (e.g., French Press)

A visual guide detailing the recommended grind settings (0-100 scale) for various coffee brewing methods, including extra fine for Turkish coffee, fine for espresso, medium-to-fine for Moka pot, medium for drip brew, and medium-to-coarse for French press.

صيانة

سيضمن التنظيف والصيانة المنتظمين طول عمر المطحنة وأدائها الأمثل.

1. التنظيف اليومي: After each use, use the provided cleaning brush to remove any residual coffee grounds from the burr chamber and powder output nozzle. The air blower can assist in dislodging stubborn grounds.
2. التنظيف الخارجي: امسح الجزء الخارجي من المطحنة بقطعة قماش ناعمة.amp قطعة قماش.
3. ملاحظة مهمة بشأن التنظيف: Do not clean the grinder with water, and do not place it in a dishwasher. Water can damage the internal electronic components and burrs. Always use a dry brush for internal cleaning.
4. Burr Access: For deeper cleaning, the top burr assembly can be removed. Refer to the product diagram for component identification. Ensure the grinder is unplugged before attempting to remove any parts.

استكشاف الأخطاء وإصلاحها

• المطحنة لا تعمل:
  • Ensure the power cord is securely plugged into both the grinder and a working electrical outlet.
  • تحقق من مفتاح الطاقة.
  • If the grinder has been used for an extended period, it may have an overheating protection mechanism. Locate the reset button (typically on the side or bottom) and press it. Allow the unit to cool down before attempting to operate again.
• طحن غير منتظم:
  • Verify that the grind setting is appropriate for your brewing method. Adjust as needed.
  • Ensure the burrs are clean and free of old coffee residue, which can affect grind consistency.
• Coffee Grounds Retention/Mess:
  • While the Plasma Technology minimizes static, some retention may occur. Use the provided air blower to clear the chute after grinding.
  • Ensure the magnetic catch cup is properly seated.
• ضوضاء غير عادية:
  • Stop the grinder immediately. Unplug the unit and inspect the burr chamber for any foreign objects (e.g., small stones) that may have been mixed with the coffee beans.

If you encounter issues not covered here, or if troubleshooting steps do not resolve the problem, please contact STARSEEKER customer support for assistance.

تحديد

A technical drawing providing the precise dimensions of the STARSEEKER E55 coffee grinder, indicating its height, length, and width for placement and space planning.

الضمان والدعم

For warranty information, product support, or any questions regarding your STARSEEKER E55 Plasma Electric Coffee Grinder, please contact STARSEEKER customer service. Contact details can typically be found on the product packaging or the official STARSEEKER webموقع.
