This manual provides comprehensive instructions for the installation, operation, and maintenance of the Generic GPS Tracker GT06N. Designed for vehicle tracking, the GT06N offers robust features for monitoring and security. Please read this manual thoroughly before using the device to ensure proper functionality and safety.
المنتج انتهىview
The GT06N is a compact and reliable GPS vehicle tracker. It integrates GPS positioning technology with GSM/GPRS communication for real-time tracking and various alert functions.

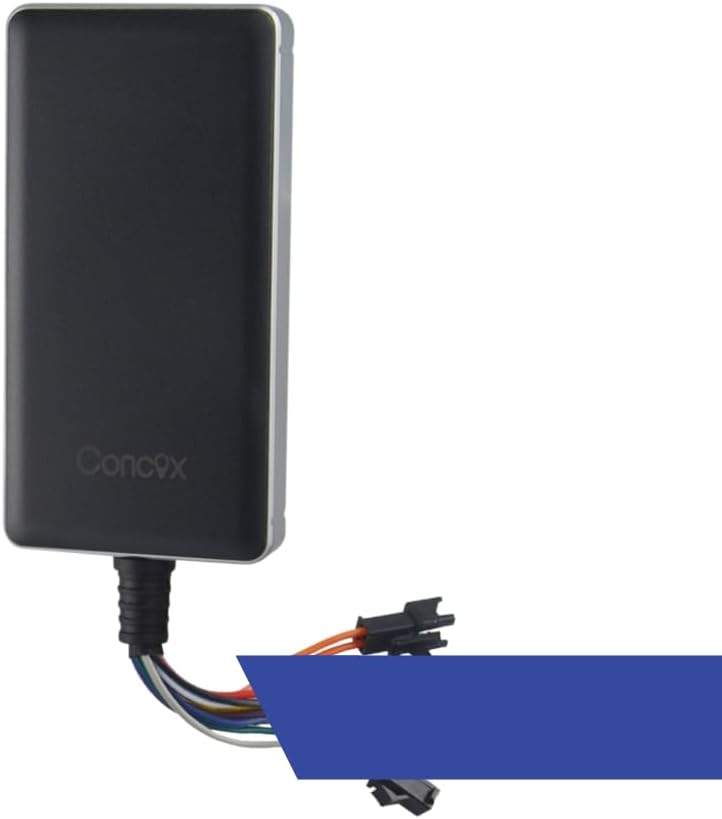

Figure 1: Generic GT06N GPS Tracker. This image displays the main tracking unit, a black rectangular device with the "Concox" logo, connected to a multi-colored wiring harness.

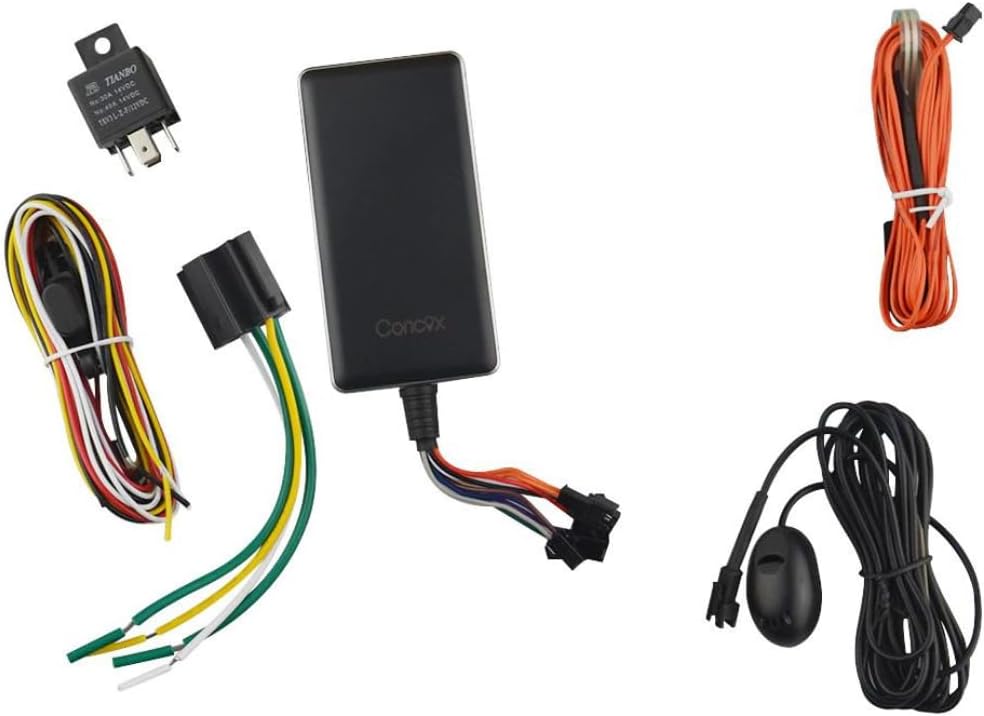

Figure 2: GT06N GPS Tracker and Accessories. This image shows the main GT06N tracker unit, a relay, a microphone, an SOS button, and various wiring harnesses, illustrating the complete package contents.
الميزات الرئيسية
- Remote Cutoff (Fuel/Power): Immobilize a vehicle by cutting off its power source or fuel supply through an installed relay.
- زر الطوارئ (SOS): Contact dispatch or emergency support with a discreet SOS button in the cabin.
- Ignition Detection: Constantly detects the vehicle's ACC/ignition status.
- Additional Tx/Rx Interface: Connect to other accessories that support the same protocol for better performance.
- External Microphone for Audio Monitoring: The extended microphone cable allows for discreet placement inside the vehicle cabin for audio monitoring.
- تنبيهات متعددة: Instant alerts for atypical events such as abnormal vibration, low battery, shutdown, overspeed, and more.
تحديد
| ميزة | التفاصيل |
|---|---|
| أبعاد المنتج | 5.71 × 7.09 × 1.57 بوصة |
| وزن العنصر | 11.2 أونصات |
| البطاريات | مطلوب بطارية ليثيوم بوليمر واحدة (متضمنة) |
| تكنولوجيا الاتصال | RF |
| المميزات الخاصة | Alert Notification, SOS, Location History, Real Time Tracking |
| التطبيقات المدعومة | الرسائل النصية |
| مادة | بلاستيك |
| الشركة المصنعة | concox |
يثبت
ماذا يوجد في الصندوق
- GT06N GPS Tracker Unit
- كابل الطاقة الرئيسي
- التتابع
- زر الاستغاثة
- ميكروفون
- دليل المستخدم (هذا المستند)
دليل التثبيت
Professional installation is recommended for optimal performance and safety. Ensure the vehicle's power is off before beginning installation.
- إدخال بطاقة SIM: Open the SIM card slot cover on the device. Insert a valid GSM SIM card with GPRS data service enabled. Ensure the SIM card is inserted correctly according to the diagram on the device. Close the cover securely.
- توصيل الطاقة:
- Connect the red wire of the main power cable to the vehicle's positive power supply (+12V/24V).
- Connect the black wire to the vehicle's negative power supply (ground).
- Connect the orange wire to the ACC (ignition) wire of the vehicle. This allows the device to detect ignition status.
- Relay Installation (for Remote Cutoff):
- Identify the fuel pump or ignition circuit wire in the vehicle.
- Cut this wire and connect it to the normally closed (NC) terminals of the provided relay.
- Connect the relay's control wire to the corresponding output wire from the GT06N tracker (typically a yellow wire).
- SOS Button Connection: Connect the SOS button to the designated SOS input on the GT06N wiring harness. Mount the button in an easily accessible but discreet location within the cabin.
- اتصال الميكروفون: Connect the external microphone to the audio input port on the GT06N wiring harness. Route the microphone cable and place the microphone in a suitable location for audio monitoring, such as near the driver's seat.
- وضع الجهاز: Mount the GT06N securely in a hidden location within the vehicle, away from direct sunlight and extreme temperatures. Ensure the GPS antenna side faces upwards towards the sky for optimal signal reception. Avoid placing it near large metal objects that could obstruct GPS signals.
- التشغيل الأولي: After all connections are made, turn on the vehicle's power. The device will power on automatically. Observe the LED indicators for status (GPS, GSM).
تعليمات التشغيل
التشغيل الأساسي
The GT06N operates primarily through SMS commands or a dedicated tracking platform (if provided by your service provider). Refer to your service provider's documentation for platform-specific instructions.
- Location Query: Send an SMS command (e.g., "WHERE#") to the device's SIM card number to receive its current location via SMS link.
- تحديد أرقام الطوارئ: Configure up to 3 SOS numbers by sending an SMS command (e.g., "SOS,A,1234567890#").
- حالة الإشعال: The device automatically reports ignition status changes to the tracking platform.
التنبيهات والإشعارات
The GT06N can generate various alerts, which are typically sent to pre-configured numbers or the tracking platform.
- إنذار الاهتزاز: Triggered when the vehicle experiences abnormal vibration.
- إنذار انخفاض البطارية: Notifies when the internal battery voltagهـ منخفضة.
- Power Off Alarm: Alerts if the main power supply to the device is disconnected.
- إنذار السرعة الزائدة: Activated if the vehicle exceeds a predefined speed limit.
- إنذار السياج الجغرافي: Alerts when the vehicle enters or exits a predefined geographic area.
وظيفة SOS
In an emergency, press and hold the SOS button for 3 seconds. The device will send an SOS alert to the pre-configured SOS numbers and the tracking platform. It will also initiate calls to the SOS numbers in a loop until one is answered.
Remote Cutoff (Fuel/Power)
This feature allows you to remotely cut off the vehicle's fuel or power supply via SMS command or tracking platform. This function should only be used in emergency situations and when the vehicle speed is below 20 km/h to prevent accidents.
مراقبة الصوت
Dial the SIM card number of the GT06N from a pre-authorized phone number. The device will automatically answer, allowing you to listen to the audio environment around the installed microphone.
صيانة
- حافظ على الجهاز جافاً. فالرطوبة والسوائل قد تتسبب في تآكل الدوائر الإلكترونية.
- Do not store the device in extreme temperatures. High or low temperatures can shorten the life of electronic devices and damage batteries.
- Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the device. Wipe it with a soft, damp قطعة قماش.
- Do not disassemble or modify the device. Unauthorized modifications will void the warranty and may cause damage.
- Ensure the SIM card has sufficient balance and data plan for continuous operation.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الجهاز لا يعمل | Incorrect power connection; Blown fuse; Damaged device. | Check power wiring and fuse. Ensure correct voltagهـ. إذا استمرت المشكلة، فاتصل بالدعم الفني. |
| لا يوجد إشارة GPS | Poor device placement; Obstruction; Device not outdoors. | Relocate device to an area with clear sky view. Avoid metal obstructions. Test outdoors. |
| لا يوجد إشارة GSM | SIM card issue; Out of network coverage; SIM card not activated. | Check SIM card insertion and activation. Verify network coverage. Recharge SIM card balance if needed. |
| SMS commands not working | Incorrect command format; SIM card issues; Device not registered. | Verify SMS command syntax. Check SIM card balance and data. Ensure device is registered on the network. |
| Remote cutoff not working | Incorrect relay wiring; Vehicle speed too high; Device not receiving command. | Verify relay wiring. Ensure vehicle speed is below 20 km/h. Check GSM signal and command delivery. |
الضمان والدعم
This product is typically covered by a manufacturer's warranty. Please refer to the warranty card included with your purchase or contact your retailer for specific warranty terms and conditions. For technical support, installation assistance, or troubleshooting beyond this manual, please contact your product vendor or the manufacturer's authorized service center.
Protection plans may be available for extended coverage. For details on available protection plans, please refer to your purchase documentation or contact your retailer.
