GGM Gastro GGBPF652 Gas Griddle Instruction Manual

1. المقدمة

This instruction manual provides important information for the safe and efficient installation, operation, maintenance, and troubleshooting of your GGM Gastro GGBPF652 Gas Griddle. Please read this manual thoroughly before using the appliance and keep it for future reference. This appliance is designed for professional use.

The GGM Gastro GGBPF652 is a high-quality, 2-burner gas griddle with a 6 mm thick brushed steel cooking plate, designed for reliable performance in commercial kitchens. It features electric ignition, a safety thermocouple, and a grease collection drawer for convenience.

2. تعليمات السلامة

التزم دائمًا بإرشادات السلامة التالية لمنع الإصابة أو إتلاف الجهاز:

• توصيل الغاز: Ensure the appliance is connected to the correct gas supply (propane or natural gas) by a qualified technician. The unit is pre-set for propane gas, and natural gas injectors are included for conversion if needed.
• تهوية: It is highly recommended to use an extraction system to ensure optimal performance and safe operation, preventing the buildup of combustion byproducts.
• Thermocouple Safety: The griddle is equipped with a safety thermocouple element that monitors the flame. If the flame extinguishes, the thermocouple will automatically cut off the gas supply to prevent gas leakage.
• حرارة السطح: The cooking surface and surrounding areas will become very hot during operation. Use caution and appropriate protective gear to avoid burns.
• الاستخدام الأولي: The appliance is delivered with a protective film and an oil film on the cooking surface to protect it against corrosion. Remove the protective film before first use. The oil film will burn off during initial heating.
• تغير اللون: It is normal for the cooking plates to discolor after the first use. This does not affect performance or safety.
• تنظيف: Always disconnect the appliance from the gas supply and allow it to cool completely before cleaning.
• امتثال: This appliance is manufactured in accordance with hygiene and safety directives and bears the CE mark. All materials comply with European food standards.

3. انتهى المنتجview

The GGM Gastro GGBPF652 Gas Griddle is a robust tabletop unit constructed from high-quality stainless steel. It features a smooth, brushed steel cooking surface with a groove and drainage opening for efficient grease management.

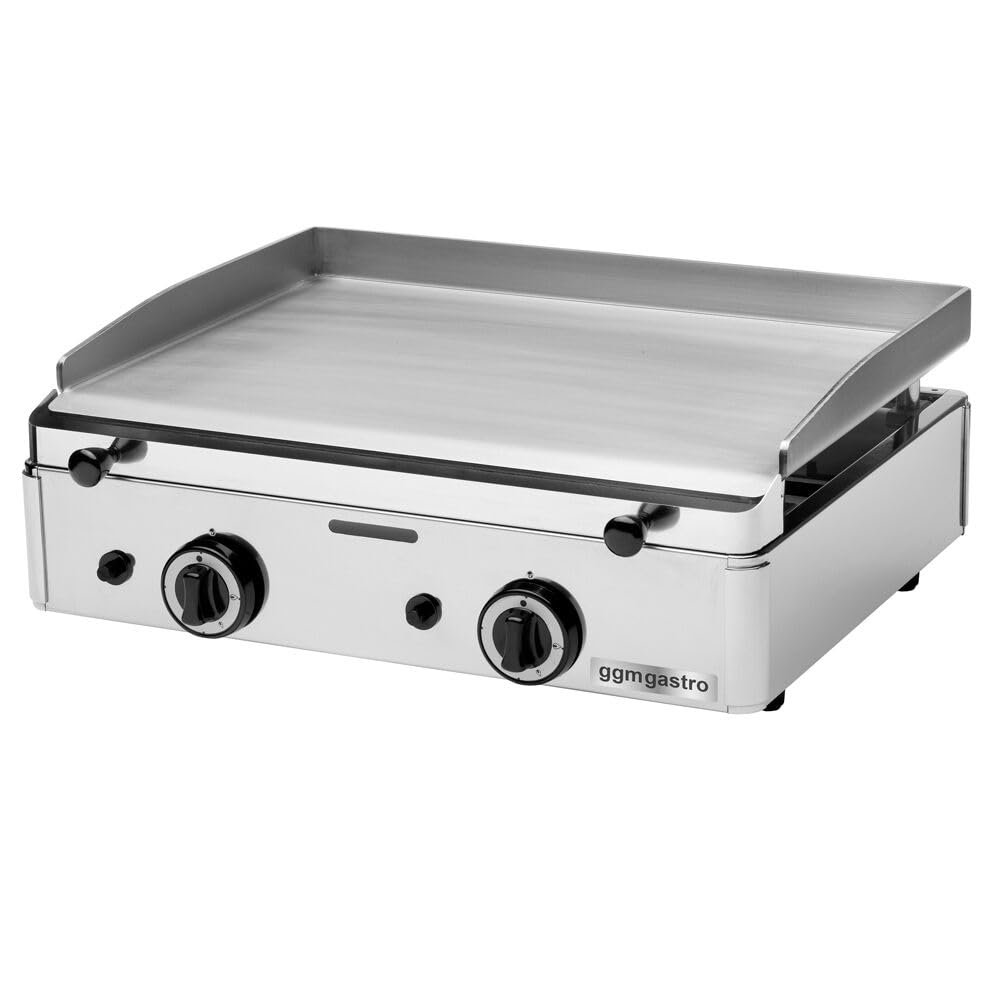

الشكل 1: الجبهة view of the GGM Gastro GGBPF652 Gas Griddle, showing controls and cooking surface.

المميزات الرئيسية:

• 2-burner gas cooking plate
• 6 mm thick brushed steel cooking surface
• الاشتعال الكهربائي
• Safety thermocouple element
• Grease collection drawer
• واقي من الرش
• ترموستات الأمان
• High-quality stainless steel body
• تصميم مدمج ويوفر المساحة

4. الإعداد

1. فك التعبئة: Carefully remove the griddle from its packaging. Inspect for any shipping damage.
2. الموقع: Place the griddle on a stable, heat-resistant, non-combustible surface. Ensure adequate clearance from walls and other equipment for ventilation and safety. As a tabletop version, it should be placed on a suitable counter.
3. Protective Films: Remove any protective plastic films from the stainless steel surfaces and the cooking plate. The cooking plate may have an oil film for corrosion protection; this will burn off during initial heating.
4. توصيل الغاز: Connect the griddle to the appropriate gas supply. This must be performed by a certified gas technician. The unit is pre-set for propane gas (5.50 kW). If using natural gas (5 kW), the included natural gas injectors must be installed by a qualified technician.
5. تهوية: Ensure that an adequate extraction system is in place and operational above the griddle to remove cooking fumes and heat.
6. Grease Drawer: Insert the grease collection drawer into its designated slot at the front of the griddle.

5. تعليمات التشغيل

1. التسخين المسبق: Turn the gas control knob to the desired flame setting (large or small flame). Press and hold the knob while simultaneously pressing the electric ignition button until the burner ignites. Continue to hold the knob for a few seconds to allow the thermocouple to heat up and engage. Release the knob; the flame should remain lit.
2. التحكم في درجة الحرارة: Adjust the gas control knobs to achieve the desired cooking temperature. The griddle features two independent burners for flexible temperature zones.
3. طبخ: Once the griddle reaches the desired temperature, place food directly onto the cooking surface.
4. Post-cooking: After cooking, turn the gas control knobs to the 'OFF' position. Allow the griddle to cool down completely before cleaning.

ملاحظة هامة: It is normal for the brushed steel cooking plate to show discoloration after initial use and continued operation. This is a cosmetic change and does not affect the griddle's performance or food safety.

6. الصيانة والتنظيف

Regular cleaning and maintenance will ensure the longevity and optimal performance of your GGM Gastro GGBPF652 Gas Griddle. Always ensure the appliance is cool and disconnected from the gas supply before cleaning.

• التنظيف اليومي:
  • Remove the grease collection drawer and empty it. Clean the drawer with warm, soapy water and rinse thoroughly.
  • Scrape any food residue from the cooking surface using a griddle scraper.
  • امسح سطح الطهي بالإعلانamp cloth and mild detergent. For stubborn residue, a non-abrasive griddle cleaner can be used. Rinse thoroughly to remove all detergent.
  • Clean the stainless steel exterior with a soft cloth and a stainless steel cleaner. Avoid abrasive cleaners or scouring pads that can scratch the surface.
• تنظيف عميق: Periodically, a more thorough cleaning of the burners and internal components may be required. This should be performed by a qualified technician.
• تقتيش: Regularly inspect gas connections and hoses for any signs of wear or damage. Any issues should be addressed by a qualified technician immediately.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your griddle, refer to the following common troubleshooting steps:

• Burner does not ignite:
  • Check if the gas supply is open and connected correctly.
  • Ensure the gas control knob is pressed in while attempting ignition and held for a few seconds after ignition.
  • Verify that the electric ignition button is functioning.
• Flame extinguishes during operation:
  • This is likely due to the safety thermocouple activating. Ensure the flame is stable and not being blown out by drafts.
  • If the issue persists, contact a qualified technician to inspect the thermocouple and gas supply.
• تدفئة غير متساوية:
  • Ensure the griddle is level.
  • Check for any blockages in the burner ports.

For issues not covered here, or if problems persist, contact GGM Gastro customer support or a certified service technician.

8. المواصفات

Figure 2: Dimensions of the GGM Gastro GGBPF652 Gas Griddle (L x D x H: 620 mm x 510 mm x 235 mm).

9. الضمان والدعم

معلومات الضمان:

This GGM Gastro GGBPF652 Gas Griddle comes with a limited warranty. Please refer to the warranty documentation provided with your purchase for specific terms, conditions, and duration of coverage. Keep your proof of purchase for warranty claims.

دعم العملاء:

For technical assistance, spare parts, or service inquiries, please contact GGM Gastro customer support. Have your model number (GGBPF652) and purchase date ready when contacting support.
