MaxPower EU-331416 Lawn Mower Blade Instruction Manual

المنتج انتهىview

The MaxPower EU-331416 Lawn Mower Blade is a high-quality replacement part designed to meet OEM specifications for MTD and CUB CADET lawn mowers. Manufactured in Glennville, Georgia, USA, this blade is crafted from durable 10B38 boron steel, ensuring excellent wear resistance and a long-lasting sharp edge.

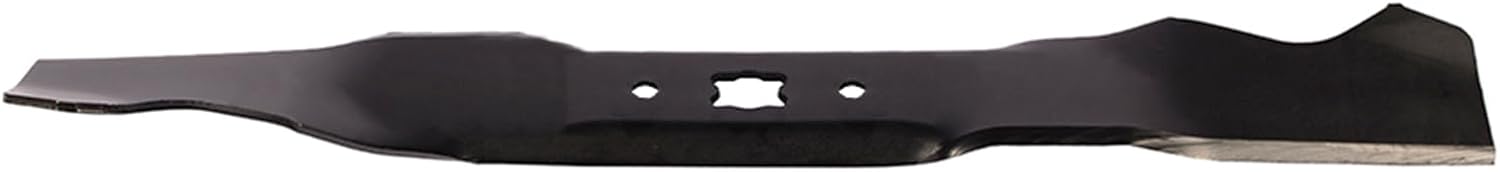

Image: The MaxPower EU-331416 lawn mower blade, a black, flat metal blade with a central bow-tie shaped hole and two smaller circular holes, designed for cutting grass.

المميزات الرئيسية:

• Replaces OEM reference: 742-0738, 742-0738-637
• Blade length: 457.2 millimeters (18 inches)
• Center hole diameter/shape: Bow-Tie
• Material thickness: 3.4 millimeters
• Manufactured from high-quality 10B38 boron steel

Image: A diagram illustrating the "Bow-Tie" shape of the central mounting hole on the blade, shown in white against a black background with green text "BOW-TIE +".

Image: The "Made in USA" logo, featuring a stylized American flag design with a star and stripes, indicating the product's origin.

تحذيرات السلامة

انتباه: Before commencing any work on your lawn mower, always refer to the maintenance instructions provided in your appliance's user manual. Ensure the engine is completely turned off and the spark plug wire is disconnected to prevent accidental starting.

Always wear appropriate personal protective equipment (PPE), including heavy-duty gloves and eye protection, when handling or replacing the mower blade.

تعليمات التثبيت

1. تحضير جزازة العشب: Ensure the lawn mower engine is off and cool. Disconnect the spark plug wire to prevent accidental starting. If possible, tilt the mower onto its side with the carburetor facing up to prevent fuel leakage.
2. إزالة الشفرة القديمة: Secure the old blade from rotating (e.g., by wedging a block of wood between the blade and the mower deck). Using a wrench, loosen and remove the blade bolt(s) holding the old blade in place. Carefully remove the old blade, noting its orientation.
3. فحص المكونات: Inspect the blade mounting area for any damage or debris. It is highly recommended to replace the blade bolt(s) and washer(s) when installing a new blade to ensure proper torque and secure fitting.
4. تركيب شفرة جديدة: Position the new MaxPower blade onto the mower shaft, ensuring the cutting edge faces the correct direction (usually indicated by an arrow on the blade or the mower deck). The "Bow-Tie" center hole should align perfectly with the mower's shaft.
5. Tighten Blade Bolt: Reinstall the blade bolt(s) and washer(s). Using a torque wrench, tighten the blade bolt(s) to the manufacturer's specified torque setting (refer to your mower's user manual for the exact torque specification). لا تقم بالإحكام الزائد أو التضييق بشكل غير كافٍ.
6. Verify Free Rotation: After tightening, manually rotate the new blade to ensure it spins freely without touching the mower housing or any other components.
7. أعد توصيل شمعة الإشعال: بمجرد اكتمال التثبيت والتحقق منه، أعد توصيل سلك شمعة الإشعال.

Note: For specific torque values and detailed steps, always consult your lawn mower's original instruction manual.

Image: An informational graphic titled "CUT OUT THE CONFUSION" explaining what an OEM number is and how to find it, with text in English, Dutch, and French.

الصيانة والعناية

While the MaxPower blade is designed for durability, regular inspection is crucial for optimal performance and safety. Periodically check the blade for:

• حدة: A sharp blade provides a clean cut, promoting healthier grass. If the blade becomes dull, it can be sharpened by a professional or with appropriate tools, ensuring proper balance afterward.
• ضرر: Inspect for bends, cracks, or excessive wear. A damaged blade can cause vibrations, poor cutting performance, and pose a safety risk. Replace any damaged blade immediately.
• توازن: An unbalanced blade can cause excessive vibration, leading to premature wear on mower components and an uneven cut. If sharpening, ensure the blade remains balanced.

Clean the blade and the underside of the mower deck after each use to prevent grass clippings from building up, which can affect cutting performance and lead to corrosion.

استكشاف الأخطاء وإصلاحها

Blade Vibrates Excessively:

• التحقق من التثبيت: Ensure the blade is correctly installed and the blade bolt(s) are tightened to the manufacturer's specified torque.
• فحص الضرر: A bent or damaged blade can cause vibration. Replace the blade if it is damaged.
• التحقق من الرصيد: An unbalanced blade will vibrate. If the blade has been sharpened, ensure it is properly balanced.
• حطام: Check for any debris caught on the blade or mower deck that might be causing imbalance.

أداء القطع ضعيف:

• بلادة الشفرة: The blade may be dull and require sharpening or replacement.
• التثبيت غير الصحيح: Ensure the blade is installed with the cutting edge facing the correct direction.
• Mower Deck Issues: Check if the mower deck is clogged with grass clippings or if the cutting height is set too low for the grass conditions.

تحديد

الضمان والدعم

MaxPower products are manufactured to high standards. For specific warranty information or technical support, please refer to the official MaxPower website or contact their customer service directly. Always ensure you have your product model number (EU-331416) and any relevant purchase information ready when seeking support.
