EMKE Electric Towel Warmer with WiFi Thermostat
(Model: 1320x400mm 600W, Anthracite)

1. المقدمة

Thank you for choosing the EMKE Electric Towel Warmer. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new appliance. Please read it thoroughly before use and retain it for future reference.

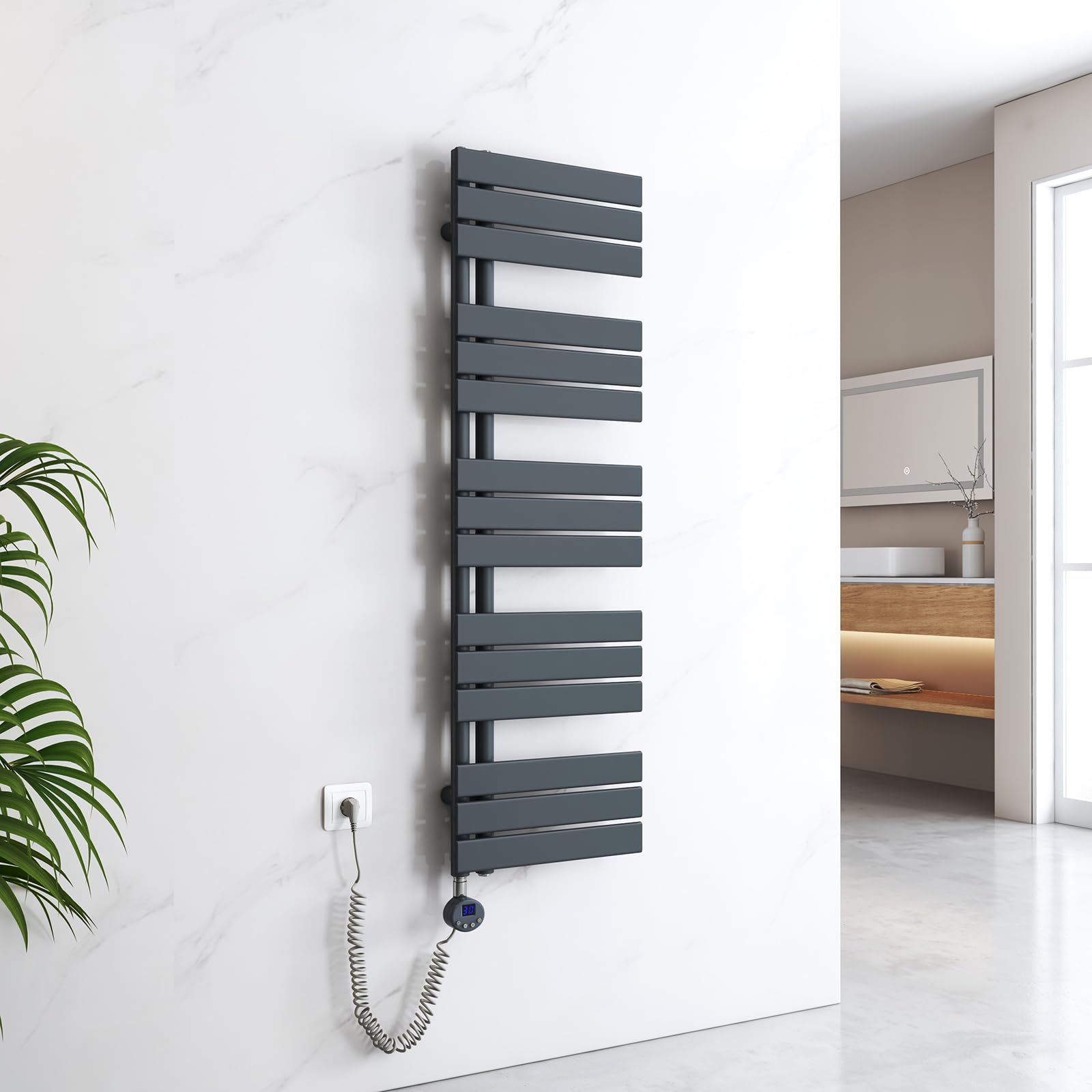

Figure 1: EMKE Electric Towel Warmer (Anthracite, 1320x400mm)

2. معلومات هامة حول السلامة

لضمان التشغيل الآمن ومنع الضرر، يرجى مراعاة إرشادات السلامة التالية:

• السلامة الكهربائية: Always disconnect the power supply before any installation, maintenance, or cleaning procedures. Only energize the unit after confirming the completion of installation.
• القرب من الماء: The towel warmer has an IP44 protection rating against splashing water, making it suitable for use in humid environments like bathrooms. However, avoid direct water jets or submersion.
• التثبيت الاحترافي: Installation should ideally be carried out by a qualified professional to ensure correct and safe setup.
• سلامة الطفل: The unit features a child lock function to prevent accidental changes to settings. Keep children away from the appliance during operation, especially when it is hot.
• حرارة السطح: The surface of the towel warmer can become hot during operation. Avoid prolonged direct contact to prevent burns.

3. انتهى المنتجview

The EMKE Electric Towel Warmer is constructed from high-quality Q195 low-carbon steel, known for its excellent thermal conductivity and durability. It features an ecological protective coating and an optimized design for efficient heating and energy saving.

Figure 2: High-quality materials and construction details. This image illustrates the high-quality SPCC low-carbon steel construction with an ecological protective coating, the adjustable wall distance (99-115mm), and the overlap welding technique designed to prevent water leaks and ensure durability.

Video 1: Product Features Overview. This video demonstrates the robust construction of the EMKE electric towel warmer, including its high-quality materials and seamless welding process. It also illustrates its efficient heat dissipation for quick towel drying and the easy-to-use timer settings.

4. الإعداد (التثبيت)

The electric towel warmer comes pre-installed with the electric heating element and antifreeze. You only need to install the thermostatic head onto the heating rod. Ensure the power supply is disconnected before beginning installation.

• التركيب: Securely mount the towel warmer to the wall using the provided brackets. The adjustable wall distance is between 99-115 mm.
• التوصيل الكهربائي: Connect the unit to a suitable power outlet. Ensure the electrical installation complies with local regulations.
• التحقق النهائي: After installation, ensure all connections are secure and the unit is stable before restoring power.

Figure 3: Installation Dimensions. This diagram provides detailed dimensions (height, width), number of tubes, power, recommended application area, net weight, and distances between mounting holes (vertical and horizontal) for different models of the EMKE electric towel warmer.

5. تعليمات التشغيل

5.1 الإعداد الأولي والاتصال

Your EMKE towel warmer can be controlled via its integrated thermostat, a smartphone app, or voice commands.

• اتصال التطبيق: Download the Tuya or Smart Life app on your smartphone. Follow the in-app instructions to connect your towel warmer to your home WiFi network.
• تكامل المساعد الصوتي: Once connected to the app, you can link it with Google Home or Amazon Alexa for voice control.

Figure 4: Smart Control Options. This image illustrates how to control the towel warmer remotely using a smartphone application and through simple voice commands with a smart speaker like Alexa.

5.2 Control Panel and Buttons

The integrated control panel allows for direct adjustment of settings:

• زر الطاقة: يقوم بتشغيل الوحدة أو إيقاف تشغيلها.
• زر تغيير الوضع: Cycles through the available operating modes.
• Temperature/Time Adjustment Buttons (+/-): Increases or decreases the temperature setting or timer duration.

Figure 5: Control Panel Details. A close-up view of the control panel, showing the ambient temperature sensor (7-30°C range), programmable timer (7 days/24 hours), and buttons for decreasinغرام/إنكرasing temperature/time, changing mode, and power on/off.

5.3 Operating Modes and Temperature Settings

The towel warmer offers four distinct operating modes and an ambient temperature sensor with a range of 7-30°C. The thermostat allows temperature control between 30-70°C.

• وضع الراحة: Standard temperature of 19°C, adjustable between 7°C and 30°C.
• نمط الصدى: Standard temperature of 15°C, adjustable between 7°C and 30°C.
• وضع التعزيز: Rapid heating to 70°C with a single button press.
• وضع منع التجمد: Automatically activates when the room temperature drops below 7°C to prevent freezing.

Figure 6: Operating Modes. This image explains the four operational modes: Comfort, Eco, Boost, and Anti-freeze, along with an example of a programmable weekly schedule.

5.4 Programmable Timer and Memory Function

The towel warmer includes a programmable timer for 24 hours, 7 days a week, allowing you to set specific heating schedules. The memory function ensures that your preferred settings are saved even after power interruptions.

Figure 7: Temperature Compensation and Memory. This image demonstrates the temperature compensation feature, which adjusts the heating based on ambient conditions, and the memory function, which retains your preferred settings.

Figure 8: Window Detection and Child Lock. This image highlights the window detection function, which can automatically adjust heating when a window is open, and the child lock feature for safety.

Video 2: Smart Features and Timer. This video provides a visual guide to the smart functionalities of the EMKE electric towel warmer, showcasing remote control via smartphone app, voice commands, the quality of its construction materials, and its efficient quick-drying performance.

6. الصيانة

تضمن الصيانة الدورية طول عمر جهاز تدفئة المناشف وأدائه الأمثل.

• تنظيف: امسح السطح بقطعة ناعمة ، دamp لا تستخدم المنظفات الكاشطة أو المذيبات أو المواد الكيميائية القاسية، لأنها قد تؤدي إلى إتلاف الطبقة النهائية.
• تقتيش: Periodically check the power cord and plug for any signs of damage. If damage is found, contact a qualified technician for repair.
• إزالة الغبار: Ensure the heating elements are free from dust and debris to maintain heating efficiency.

7. استكشاف الأخطاء وإصلاحها

If you encounter any issues with your EMKE Electric Towel Warmer, please refer to the following common troubleshooting steps:

• الوحدة لا تقوم بالتدفئة: Check if the unit is properly plugged into a working power outlet. Ensure the power button is on and the desired temperature/mode is selected. Verify that the circuit breaker has not tripped.
• مشكلات اتصال التطبيق: Ensure your WiFi network is active and the towel warmer is within range. Restart your router and the towel warmer. Re-attempt the pairing process in the Tuya/Smart Life app.
• قراءة غير دقيقة لدرجة الحرارة: Ensure the ambient temperature sensor is not obstructed or exposed to direct drafts or heat sources that could affect its reading.
• رموز الخطأ: If the display shows an error code, consult the app for specific meanings or contact customer support.

إذا استمرت المشكلة بعد محاولة اتباع هذه الخطوات، فيرجى الاتصال بدعم العملاء للحصول على مزيد من المساعدة.

8. المواصفات الفنية

9. الضمان والدعم

EMKE products are manufactured to high-quality standards and come with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions.

For technical support, troubleshooting assistance, or warranty claims, please contact EMKE customer service through the retailer where you purchased the product or visit the official EMKE webموقع لمعلومات الاتصال.
