Occus 969A Electric Soldering Iron Instruction Manual

1. المقدمة

Thank you for choosing the Occus 969A Electric Soldering Iron. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new soldering station. Please read this manual thoroughly before use and retain it for future reference.

The Occus 969A is an anti-static, temperature-controlled soldering station designed for precision soldering tasks. Its adjustable and constant temperature features ensure reliable performance for various electronic applications.

2. معلومات السلامة

يجب دائمًا مراعاة احتياطات السلامة التالية لمنع الإصابة وتلف المعدات:

• السلامة الكهربائية: Ensure the power supply matches the requirements specified on the unit. Do not operate the soldering iron with wet hands or in damp شروط.
• خطر الحرارة: The soldering iron tip reaches very high temperatures. Avoid direct contact with the tip or heating element. Always use the provided stand when the iron is not in use.
• Fume Safety: ينتج عن عملية اللحام أبخرة. لذا، اعمل في منطقة جيدة التهوية أو استخدم جهاز شفط الأبخرة لتجنب استنشاق الأبخرة الضارة.
• الوقاية من الحرائق: Keep flammable materials away from the soldering area. Ensure the iron is completely cooled before storing.
• احتياطات مكافحة الكهرباء الساكنة: This unit features anti-static design. When working with sensitive electronic components, ensure proper grounding practices are followed.
• الأطفال والحيوانات الأليفة: Keep the soldering station and all accessories out of reach of children and pets.
• صيانة: Disconnect power before performing any maintenance or changing tips.

3. محتويات العبوة

يرجى التحقق من الحزمة للعناصر التالية:

• Occus 969A Soldering Station Control Unit
• Soldering Iron Handle with Tip
• حامل مكواة اللحام
• سلك الطاقة
• دليل التعليمات (هذا المستند)

Image showing the main control unit of the Occus 969A Electric Soldering Iron, featuring a digital temperature display and control buttons.

4. مواصفات المنتج

• التحكم الرقمي في درجة الحرارة: Precise temperature adjustment and stable output.
• Anti-Static Design: يحمي المكونات الإلكترونية الحساسة من التفريغ الكهروستاتيكي.
• التسخين السريع: Quick heat-up time for efficient work.
• Constant Temperature Function: Maintains desired temperature during operation.
• Ergonomic Soldering Iron: قبضة مريحة للاستخدام لفترة طويلة.

5. الإعداد

1. أفرغ: قم بإزالة جميع المكونات بعناية من العبوة.
2. الموقع: Place the soldering station on a stable, heat-resistant surface, away from flammable materials.
3. توصيل مكواة اللحام: Connect the soldering iron handle cable to the designated port on the front of the control unit. Ensure a secure connection.
4. Position Iron Stand: Place the soldering iron stand in a convenient and safe location near the station.
5. توصيل الطاقة: Connect the power cord to the back of the control unit, then plug it into a suitable grounded electrical outlet.

عن قرب view of the soldering iron handle and its replaceable tip, designed for precision work.

6. تعليمات التشغيل

1. تشغيل الطاقة: Flip the power switch located on the front or side of the control unit to the "ON" position. The digital display will illuminate.
2. ضبط درجة الحرارة: Use the temperature adjustment buttons (usually up/down arrows or a rotary knob) to set the desired soldering temperature. The display will show both the set temperature and the current tip temperature.
3. تسخين: Allow the soldering iron to heat up to the set temperature. This usually takes a short period, indicated by the current temperature reaching the set temperature.
4. صبغ النصيحة: Before first use and periodically during operation, tin the soldering iron tip by applying a small amount of solder to it. This helps prevent oxidation and improves heat transfer.
5. اللحام: Place the hot tip against the joint to be soldered, ensuring it heats both the component lead and the pad simultaneously. Apply solder to the heated joint, not directly to the iron tip. Remove the solder, then remove the iron.
6. Resting the Iron: Always place the soldering iron back into its stand when not actively soldering.
7. إيقاف التشغيل: When finished, turn off the power switch and allow the iron to cool completely before storing.

A hand interacting with the control panel of the soldering station, demonstrating the adjustable temperature feature.

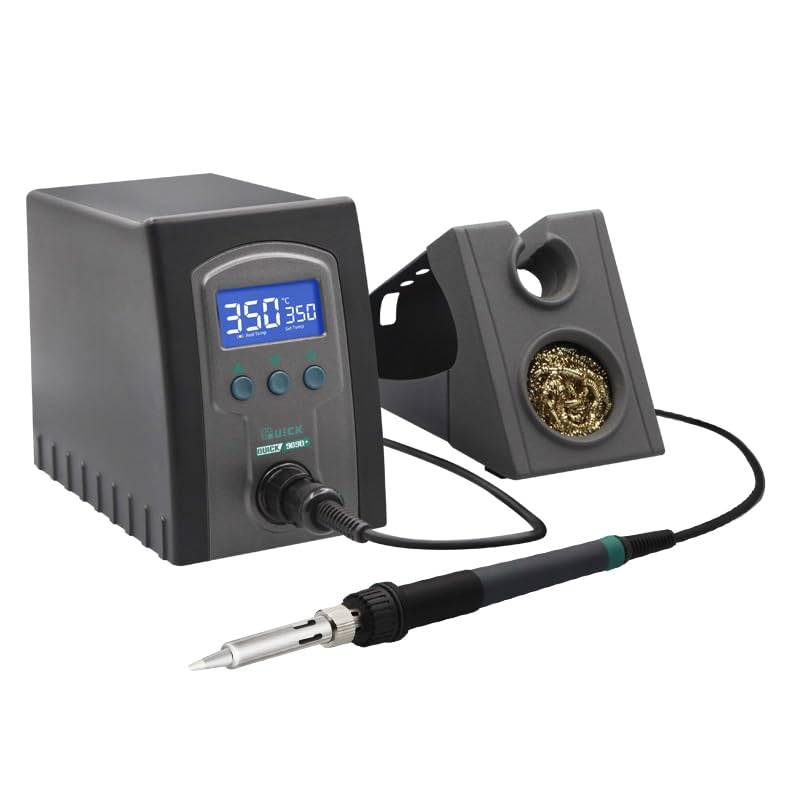

آخر view of the Occus 969A soldering station, highlighting the clear digital display showing both real and set temperatures.

7. الصيانة

• نصائح التنظيف: Regularly clean the soldering iron tip using a damp sponge or brass wool to remove excess solder and oxidation.
• نصيحة حول طلاء القصدير: Always tin the tip before and after each soldering session to prolong its life and maintain performance.
• استبدال النصيحة: If the tip becomes severely oxidized or damaged, replace it with a compatible Occus soldering tip. Ensure the unit is cool and unplugged before changing tips.
• تنظيف الوحدة: Wipe the control unit and iron handle with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• تخزين: Store the soldering station in a dry, dust-free environment once it has completely cooled down.

8. استكشاف الأخطاء وإصلاحها

9. المواصفات

10. الضمان والدعم

This product is covered by a standard manufacturer's warranty. Please refer to the retailer's return policy for details regarding returns and exchanges. For technical support or inquiries about replacement parts, please contact your point of purchase or the manufacturer directly.

احتفظ بإيصال الشراء الخاص بك كدليل على الشراء في حالة مطالبات الضمان.
