HTVRONT Mini Sewing Machine User Manual

1. المقدمة

This manual provides instructions for the safe and efficient use of your HTVRONT Mini Sewing Machine. Please read all instructions carefully before operating the machine and retain this manual for future reference.

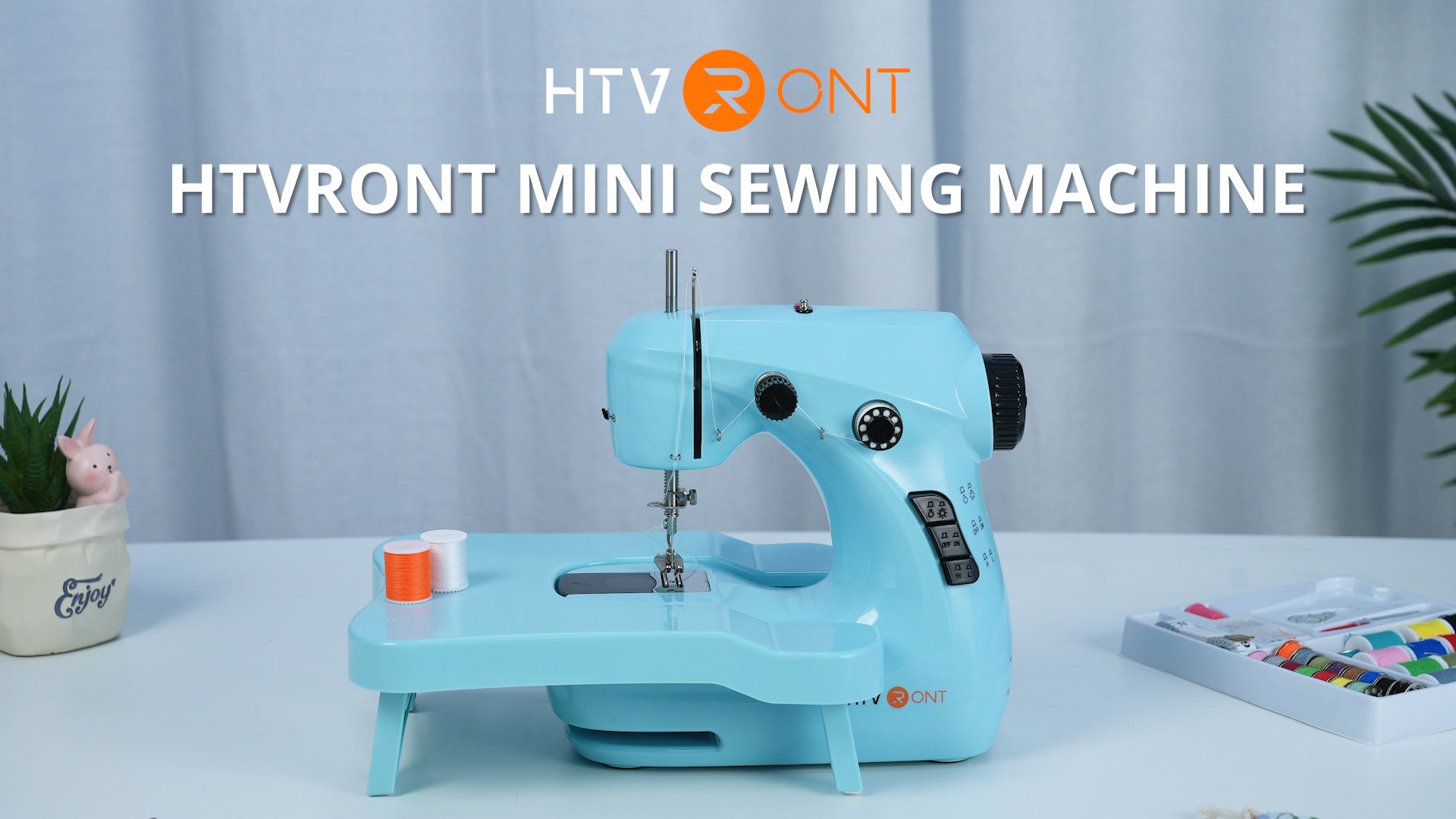

The HTVRONT Mini Sewing Machine is designed for basic sewing tasks, suitable for beginners and small projects. It features dual speed settings, a foot pedal, and an extension table for convenience.

2. تحديد الأجزاء

Familiarize yourself with the components of your sewing machine:

صورة: Labeled diagram of the HTVRONT Mini Sewing Machine, indicating components such as Takeup Lever, Spool Spindle, Thread Spool, Bobbin Winder Spool, Hand Wheel, Bobbin Spindle, ON/OFF Light, ON/OFF Switch, Speed Button, Tension Adjusting Screw, Bobbin Compartment, Bobbin Holder, Needle Clamp Screw, Thread Cutter, Light, Needle Clamp, and Needle.

• Takeup Lever: يرشد الخيط العلوي.
• Spool Spindle: يحمل بكرة الخيط.
• Thread Spool: Where the main thread is placed.
• Bobbin Winder Spool: Used for winding thread onto bobbins.
• عجلة اليد: يرفع ويخفض الإبرة يدويًا.
• Bobbin Spindle: Holds the bobbin during sewing.
• ضوء التشغيل/الإيقاف: Controls the sewing light.
• مفتاح تشغيل / إيقاف: يقوم بتشغيل الجهاز أو إيقاف تشغيله.
• زر السرعة: Adjusts sewing speed (High/Low).
• Tension Adjusting Screw: يتحكم في شد الخيط العلوي.
• Bobbin Compartment: Houses the bobbin.
• Bobbin Holder: Secures the bobbin.
• إبرة Clamp برغي: Secures the needle.
• قاطع الخيط: For easily cutting threads.
• ضوء: ينير منطقة الخياطة.
• إبرة Clamp: Holds the needle in place.
• إبرة: يقوم بعملية الخياطة.

3. محتويات العبوة

تأكد من وجود جميع العناصر في العبوة:

صورة: The HTVRONT Mini Sewing Machine shown with its accessories, including the extension table, foot pedal, power adapter, needle threader, needles, metal bobbins, and a 42-piece starter sewing kit.

• HTVRONT Mini Sewing Machine
• طاولة تمديد
• دواسة القدم
• محول الطاقة
• 42 Pcs Sewing Set (including bobbins, spools of thread, thimble, needle threader, tape measure, thread scissors, machine needles)
• إبرة عراف
• Metal Bobbins (pre-installed and spares)
• دليل التعليمات

صورة: مفصل view of the 42-piece sewing kit, showing 16 pre-filled bobbins, 16 spools of thread, 1 thimble, 1 needle threader, 1 tape measure, 1 pair of thread scissors, and 5 machine needles.

4. الإعداد

4.1 مصدر الطاقة

The machine supports two power supply modes:

1. محول الطاقة: Connect the provided power adapter to the machine's DC input jack and plug it into a standard electrical outlet.
2. طاقة البطارية: For wireless operation, insert 4 AA batteries (not included) into the battery compartment located at the bottom of the machine. Ensure correct polarity.

صورة: The power adapter and the battery compartment, illustrating options for powering the sewing machine.

4.2 تركيب جدول التمديد

To provide a larger working area, slide the extension table onto the machine's free arm until it clicks securely into place.

4.3 تركيب الخيوط في الماكينة

Correct threading is essential for proper stitching. Follow these steps carefully:

صورة: A visual guide illustrating the correct threading path (a-b-c-d-e-f-g-h) for the HTVRONT Mini Sewing Machine, along with a list of included accessories.

1. Place a spool of thread on the spool spindle (1).
2. Guide the thread through the first thread guide (a).
3. Continue guiding the thread through the second thread guide (b).
4. Pass the thread through the tension disc (c).
5. Thread the take-up lever from right to left (d).
6. Guide the thread through the next thread guide (e).
7. Pass the thread through the needle clamp thread guide (f).
8. Use the needle threader to thread the needle from left to right (g).
9. Pull about 4 inches of thread through the needle eye (h).

4.4 تركيب البكرة

1. افتح غطاء حجرة المكوك.
2. Insert a pre-wound bobbin into the bobbin holder, ensuring the thread unwinds in the correct direction (usually counter-clockwise).
3. Pull the bobbin thread through the small slot in the bobbin holder.
4. Close the bobbin compartment cover.
5. Turn the hand wheel towards you to lower the needle, catching the bobbin thread. Pull the upper thread gently to bring the bobbin thread up through the needle plate.
6. اسحب كلاً من خيط الخيط العلوي وخيط المكوك أسفل دواسة الضغط باتجاه الجزء الخلفي من الماكينة.

5. تعليمات التشغيل

5.1 Basic Sewing Steps

صورة: A visual guide demonstrating four easy steps for using the sewing machine: 1. Threading, 2. Placing fabric on the platform, 3. Pressing the switch to start sewing, and 4. Completing your design.

1. Ensure the machine is properly threaded and powered on.
2. Lift the presser foot using the lever at the back of the needle bar.
3. Place the fabric under the presser foot, aligning the edge with the desired seam allowance.
4. Lower the presser foot onto the fabric.
5. Select your desired speed using the H/L (High/Low) speed button.
6. Start sewing by pressing the ON/OFF switch or by pressing the foot pedal.
7. Guide the fabric gently as the machine stitches. Do not pull or push the fabric forcefully.
8. When finished, stop the machine, raise the needle to its highest position, lift the presser foot, and pull the fabric out.
9. Use the built-in thread cutter to snip the threads.

5.2 ضبط السرعة

The machine offers two speed settings:

• منخفض (ل): Recommended for beginners or intricate work.
• مرتفع (H): For faster sewing on straight seams.

Press the speed button on the side of the machine to toggle between 'H' and 'L'.

صورة: Close-up of the control panel on the side of the sewing machine, showing buttons for light ON/OFF, power ON/OFF, and speed selection (H/L).

5.3 استخدام دواسة القدم

The foot pedal provides hands-free control over the sewing speed. Connect the foot pedal to the designated jack on the machine. When the foot pedal is connected, the ON/OFF switch on the machine will act as a power switch, and the foot pedal will control the sewing action.

صورة: The foot pedal accessory, used for controlling the sewing machine's operation hands-free.

5.4 وظيفة الضوء

Press the light ON/OFF button to illuminate the sewing area for better visibility.

صورة: لقطة مقرّبة view of the sewing machine's built-in light, illuminating the needle and presser foot area for improved visibility during sewing.

5.5 تطبيقات

This mini sewing machine is suitable for a variety of light to medium fabrics and projects, including:

• Pet clothes
• فساتين
• Table mats
• المآزر
• حقائب اليد
• Small crafts and repairs

صورة: Examples of various items that can be sewn using the machine, such as clothes, pet clothes, curtains, bags, jeans, and ragdolls, demonstrating its wide application.

6. الصيانة

Regular maintenance helps ensure the longevity and smooth operation of your sewing machine.

• تنظيف: Regularly clean lint and dust from the bobbin area and under the needle plate using a small brush. Ensure the machine is unplugged before cleaning.
• استبدال الإبرة: Replace bent or dull needles promptly to prevent skipped stitches or fabric damage. Ensure the flat side of the needle faces the back of the machine when inserting.
• تخزين: When not in use, store the machine in a dry, dust-free environment.

For detailed maintenance procedures, please refer to the specific instructions provided in your product packaging or consult the manufacturer's support resources.

7. استكشاف الأخطاء وإصلاحها

If you encounter issues with your sewing machine, consider the following common solutions:

• تم تخطي الغرز: Check if the needle is inserted correctly, if it's bent or dull, or if the thread tension is appropriate.
• كسر الموضوع: Ensure the machine is threaded correctly, the thread tension is not too tight, and the thread is not tangled. Use good quality thread.
• الجهاز لا يبدأ: Verify that the power adapter is securely connected or that batteries are correctly installed and charged. Check the ON/OFF switch.
• غرز غير متساوية: Re-thread the machine completely, ensuring the bobbin is correctly seated and the tension is balanced.

For more complex issues, please refer to the comprehensive troubleshooting guide in your product packaging or contact HTVRONT customer support.

8. المواصفات

صورة: A diagram illustrating the compact dimensions of the HTVRONT Mini Sewing Machine with its extension table, showing measurements of 9.14 inches in height, 9.45 inches in width (with extension table), and 8.27 inches in depth.

9. الضمان والدعم

For information regarding the product warranty, please refer to the warranty card included in your product packaging or visit the official HTVRONT website. For technical support, replacement parts, or any other inquiries, please contact HTVRONT customer service through their official channels.
