XD Designs Full Over Twin & Twin Triple Bunk Bed Instruction Manual

1. معلومات هامة حول السلامة

Please read all instructions carefully before assembly and use of this bunk bed. Keep this manual for future reference.

• أقصى سعة للوزن: The upper bed supports up to 600 lbs. Each lower twin bed supports up to 400 lbs. Do not exceed these weight limits.
• حواجز الحماية: السرير العلوي مزود بحواجز حماية كاملة الطول. تأكد من تثبيتها بإحكام في مكانها دائماً لمنع السقوط.
• سمك المرتبة: For the upper bed, use a mattress no thicker than 6 inches. For the lower twin beds, use mattresses no thicker than 8 inches.
• حَشد: Adult assembly is required. Ensure all parts are correctly installed and fasteners are tightened before use. Periodically check and re-tighten all connections.
• Staircase: Use the provided staircase for safe access to the upper bed. Do not use chairs or other unstable objects.
• تهوية: تأكد من وجود تهوية كافية حول السرير.

2. انتهى المنتجview

The XD Designs Full Over Twin & Twin Triple Bunk Bed is designed to maximize space, offering a full-size bed on top and two twin-size beds below. It features an integrated staircase with storage drawers and additional under-bed storage drawers.

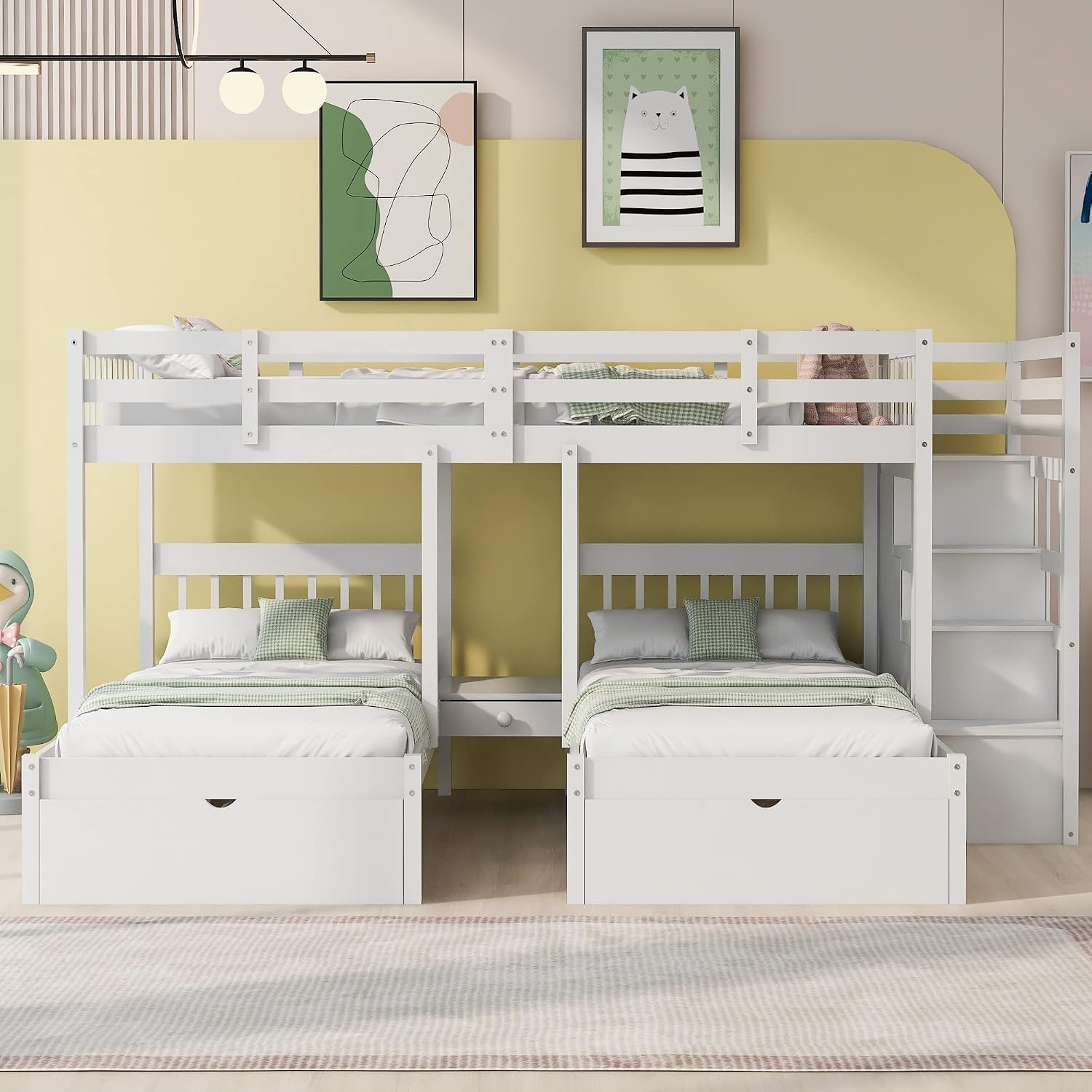

Figure 2.1: Fully assembled triple bunk bed with mattresses and bedding.

Figure 2.2: Components of the triple bunk bed, including the full-size upper frame, two twin-size lower frames, staircase with drawers, and under-bed storage drawers.

3. الإعداد والتجميع

Assembly of this bunk bed requires two adults. Ensure you have sufficient space and all components are present before beginning. Tools for assembly are included.

3.1 فك التغليف وتحديد الأجزاء

• Carefully unpack all boxes and lay out components on a soft, clean surface to prevent scratches.
• Refer to the included parts list and hardware diagram to identify all pieces. Contact customer service immediately if any parts are missing or damaged.

3.2 خطوات التجميع

Follow the detailed step-by-step instructions provided in the separate assembly guide included with your product. General steps include:

1. Assemble the two lower twin bed frames.
2. Assemble the upper full bed frame.
3. Attach the upper bed frame to the lower bed frames, ensuring all connections are secure.
4. Assemble and attach the staircase unit, including the storage drawers. The staircase can be interchanged to the left or right side to meet different layout requirements.
5. Assemble the under-bed storage drawers and slide them into place.
6. Install all bed slats for mattress support.
7. Ensure all bolts, screws, and fasteners are fully tightened. Do not overtighten.

Figure 3.1: Frame structure of the triple bunk bed during assembly, showing the upper and lower bed frames.

4. تعليمات التشغيل

This section provides guidance on the safe and proper use of your triple bunk bed.

4.1 Using the Beds

• Upper Bed: Always use the staircase for access. Ensure guardrails are properly installed and maintained.
• Lower Beds: These beds are designed for easy access and provide ampمساحة النوم.

4.2 Using the Staircase and Storage

The integrated staircase provides safe access to the upper bunk and includes convenient storage drawers.

Figure 4.1: Staircase with integrated storage drawers, providing easy access to the upper bed and additional storage.

• Staircase Drawers: Gently pull the handles to open the drawers. Do not overload drawers to ensure smooth operation and prevent damage.
• أدراج أسفل السرير: These provide additional storage. Pull them out from under the lower beds as needed.

5. الصيانة والعناية

الصيانة المناسبة ستطيل عمر سريرك ذي الطابقين وتضمن سلامته.

• تنظيف: مسح الأسطح بمادة ناعمة، دamp القماش. تجنب المواد الكيميائية القاسية أو المنظفات الكاشطة التي قد تؤدي إلى إتلاف الطبقة النهائية.
• فحص الأجهزة: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and fasteners. Re-tighten any that have become loose. Do not overtighten.
• السلامة الهيكلية: Regularly check for any signs of wear, damage, or instability in the wood frame or slats. Discontinue use if significant damage is found and contact customer support.
• صيانة الدرج: Keep drawer tracks clean and free of debris to ensure smooth operation.

6. استكشاف الأخطاء وإصلاحها

يتناول هذا القسم المشكلات الشائعة التي قد تواجهها.

7. المواصفات

Detailed product specifications for the Full Over Twin & Twin Triple Bunk Bed.

Figure 7.1: Detailed dimensions of the triple bunk bed.

• نوع المنتج: Full Over Twin & Twin Triple Bunk Bed
• Overall Product Dimensions (L x W x H): 114.8 بوصة × 76 بوصة × 64.6 بوصة
• لون: أبيض
• مادة: Plywood + Pinewood (Solid Wood, Engineered Wood)
• Upper Bed Weight Capacity: 600 رطل
• Lower Bed Weight Capacity (Each): 400 رطل
• Recommended Upper Bed Mattress Thickness: 6 بوصة
• Recommended Lower Bed Mattress Thickness (Each): 8 بوصة
• Number of Slats (Upper Bed): 14
• Number of Slats (Lower Bed, Each): 7
• يلزم وجود قاعدة سرير: لا
• التجميع مطلوب: نعم
• وزن السلعة: حوالي 318 رطلاً
• بلد المنشأ: فيتنام

8. الضمان والدعم

XD Designs is committed to providing quality products and customer satisfaction.

8.1 ضمان المنتج

يأتي هذا المنتج مع ضمان المنتج لمدة عامين من تاريخ الشراء، مع تغطية عيوب التصنيع. يُرجى الاحتفاظ بإيصال الشراء للمطالبة بالضمان.

8.2 دعم العملاء

If you have any questions regarding assembly, missing parts, product operation, or warranty claims, please do not hesitate to contact our customer service representatives. We are here to assist you.

معلومات الاتصال:

• راجع وثائق الشراء الخاصة بك أو دليل البائع. webالموقع للحصول على تفاصيل الاتصال المحددة.
• When contacting support, please have your model number (Wood Triple Bunk Bed) and purchase date available.
