LOVELEDI P11 Portable Charger Power Bank User Manual

مقدمة

Thank you for choosing the LOVELEDI P11 Portable Charger Power Bank. This compact and powerful device is designed to keep your mobile devices charged on the go. With its 15000mAh capacity and multiple charging ports, it provides reliable power for your smartphones, tablets, and other USB-powered gadgets. This manual will guide you through the setup, operation, maintenance, and troubleshooting of your new power bank.

The LOVELEDI P11 Portable Charger Power Bank in Deep White.

الإعداد والاستخدام الأولي

محتويات الحزمة

Before using your power bank, please ensure all items are present in the package:

• LOVELEDI P11 Portable Charger Power Bank
• كابل شحن USB-C
• دليل المستخدم

Illustration of the power bank, USB-C cable, and user guide included in the package.

الشحن الأولي

Your power bank comes with a 15000 Milliamp Hours (mAh) battery capacity. For optimal performance, fully charge the power bank before its first use.

• Connect the provided USB-C cable to the USB-C input port on the power bank.
• قم بتوصيل الطرف الآخر من الكابل بمحول حائط USB متوافق (غير مرفق).
• The LED indicators on the power bank will light up to show the charging progress. Four solid blue lights indicate a full charge.

The LED indicator lights display the current charge level of the power bank.

Charging times vary depending on the input port used:

• Using USB-C input: Approximately 4.5 hours
• Using Micro USB input: Approximately 5.0 hours

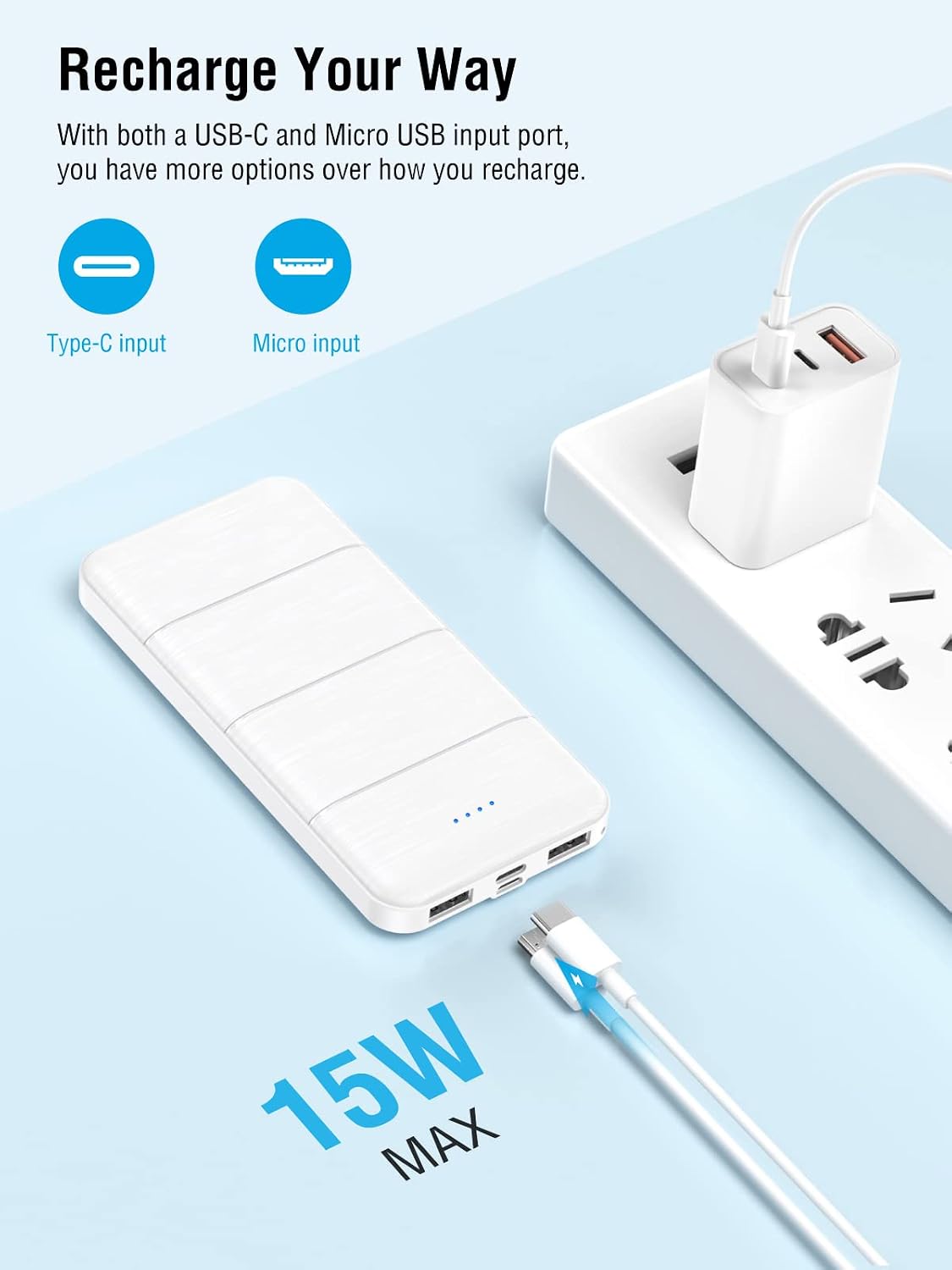

The power bank offers both USB-C and Micro USB input options for recharging.

تعليمات التشغيل

شحن أجهزتك

The LOVELEDI P11 Power Bank features dual USB output ports (USB-A1 and USB-A2) allowing you to charge two devices simultaneously with a maximum output of 15W.

• Connect your device's charging cable to one of the USB output ports on the power bank.
• قم بتوصيل الطرف الآخر من الكابل بجهازك.
• سيبدأ بنك الطاقة بشحن جهازك تلقائيًا.

The power bank supports simultaneous charging of two devices via its dual USB ports.

Experience fast charging with the power bank, capable of charging an iPhone 13/13 Pro to 50% in just 45 minutes.

The 15000mAh cell capacity provides multiple charges for various devices, including iPhones, Samsung S21, and iPad Mini 5.

التوافق العالمي

The LOVELEDI P11 Power Bank is designed for broad compatibility with most tech devices on the market, including:

• iPhones (13 series, 12 series, 11 series, X series)
• iPads (Pro series, Air series, standard iPad series)
• Android devices (Samsung series, Google series, Motorola series)
• Other devices like Samsung Tab series and Nintendo Switch

The power bank is compatible with a wide range of smartphones, tablets, and other portable electronics.

Smart Protect Safety System

The power bank incorporates a comprehensive safety system to ensure complete protection for you and your devices:

• حماية ماس كهربائى: يمنع حدوث أضرار ناتجة عن قصر الدائرة الكهربائية.
• الحماية من التيار الزائد: وسائل الحماية من التدفق الزائد للتيار الكهربائي.
• أكثر من المجلدtagالحماية: Protects devices from high voltage.
• حماية درجة الحرارة: يراقب وينظم درجة الحرارة الداخلية.
• حماية فاحش: يمنع تلف البطارية الناتج عن الشحن الزائد.

The internal safety system provides multiple layers of protection for secure charging.

العناية والصيانة

To ensure the longevity and optimal performance of your LOVELEDI P11 Power Bank, please follow these care and maintenance guidelines:

• تجنب تعريض بنك الطاقة لدرجات حرارة قصوى (ساخنة أو باردة)، أو لأشعة الشمس المباشرة، أو للرطوبة العالية.
• لا تقم بإسقاط الجهاز أو تفكيكه أو محاولة إصلاحه بنفسك. قد يؤدي ذلك إلى إلغاء الضمان والتسبب في تلفه.
• نظّف بنك الطاقة بقطعة قماش ناعمة وجافة. تجنّب استخدام مواد كيميائية قاسية أو مواد كاشطة.
• قم بتخزين الباور بانك في مكان بارد وجاف عند عدم استخدامه.
• If the power bank will not be used for an extended period, charge it fully at least once every three months to maintain battery health.

استكشاف الأخطاء وإصلاحها

If you encounter any issues with your LOVELEDI P11 Power Bank, please refer to the following common troubleshooting tips:

Power Bank Not Charging / Lights Not Staying On

• تحقق من الكابل: Ensure the charging cable is securely connected to both the power bank's input port and the wall adapter. Try using a different USB-C or Micro USB cable to rule out a faulty cable.
• التحقق من مصدر الطاقة: Verify that the wall adapter and power outlet are functioning correctly. Try plugging another device into the same outlet.
• Reset the power bank: Sometimes, simply disconnecting and reconnecting the charging cable can resolve minor issues.
• Allow time for initial charge: If the power bank has been completely drained, it might take a few minutes for the LED indicators to light up consistently.

الجهاز لا يشحن من بنك الطاقة

• Check power bank charge: Ensure the power bank itself has sufficient charge (check LED indicators).
• Check device cable: Use the original charging cable for your device or a certified third-party cable. Try a different cable if necessary.
• تحقق من الاتصال: Make sure the cable is firmly connected to both the power bank's output port and your device.
• التوافق: While universally compatible, ensure your device's charging requirements are met by the power bank's output (5V/3.1A).

إذا استمرت المشكلة بعد تجربة هذه الخطوات، يرجى الاتصال بدعم العملاء للحصول على مزيد من المساعدة.

تحديد

Below are the technical specifications for the LOVELEDI P11 Portable Charger Power Bank:

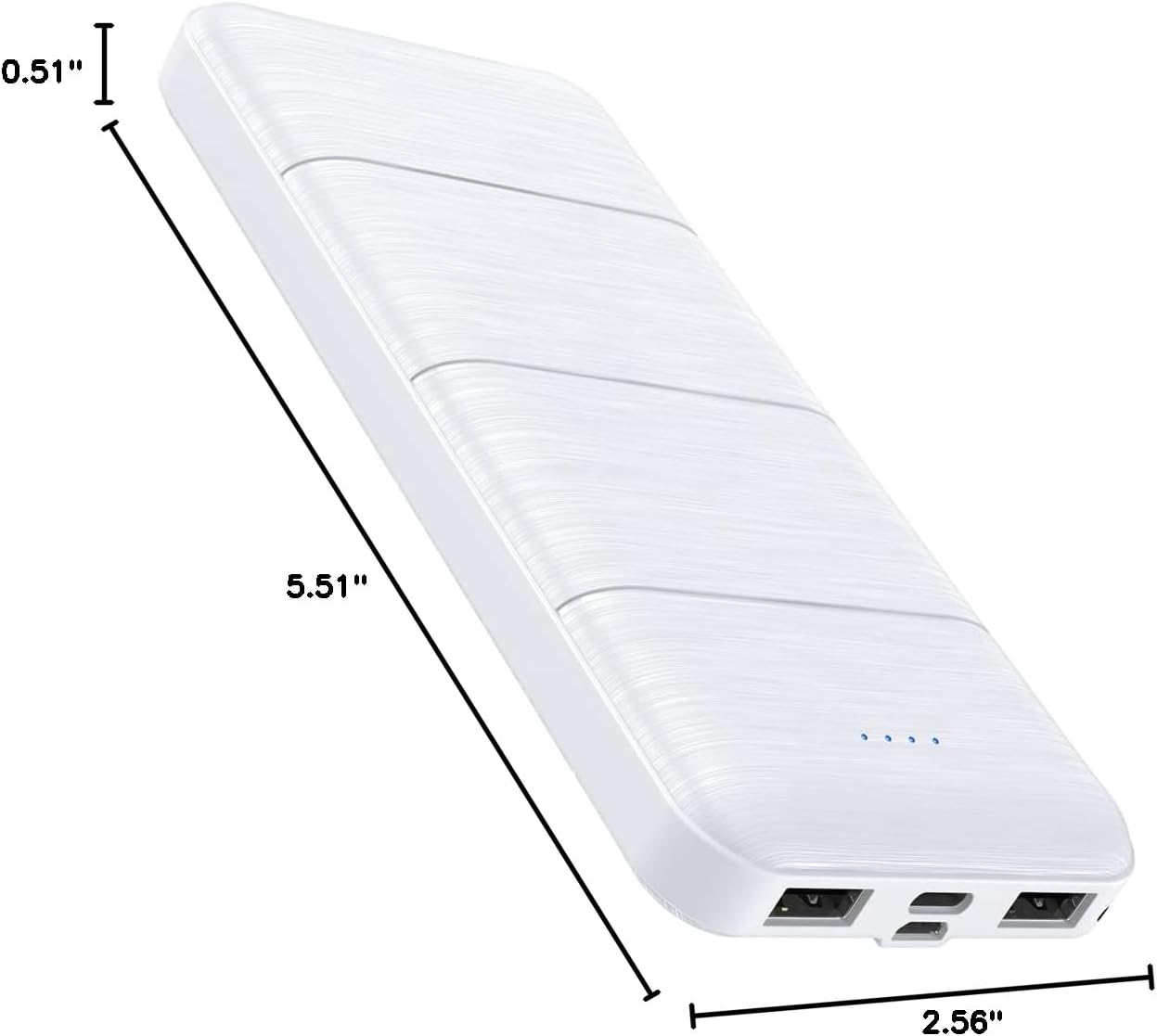

The compact dimensions of the power bank make it highly portable.

الضمان والدعم

For warranty information and customer support, please refer to the documentation included with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.

Manufacturer: Shenzhen jincheng Electronic Technology Co., Ltd
