Siljoy 48 Inch Modern Crystal Ceiling Fan with Light

1. انتهى المنتجview

The Siljoy Modern Crystal Ceiling Fan is a versatile lighting and air circulation solution, combining a ceiling fan with a chandelier design. It features retractable blades, dimmable LED lighting with three color temperatures, and a remote control for convenient operation. This unit is designed to provide both aesthetic appeal and functional comfort in various living spaces.

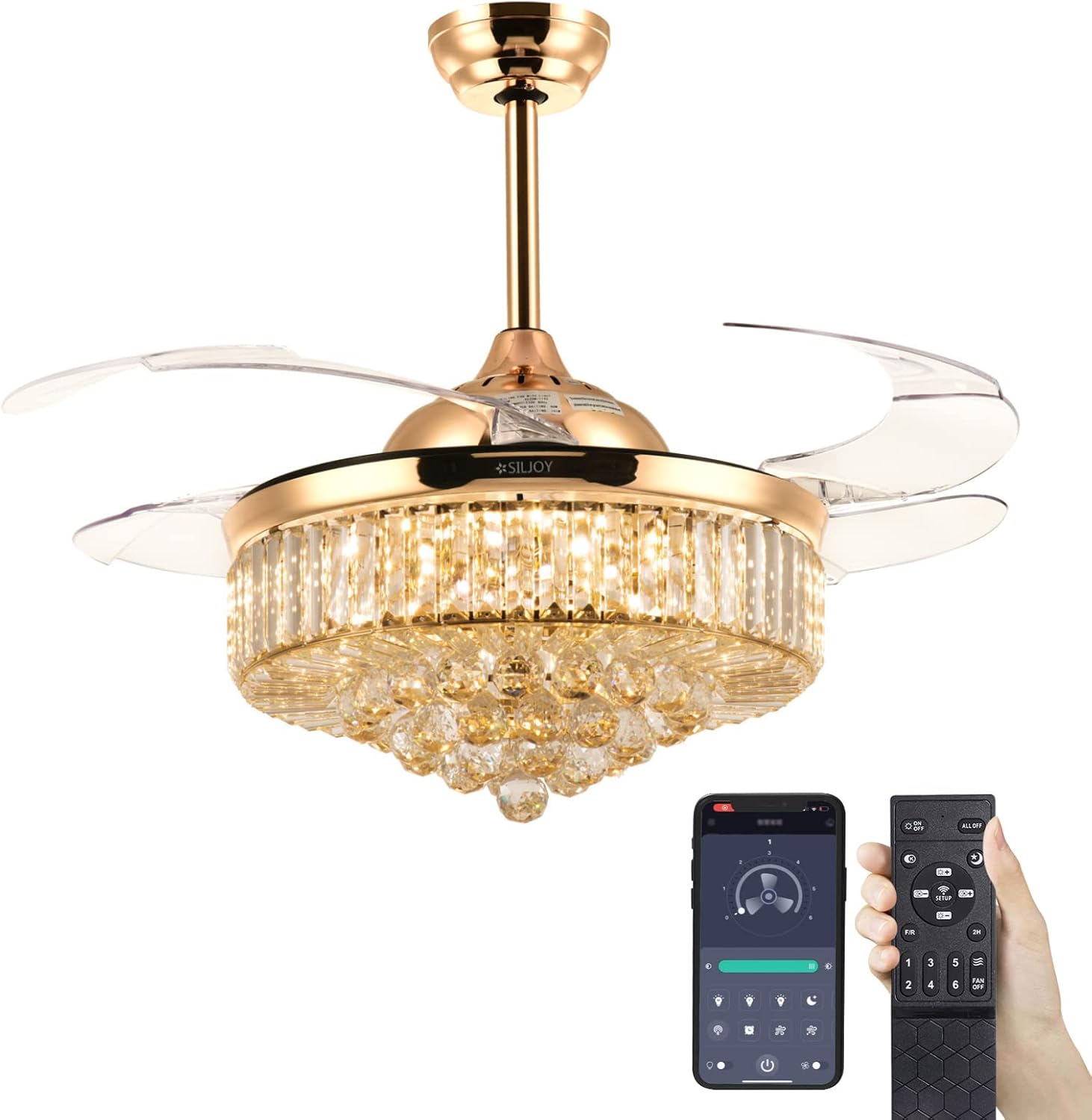

Figure 1: Siljoy 48 Inch Modern Crystal Ceiling Fan with Light

المميزات الرئيسية:

• Modern Fandelier Design: Combines a ceiling fan and chandelier with K9 crystal lampshade and rose gold stainless steel.
• Remote & Reversible Control: Separate control for fan and light, including dimmable 3-color LED and reversible fan function for year-round use.
• محرك هادئ وقوي: Integrated copper motor ensures quiet operation (as low as 32 dB) and powerful airflow.
• Dimmable 3-Color LED: Built-in LED panel with adjustable brightness and color temperature (2700K warm white to 6000K cool white).
• شفرات قابلة للسحب: Clear acrylic blades automatically extend when the fan is on and retract when off. Diameter is 48 inches when extended and 20 inches when closed.

2. ماذا يوجد في الصندوق

Carefully unpack all components and ensure all items are present before beginning installation. If any parts are missing or damaged, please contact customer support.

• Fan Motor base
• Acrylic blades (Assembly Required)
• Crystals Accessories
• زوج من القفازات
• A Set of Screws
• An Installation Manual

الشكل 2: المكونات المضمنة

3. تعليمات التثبيت

Please read all instructions carefully before installation. It is recommended to have a qualified electrician perform the installation. Ensure power is turned off at the circuit breaker before starting.

خطوات التثبيت:

1. Prepare the Fan Unit: Remove the screws from the light panel on the fan motor base. Attach the crystal lampshade to the fan motor base and secure it with the screws.
2. قم بتجميع قضيب التثبيت: If necessary, change the short downrod to the long one by unscrewing the pin, replacing the rod, and re-securing. Slide the ceiling canopy and motor canopy onto the downrod.
3. Attach Downrod to Fan Motor: Carefully feed the wires through the downrod. Insert the downrod into the fan motor base and secure it with the provided pins and screws.
4. تثبيت كتيفة التركيب: Secure the mounting bracket to your ceiling junction box using appropriate screws. Ensure the bracket is firmly attached and can support the weight of the fan.
5. وصلات الأسلاك: Connect the electrical wires from the ceiling to the fan wires using wire nuts. Typically, black to black (live), white to white (neutral), and green/bare copper to green (ground). Ensure all connections are secure.
6. تركيب المروحة: Carefully lift the fan assembly and hook the downrod ball into the mounting bracket. Spin the downrod until it is fully seated in the hole of the mounting bracket.
7. مظلة آمنة: Slide the ceiling canopy up to cover the mounting bracket and wiring. Secure it with the provided screws.
8. Attach Crystal Balls: Hang the individual crystal balls onto the designated hooks on the lampshade using the metal pins.

4. تعليمات التشغيل

The Siljoy Crystal Ceiling Fan can be operated using the included remote control or a compatible smart app (if applicable). Ensure the remote has fresh batteries and is paired with the fan according to the separate remote pairing instructions.

وظائف التحكم عن بعد:

• تشغيل / إيقاف الضوء: اضغط على زر الضوء لتشغيل الضوء أو إيقاف تشغيله.
• ضبط درجة حرارة اللون: Cycle through warm white (2700K), neutral white (4500K), and cool white (6000K) by pressing the color temperature button.
• ضبط السطوع: Use the dimmer buttons to increase or decrease the light brightness.
• تشغيل/إيقاف المروحة: اضغط على زر المروحة لتشغيلها أو إيقافها.
• التحكم في سرعة المروحة: Adjust the fan speed through multiple settings (e.g., 1-6 speeds) using the dedicated speed buttons.
• الوضع الأمامي/الخلفي: Activate the reverse function to change the direction of airflow. Forward mode creates a downdraft for cooling, while reverse mode creates an updraft to circulate warm air.
• الوضع الليلي: Activates a low light setting suitable for nighttime use.

5. الصيانة

Regular maintenance ensures optimal performance and longevity of your ceiling fan. Always turn off the power at the circuit breaker before performing any maintenance.

• تنظيف: استخدمي قطعة قماش ناعمةamp cloth to clean the fan blades, motor housing, and crystal lampshade. Avoid abrasive cleaners or solvents that could damage the finish or crystals. For crystals, a mild glass cleaner can be used.
• توازن الشفرة: If the fan wobbles, check that all blade screws are tight. Ensure blades are not bent or damaged. Balancing kits are available if needed.
• مصدر الضوء: The built-in LED panel is designed for long life. If replacement is ever needed, contact customer support for compatible parts.
• التفتيش العام: قم بفحص جميع الوصلات والبراغي بشكل دوري للتأكد من أنها مثبتة بإحكام.

6. استكشاف الأخطاء وإصلاحها

If you encounter issues with your Siljoy ceiling fan, refer to the following common troubleshooting steps:

7. المواصفات

8. الضمان والدعم

يأتي هذا المنتج مع ضمان الشركة المصنعة لمدة عامين. For warranty claims, technical support, or replacement parts, please contact Siljoy customer service. Keep your purchase receipt as proof of purchase.

Due to the unavoidable wear and tear during transit, free replacement is offered if any damage is found upon arrival. We are committed to providing sincere after-sales service.
