Meireles G130W Gas Cooker User Manual

1. المقدمة

This manual provides essential information for the safe and efficient use of your Meireles G130W Gas Cooker. Please read these instructions carefully before installation, operation, or maintenance. Keep this manual for future reference.

The Meireles G130W is a freestanding gas cooker featuring three hob burners and a gas oven, designed for use with butane gas. Its robust stainless steel construction and white finish ensure durability and a clean aesthetic in your kitchen.

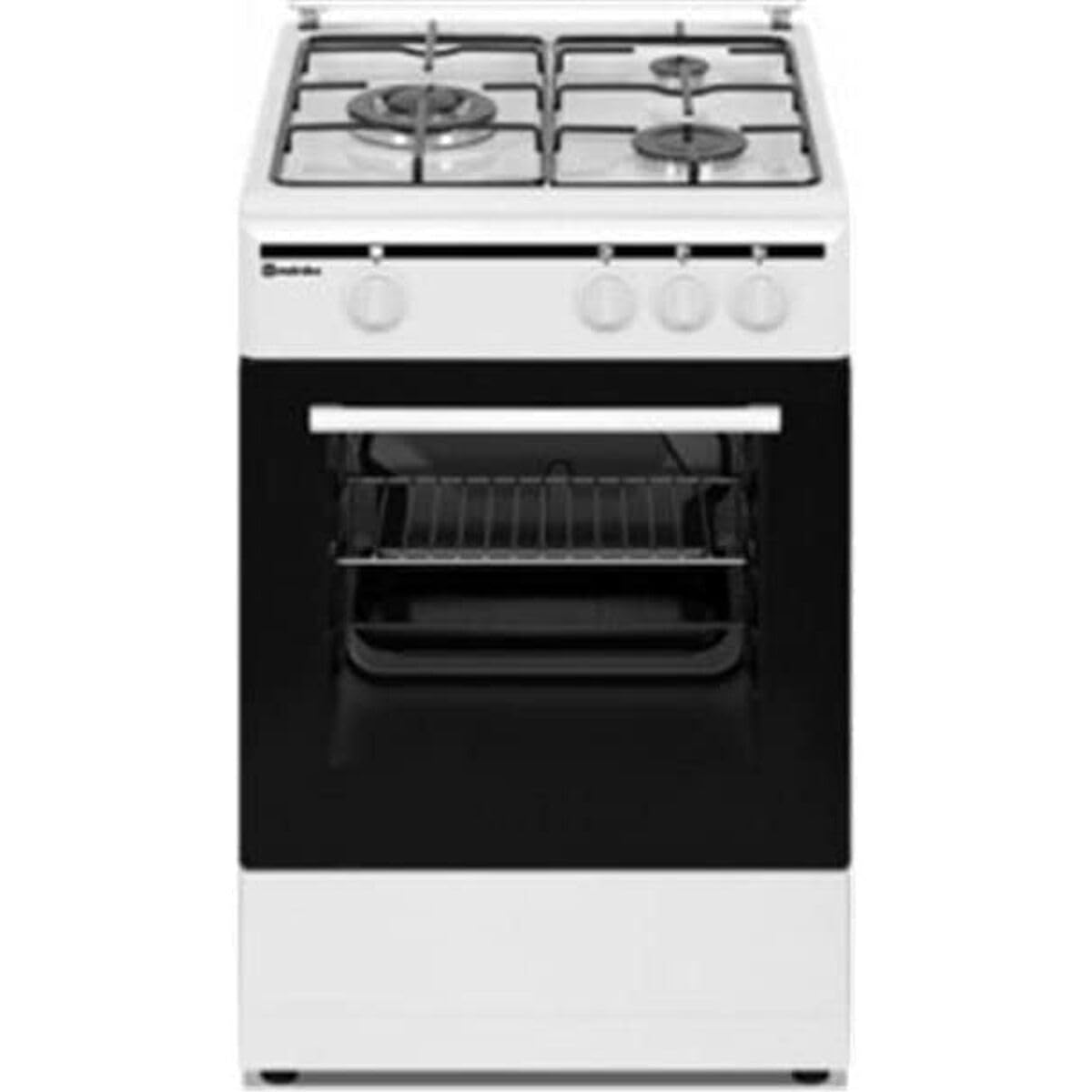

الشكل 1: الجبهة view of the Meireles G130W Gas Cooker. This image displays the appliance's white exterior, the three gas burners on the hob, and the oven door with control knobs located on the front panel.

2. تعليمات السلامة الهامة

Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, burns, or injury.

• التثبيت الاحترافي: Installation and gas connection must be performed by a qualified and authorized technician in accordance with local regulations and standards.
• نوع الغاز: This appliance is designed for butane gas. Ensure your gas supply matches this requirement. Do not attempt to convert the appliance for other gas types.
• تهوية: Ensure adequate ventilation in the kitchen area. Gas appliances consume oxygen and produce combustion by-products.
• الأطفال والحيوانات الأليفة: Keep children and pets away from the appliance during operation and when it is cooling down. Surfaces can become very hot.
• المواد القابلة للاشتعال: Do not store or use flammable materials near the cooker.
• الإشراف: لا تترك الجهاز أبدًا دون مراقبة أثناء التشغيل.
• تنظيف: Always turn off the appliance and allow it to cool before cleaning.
• ضرر: Do not operate the appliance if it is damaged. Contact a qualified service technician.
• سلك الطاقة: في حالة تلف سلك الطاقة ، يجب استبداله من قبل الشركة المصنعة ، أو وكيل الخدمة التابع لها ، أو الأشخاص المؤهلين بشكل مشابه لتجنب الخطر.

3. الإعداد والتثبيت

3.1 فك التعبئة

Carefully remove all packaging materials from the cooker. Inspect the appliance for any signs of damage. Report any damage to your retailer immediately.

3.2 التنسيب

• ضع الموقد على سطح ثابت ومستوٍ.
• Ensure adequate clearance from adjacent walls and furniture. Refer to local installation codes for specific distances. Generally, maintain a minimum of 10 cm (4 inches) from combustible surfaces.
• The area around the cooker must be well-ventilated.

3.3 توصيل الغاز

WARNING: Gas connection must be performed by a certified gas technician. Incorrect installation can lead to gas leaks, fire, or explosion.

• Ensure the main gas supply valve is closed before connecting the appliance.
• Connect the cooker to the butane gas supply using approved flexible or rigid piping.
• After connection, check all joints for gas leaks using a soapy water solution. Bubbles indicate a leak. Do not use an open flame to check for leaks.
• Open the main gas supply valve slowly and re-check for leaks.

3.4 Electrical Connection (for Ignition)

If your model includes electronic ignition, plug the power cord into a properly grounded electrical outlet. Ensure the voltagيتطابق كل من e والتردد مع المواصفات الموجودة على لوحة بيانات الجهاز.

4. تعليمات التشغيل

4.1 Using the Hob Burners

1. Place a suitable cooking pot or pan centrally on the burner grate.
2. Push in and turn the corresponding control knob counter-clockwise to the maximum flame setting (large flame symbol).
3. If your cooker has electronic ignition, the igniter will spark automatically. Hold the knob in for a few seconds after the flame ignites to allow the thermocouple to heat up and activate the flame failure device.
4. If using a manual igniter, hold a lit match or lighter to the burner while pushing in and turning the knob.
5. Once the flame is stable, release the knob. Adjust the flame size by turning the knob between the maximum and minimum settings.
6. To turn off, turn the knob clockwise to the "OFF" position (dot symbol).

Note: The Meireles G130W features three burners, including a wok burner for high-heat cooking. Use appropriate cookware for each burner size.

4.2 Using the Gas Oven

1. Open the oven door and ensure the oven is clean and free of obstructions.
2. Place the oven racks (2 provided) at the desired height.
3. ادفع وأدر مقبض التحكم في الفرن إلى إعداد درجة الحرارة المطلوبة.
4. Hold the knob in for several seconds after ignition to allow the thermocouple to heat up. Release the knob once the flame is stable.
5. Preheat the oven for approximately 10-15 minutes before placing food inside.
6. To turn off, turn the oven control knob to the "OFF" position.

4.3 استخدام الشواية

The Meireles G130W includes a grill function. Refer to the specific markings on the oven control knob for grill operation. Typically, the grill operates with the oven door slightly ajar to prevent overheating. Always use the grill pan and grid provided.

5. الصيانة والتنظيف

سيضمن التنظيف والصيانة المنتظمين طول عمر جهاز الطهي الخاص بك وأدائه الأمثل.

• قبل التنظيف: Always ensure the cooker is turned off and completely cool before cleaning any part of the appliance.
• الموقد والشعلات:
  • قم بإزالة أغطية الموقد ودعامات المقلاة. اغسلها بالماء الدافئ والصابون، ثم اشطفها وجففها جيداً.
  • امسح سطح الموقد باستخدام دamp cloth and mild detergent. Avoid abrasive cleaners that can scratch the stainless steel.
  • Ensure burner ports are not blocked. Use a fine brush or needle to clear any debris if necessary.
  • أعد تجميع الأجزاء فقط عندما تكون جميعها جافة تمامًا.
• داخل الفرن:
  • امسح الداخل بإعلانamp قطعة قماش ومنظف أفران غير كاشط مناسب لأفران الغاز.
  • For stubborn stains, follow the instructions on your chosen oven cleaner.
  • Clean oven racks and the grill pan in warm soapy water.
• الخارج: امسحي الأسطح الخارجية بقطعة ناعمة ، دamp قطعة قماش ومنظف معتدل. جفف بقطعة قماش ناعمة.

6. استكشاف الأخطاء وإصلاحها

قبل الاتصال بالخدمة، تحقق من المشكلات الشائعة التالية:

7. مواصفات المنتج

• نموذج: G130W
• ماركة: Meireles
• الأبعاد (الطول × العرض × الارتفاع): 60 × 60 × 60 سم
• وزن: 40 كجم
• مادة: الفولاذ المقاوم للصدأ
• لون: أبيض
• عامل الشكل: قائما بذاته
• نوع التحكم: مقبض الباب
• Energy Type: Gas (Butane)
• Number of Hob Burners: 3
• نوع الفرن: فرن غاز
• نوع الشواية: Grill (integrated)
• Number of Oven Racks: 2
• فئة كفاءة الطاقة: A

8. الضمان والدعم

For warranty information, please refer to the warranty card included with your product or contact your retailer. Meireles products are manufactured to high standards and are covered by a manufacturer's warranty against defects in materials and workmanship.

For technical support, spare parts, or service inquiries, please contact your authorized Meireles service center or the retailer from whom you purchased the appliance. Always provide the model number (G130W) and serial number (if applicable) when seeking assistance.
