OriPure Alnico 5 Humbucker Bridge Pickup PHZ-5 Instruction Manual

مقدمة

This manual provides detailed instructions for the installation, operation, and maintenance of your OriPure Alnico 5 Humbucker Bridge Pickup, Model PHZ-5. Please read this guide thoroughly before proceeding with installation to ensure proper function and longevity of your product.

المنتج انتهىview

The OriPure Alnico 5 Humbucker Bridge Pickup is designed to deliver a bright, sharp, warm, and crisp sound, ideal for blues and jazz styles. It features Alnico 5 magnets, 6 non-adjustable slug pole pieces, and 6 adjustable screw pole pieces. The pickup is vacuum wax potted and sealed to effectively eliminate unwanted noise.

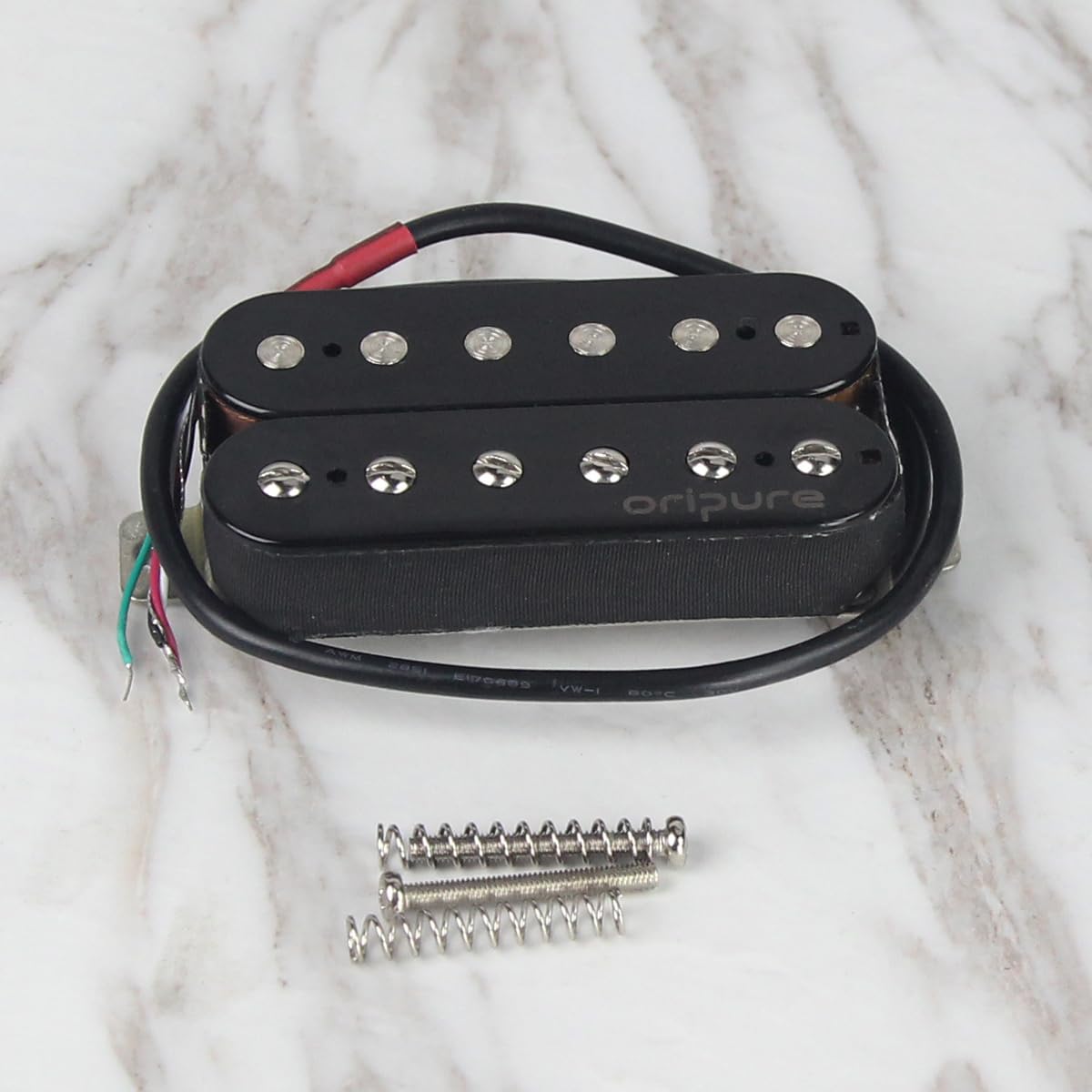

Figure 1: OriPure Alnico 5 Humbucker Bridge Pickup, showing the pickup, packaging, mounting screws, and springs.

المميزات الرئيسية:

• صوت احترافيfile: Bright, sharp, warm, and crisp, suitable for blues and jazz.
• نوع المغناطيس: Alnico 5.
• Pole Pieces: 6 non-adjustable slug pole pieces and 6 adjustable screw pole pieces.
• تقليل الضوضاء: Vacuum wax potted and sealed.
• الإخراج: 4-conductor wiring for versatile coil-splitting options.
• متضمن: Mounting screws and springs.

الإعداد والتثبيت

Installing a guitar pickup requires basic soldering skills and familiarity with guitar electronics. If you are unsure, it is recommended to seek assistance from a qualified guitar technician.

الأدوات المطلوبة:

• مكواة اللحام واللحام
• قواطع الأسلاك/مجردات الأسلاك
• مفكات البراغي (فيليبس ومسطحة الرأس)
• جهاز قياس متعدد (اختياري، للتحقق من التوصيلات)
• Masking tape (for securing wires)

خطوات التثبيت:

1. جهّز الجيتار: Loosen and remove the guitar strings. Remove the existing pickup from the bridge position. Carefully desolder the old pickup's wires from the control cavity.
2. Mount the Pickup: Place the OriPure Humbucker into the bridge pickup cavity. Use the provided screws and springs to secure it. Adjust the height to your preference; a good starting point is approximately 2-3mm from the strings when fretted at the last fret.

الشكل 2: الجبهة view of the OriPure Alnico 5 Humbucker Bridge Pickup, showing the pole pieces.
3. التوصيلات السلكية: The OriPure Humbucker features 4-conductor wiring, allowing for various wiring options such as series (standard humbucker), parallel, or coil-splitting.

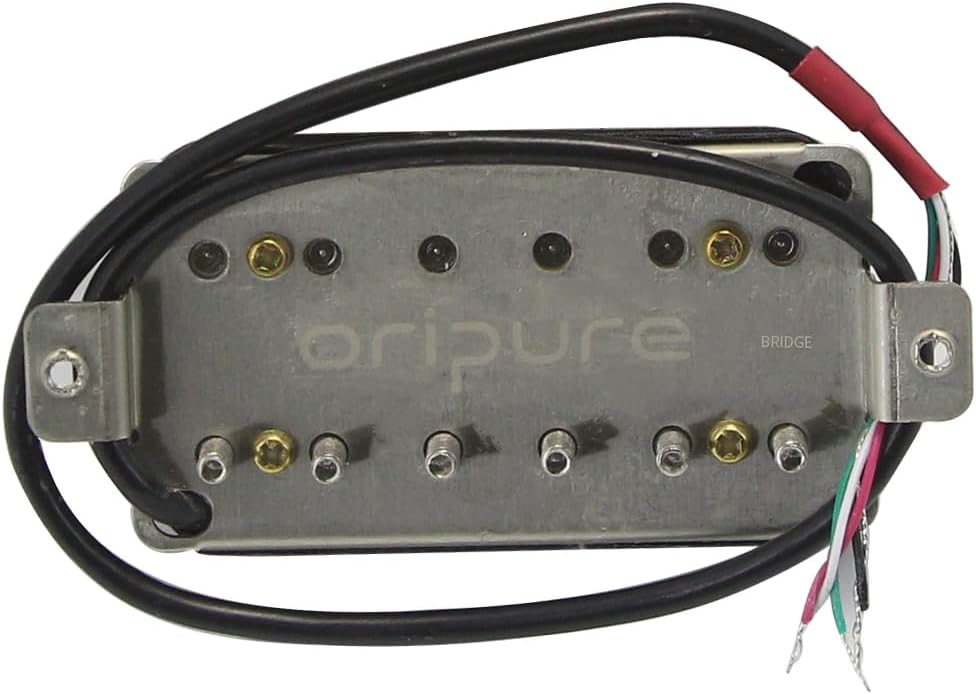

الشكل 3: العودة view of the OriPure Alnico 5 Humbucker Bridge Pickup, illustrating the 4-conductor wiring.

Standard Humbucker Wiring (Series):

• Hot (Signal): Solder the main hot wire (typically red or black, depending on manufacturer's color code) to the appropriate lug on your guitar's selector switch or volume pot.
• أرضي: Solder the main ground wire (typically bare or green) to the back of a volume or tone pot, ensuring a solid ground connection.
• Coil Split Wires: The remaining two wires (e.g., white and black, or white and green) are typically soldered together and insulated, or connected to a switch for coil-splitting functionality. For standard series humbucking, connect them and insulate.

Note: Always refer to a specific wiring diagram for your guitar model and desired configuration. Common color codes vary between manufacturers.

4. اتصالات الاختبار: Before reassembling, temporarily string the guitar and test the pickup's functionality. Ensure there is no hum or signal loss.
5. إعادة التجميع: Once confirmed, reassemble the guitar, re-string, and perform final adjustments.

Operating the Pickup

The OriPure Alnico 5 Humbucker is a passive pickup, meaning its operation is directly tied to your guitar's electronics and your playing style. Once installed, the pickup converts string vibrations into an electrical signal, which is then shaped by your guitar's volume and tone controls, and ampمرقق.

خصائص النغمة:

• Bridge Position: Provides a brighter, more articulate tone compared to neck pickups, often used for lead playing and rhythm with more attack.
• Alnico 5 Magnets: Known for a balanced, punchy tone with good output and clear highs.
• Humbucking Design: Reduces hum and noise, providing a clearer signal.
• 4-Conductor Wiring: Allows for coil-splitting, which can produce a single-coil-like tone (brighter, lower output) when activated via a push/pull pot or switch.

صيانة

Proper maintenance ensures the longevity and optimal performance of your pickup.

• تنظيف: Gently wipe the pickup cover and pole pieces with a soft, dry cloth to remove dust and grime. Avoid using abrasive cleaners or solvents.
• التحقق من الاتصالات: Periodically inspect the soldered connections in the control cavity for any signs of corrosion or loosening. Re-solder if necessary.
• Pole Piece Adjustment: The adjustable screw pole pieces can be raised or lowered to fine-tune the string balance and output. Make small adjustments and test the sound.
• تجنب المجالات المغناطيسية القوية: Keep the pickup away from strong magnetic sources when not installed, as this can affect its magnetic properties over time.

استكشاف الأخطاء وإصلاحها

If you encounter issues with your pickup, consider the following common problems and solutions:

تحديد

The following specifications apply to the OriPure Alnico 5 Humbucker Bridge Pickup (Model PHZ-5):

• نموذج: PHZ-5
• موضع: كوبري
• المغناطيس: النيكو 5
• مقاومة DC: 8-9kΩ (Note: Actual resistance may vary slightly due to ambient temperature, up to 500Ω deviation.)
• تباعد القطب: 52 ملم
• المادة الأساسية: سبيكة النحاس والنيكل
• أسلاك الإخراج: PVC wirings, 4-conductor (can be switched to single coil)
• لون: أسود
• الأبعاد (الطول × العرض × الارتفاع): حوالي 3.54 × 1.5 × 0.98 بوصة (90 × 38 × 25 ملم)
• المكونات المتضمنة: Pickup, mounting screws, springs
• تقليل الضوضاء: Vacuum wax potted and sealed

Note: All parameters are for reference. Actual performance may vary slightly depending on the guitar, amplifier, and related equipment.

الضمان والدعم

For warranty information or technical support regarding your OriPure Alnico 5 Humbucker Bridge Pickup, please contact the seller or retailer from whom you purchased the product. Ensure you retain your proof of purchase for any warranty claims.

For general inquiries or further assistance, you may visit the official OriPure store on Amazon: OriPure Store
