1. المقدمة
The Dual Pro SS3 Sportsman Series Battery Charger is a high-performance, multi-bank charging system designed for marine and other demanding applications. This charger features three independent 10-amp charging banks, providing a total output of 30 amps. It is engineered to charge 12V, 24V, or 36V battery systems by connecting to individual 12V batteries within the system. The SS3 ensures efficient and safe charging for various battery types, including lead-acid, AGM, and gel batteries.

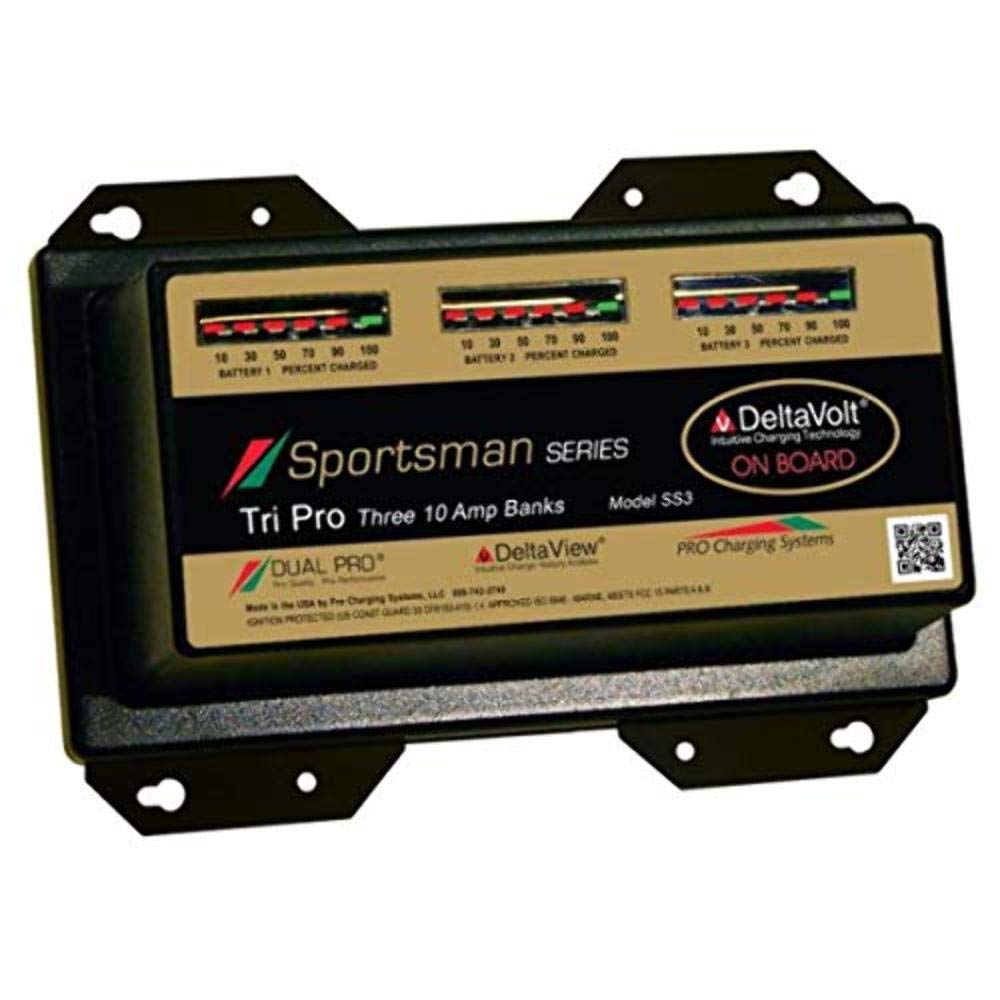

الشكل 1: الجبهة view of the Dual Pro SS3 Sportsman Series Battery Charger, showing its robust casinوكابلات الإخراج.
2. معلومات السلامة
Please read and understand all safety instructions before operating the Dual Pro SS3 charger. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- تهوية: Ensure the charger is installed in a well-ventilated area. Do not cover the charger or block any ventilation openings.
- حماية العين: Always wear eye protection when working near batteries. Batteries can produce explosive gases.
- No Sparks or Flames: لا تدخن أو تسمح بوجود شرارات أو ألسنة اللهب بالقرب من البطارية أو الشاحن.
- نوع البطارية: This charger is designed for 12V lead-acid, AGM, and gel batteries. Do not attempt to charge other battery types unless explicitly stated by the manufacturer.
- AC Power Disconnection: Always disconnect the AC power cord from the outlet before making or breaking connections to the battery.
- التأريض: Ensure the charger is properly grounded. Do not use adapters or extension cords that defeat the grounding feature.
- التعرض للماء: Do not expose the charger to rain, snow, or excessive moisture. It is designed for indoor or protected marine environments.
- أطفال: أبقِ الشاحن والبطاريات بعيداً عن متناول الأطفال.
- المعدات التالفة: Do not operate the charger if it has been dropped, damaged, or shows signs of malfunction. Contact customer support.
3. الإعداد
Follow these steps to properly set up your Dual Pro SS3 battery charger:
- مكان التركيب: Choose a dry, well-ventilated, and secure location for mounting the charger. Ensure it is away from direct sunlight, heat sources, and flammable materials.
- Battery Identification: Identify the 12V batteries within your 12V, 24V, or 36V system. The SS3 has three independent banks, each designed to charge a single 12V battery.
- الاتصال بالبطاريات:
- For each battery bank, connect the red positive (+) output lead to the positive terminal of a 12V battery.
- Connect the black negative (-) output lead to the negative terminal of the same 12V battery.
- Repeat this process for all three banks, ensuring each bank is connected to a separate 12V battery.
- تأكد من أن جميع التوصيلات محكمة وآمنة.
- اتصال طاقة التيار المتردد: Once all DC connections are secure, plug the charger's AC power cord into a standard 120V AC grounded electrical outlet.
Figure 2: The Dual Pro SS3 charger showing its output cables, ready for connection to battery terminals.
4. تعليمات التشغيل
The Dual Pro SS3 charger operates automatically once connected to AC power and batteries.
- رسوم البدء: After connecting the charger to the batteries and plugging it into an AC outlet, the charging process will begin automatically.
- أضواء المؤشر: The charger features indicator lights for each bank to display the charging status:
- Red/Amber Light: يشير إلى أن البطارية قيد الشحن النشط.
- الضوء الأخضر: Indicates the battery is fully charged and the charger is in maintenance mode (float charge).
- Flashing Light/Other Color: May indicate a fault condition (e.g., reverse polarity, bad battery). Refer to the troubleshooting section.
- الإغلاق التلقائي: The charger will automatically switch to a maintenance (float) charge mode once the batteries are fully charged, preventing overcharging.
- قطع الاتصال: To disconnect the charger, first unplug the AC power cord from the wall outlet, then disconnect the DC output leads from the battery terminals.
الشكل 3: الصورة عن قرب view of the Dual Pro SS3 charger, highlighting the status indicator lights for each charging bank.
5. الصيانة
Proper maintenance ensures the longevity and optimal performance of your Dual Pro SS3 charger.
- تنظيف: Periodically clean the exterior of the charger with a dry cloth. Do not use solvents or abrasive cleaners. Ensure ventilation openings are free from dust and debris.
- الاتصالات: Regularly inspect all AC and DC connections for corrosion, damage, or looseness. Tighten any loose connections.
- تخزين: عند عدم الاستخدام، قم بتخزين الشاحن في مكان بارد وجاف، بعيدًا عن أشعة الشمس المباشرة ودرجات الحرارة القصوى.
- فحص الكابلات: Check the AC power cord and DC output cables for any cuts, fraying, or damage. Replace damaged cables immediately.
6. استكشاف الأخطاء وإصلاحها
If you encounter issues with your Dual Pro SS3 charger, refer to the following common troubleshooting steps:
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الشاحن لا يعمل / لا توجد أضواء مؤشرة | No AC power; Faulty AC outlet; Blown fuse/breaker; Internal charger fault. | Check AC power cord connection. Test AC outlet with another device. Check boat/house circuit breaker. If problem persists, contact customer support. |
| Battery not charging / Indicator light remains red/amber indefinitely | Loose battery connections; Severely discharged battery; Faulty battery; Incorrect battery type. | Ensure DC connections are tight. Allow more time for charging if battery is deeply discharged. Test battery health. Confirm battery type is compatible. |
| Fault indicator (e.g., flashing light) | Reverse polarity connection; Short circuit; Over-temperature; Internal charger fault. | Disconnect AC power, then check DC connections for correct polarity. Inspect cables for damage or short circuits. Ensure charger is in a well-ventilated area. If fault persists, contact customer support. |
7. المواصفات
Key technical specifications for the Dual Pro SS3 Sportsman Series Battery Charger:
- ماركة: شواحن احترافية مزدوجة
- رقم الموديل: اس اس 3
- حجم الإدخالtage: 24 volts (AC)
- حجم الإخراجtage: 24 volts DC (for 12V battery banks)
- التقييم الحالي: 10 Amps per bank
- المجموع Ampإيراج: 30 Amps (3 x 10A banks)
- عدد الموانئ: 3
- نوع الموصل: بطارية Clamps/Ring Terminals
- وزن السلعة: 13.9 رطل
- لون: أسود
- الشركة المصنعة: دوال برو
- رمز المنتج العالمي: 738362505870
الشكل 4: الجانب view of the Dual Pro SS3 charger, potentially showing a label with technical specifications.
8. الضمان والدعم
The Dual Pro SS3 Sportsman Series Battery Charger is backed by a manufacturer's warranty. For specific warranty terms, duration, and conditions, please refer to the documentation included with your product or visit the official Dual Pro Chargers webموقع.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Dual Pro Chargers customer service directly. Contact information can typically be found on the manufacturer's webالموقع أو في عبوة المنتج.
