Kärcher LMO 18-36 Battery-Powered Lawnmower Instruction Manual

1. المقدمة

Thank you for choosing the Kärcher LMO 18-36 Battery-Powered Lawnmower. This manual provides essential information for the safe and efficient operation, assembly, and maintenance of your new lawnmower. Please read these instructions carefully before first use and keep them for future reference.

The Kärcher LMO 18-36 is designed for effortless mowing of lawns, offering maneuverability and a clean cutting result. It features an 18V Lithium-Ion battery system, a 36 cm cutting width, and a 2-in-1 mowing system for collecting or mulching grass.

2. تعليمات السلامة

احرص دائمًا على اتباع احتياطات السلامة الأساسية لتقليل مخاطر الحريق والصدمات الكهربائية والإصابات الشخصية عند تشغيل هذا الجهاز.

• اقرأ جميع التعليمات: تعرّف على أدوات التحكم والاستخدام الصحيح للجهاز.
• ارتدِ ملابس مناسبة: Always wear sturdy footwear and long trousers while operating the lawnmower. Avoid loose clothing that could get caught in moving parts.
• إبعاد المارة: تأكد من إبقاء الأطفال والحيوانات الأليفة على مسافة آمنة من منطقة جز العشب.
• فحص المنطقة: Before mowing, remove any objects such as stones, sticks, wires, or toys that could be thrown by the blade.
• Use the safety key: The safety key acts as a child lock and prevents accidental starting. Always remove the safety key when the lawnmower is unattended, before cleaning, or when performing maintenance.
• تجنب العشب المبلل: Do not operate the lawnmower in wet conditions, as this can be hazardous and reduce cutting efficiency.
• Maintain blades: Ensure blades are sharp and in good condition. Replace damaged blades immediately.
• سلامة البطارية: Use only the specified Kärcher 18V Lithium-Ion battery and charger. Do not expose batteries to extreme temperatures or water.

3. محتويات العبوة

تأكد من وجود جميع العناصر عند فك العبوة:

• Kärcher LMO 18-36 Battery-Powered Lawnmower
• Grass Catcher Basket
• Mulching Wedge
• بطارية ليثيوم أيون 18 فولت
• شاحن سريع
• دليل التعليمات

4. الإعداد والتجميع

4.1 مقبض الجمعية

The guide rail is height-adjustable and foldable for storage. To assemble, unfold the handle and secure it in the desired working position using the provided fasteners. Ensure all connections are tight before operation.

Figure 1: The Kärcher LMO 18-36 Lawnmower shown in its folded, compact storage position. This illustrates the handle's folding capability for assembly and storage.

4.2 إدخال البطارية

Ensure the battery is fully charged before first use. Open the battery compartment cover. Insert the 18V Lithium-Ion battery into the designated slot until it clicks into place. Close the compartment cover securely.

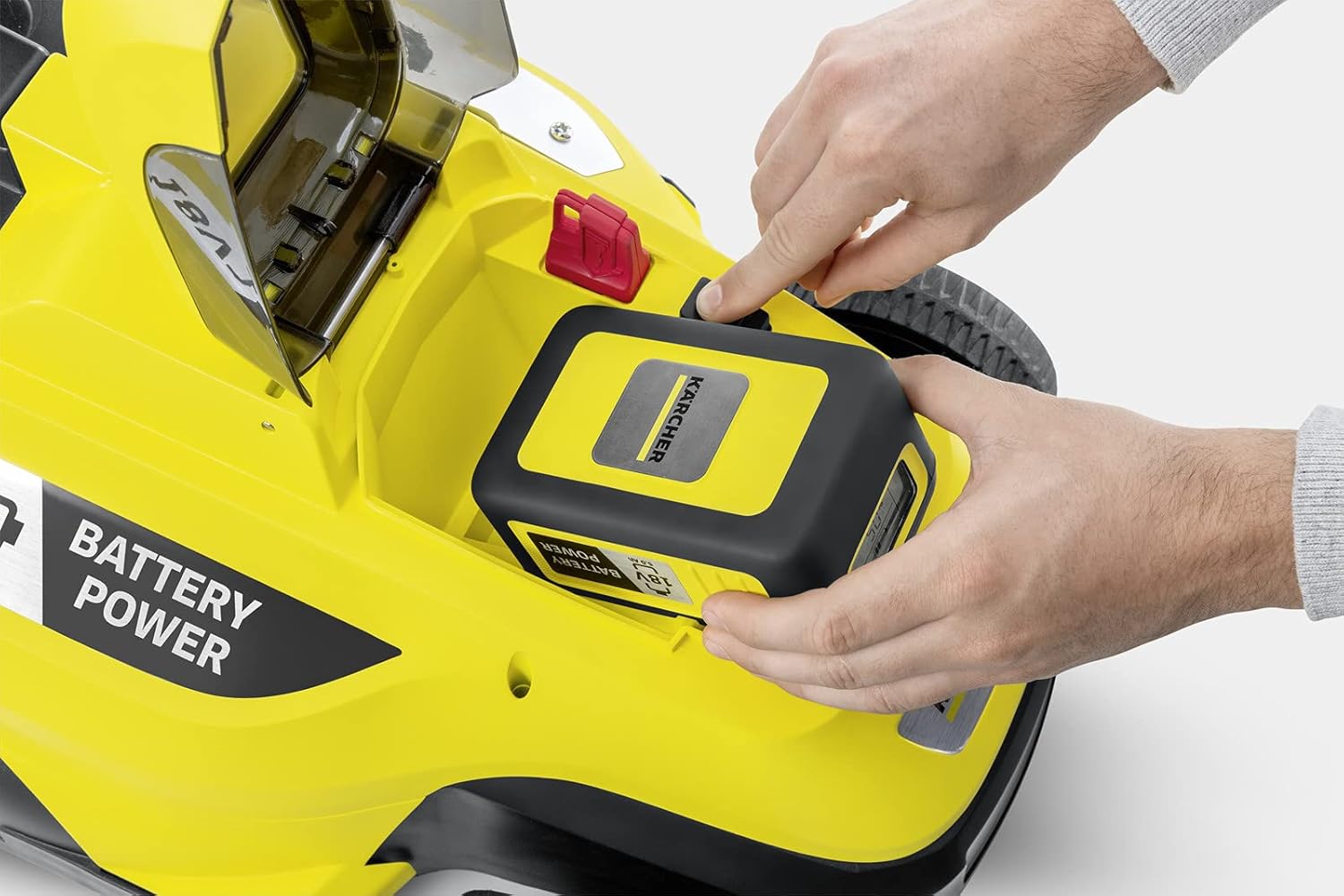

الشكل 2: لقطة مقربة view of hands inserting the 18V battery into the Kärcher LMO 18-36 Lawnmower's battery compartment. This demonstrates the correct procedure for battery installation.

4.3 ضبط ارتفاع القطع

The cutting height can be adjusted in 4 levels, from 3 cm to 7 cm. Locate the cutting height adjustment lever on the lawnmower deck. Move the lever to select the desired cutting height. Ensure all wheels are set to the same height.

4.4 Grass Catcher / Mulching Wedge Attachment

For grass collection, attach the grass catcher basket to the rear of the lawnmower. Ensure it is securely hooked. For mulching, remove the grass catcher and insert the mulching wedge into the discharge opening. The 2-in-1 system allows you to choose your preferred method.

5. تعليمات التشغيل

5.1 البدء والإيقاف

To start the lawnmower, insert the safety key, then press and hold the safety button while simultaneously pulling the switch lever towards the handle. To stop, release the switch lever. Always remove the safety key when not in use.

5.2 تقنيات القص

Push the lawnmower at a steady pace. Overlapping each pass slightly ensures an even cut. For edge mowing, the lawnmower is equipped with lawn combs that allow for residue-free cutting close to edges.

Figure 3: A person operating the Kärcher LMO 18-36 Lawnmower on a well-maintained lawn. This image illustrates the lawnmower in active use, demonstrating its maneuverability.

5.3 Grass Catcher Level Indicator

The grass catcher basket features a level indicator. When the indicator is full, it signals that the basket needs to be emptied. Regularly empty the grass catcher to maintain optimal cutting performance and prevent clogging.

6. الصيانة

Regular maintenance ensures the longevity and performance of your lawnmower.

• تنظيف: After each use, clean the lawnmower deck and blades. Remove grass clippings and debris using a brush or cloth. Do not use water jets directly on electrical components.
• العناية بالشفرة: Inspect the blade regularly for sharpness and damage. A dull or damaged blade can lead to poor cutting quality and increased battery consumption. Replace the blade if it is bent or severely worn. Always wear protective gloves when handling the blade.
• البطارية والشاحن: Store the battery in a cool, dry place. Do not charge the battery in extreme temperatures. Refer to the battery and charger manuals for specific care instructions.
• التفتيش العام: Periodically check all nuts, bolts, and screws for tightness. Ensure all safety devices are functioning correctly.

7. استكشاف الأخطاء وإصلاحها

This section addresses common issues you might encounter with your Kärcher LMO 18-36 Lawnmower.

8. المواصفات

9. التخزين

The Kärcher LMO 18-36 features a foldable design for space-saving storage. After cleaning, fold the guide rail as instructed in the assembly section. Store the lawnmower in a dry, secure location, out of reach of children. Remove the battery before storing for extended periods.

10. الضمان والدعم

تُصنع منتجات كارشر وفقًا لأعلى معايير الجودة، وتأتي مع ضمان الشركة المصنعة. للاطلاع على شروط وأحكام الضمان، يُرجى مراجعة بطاقة الضمان المرفقة مع المنتج أو زيارة الموقع الرسمي لكارشر. webللحصول على الدعم الفني أو قطع الغيار أو استفسارات الصيانة، يُرجى التواصل مع خدمة عملاء كارشر أو مركز خدمة معتمد.

الموارد المتاحة على الإنترنت: For additional information, FAQs, and product registration, visit the official Kärcher webموقع: www.kaercher.com
