AR Blue Clean AR613 Pressure Washer User Manual

مقدمة

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your AR Blue Clean AR613 Industrial Electric Pressure Washer. Please read this manual thoroughly before operating the unit.

The AR613 is a robust pressure washer designed for various cleaning tasks, featuring an induction motor, triplex plunger pump with ceramic pistons, and a Total Stop System (TSS) for enhanced durability and user convenience. It delivers 1900 PSI and 2.2 GPM, powered by a 115V induction motor.

معلومات السلامة

Always observe basic safety precautions when using this product to reduce the risk of injury or damage. This product is equipped with a Proposition 65 warning, indicating it may expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov.

• اقرأ كافة التعليمات قبل استخدام الجهاز.
• Do not direct the water stream at people, pets, electrical devices, or the unit itself.
• ارتدِ معدات الحماية الشخصية المناسبة، بما في ذلك حماية العين.
• تأكد من أن مصدر الطاقة يتوافق مع متطلبات الوحدة (115 فولت، 18AMP).
• Always disconnect the power supply before performing any maintenance.
• Do not operate the unit if the power cord or other critical parts are damaged.
• احتفظ بالأطفال والحيوانات الأليفة بعيدًا عن منطقة التشغيل.

المكونات والملحقات

The AR613 pressure washer comes with the following components:

• AR613 Pressure Washer Unit
• Professional Trigger Gun
• Metal Lance with Adjustable Nozzle
• 25' Super Soft High Pressure Hose with Velcro Strap & Dedicated Storage Hook
• محول خرطوم الحديقة
• Inspectable Water Intake Filter

Figure 1: Included accessories for the AR613 pressure washer, featuring the trigger gun, 25-foot high-pressure hose, and metal lance with an adjustable nozzle.

تعليمات الإعداد

1. فك التعبئة: أزل جميع المكونات من العبوة بعناية. افحصها بحثًا عن أي تلف.
2. توصيل خرطوم الضغط العالي: Attach the 25' high-pressure hose to the outlet on the pressure washer unit and to the trigger gun. Ensure connections are secure.


   الشكل 2: الجانب view of the AR613 unit, highlighting the brass pump head where the high-pressure hose connects.

3. ربط إمدادات المياه: Connect a standard garden hose (not included) to the water inlet on the pressure washer. Use the included garden hose adapter if necessary. Ensure the water supply is clean and free of debris. The inspectable water intake filter should be in place.

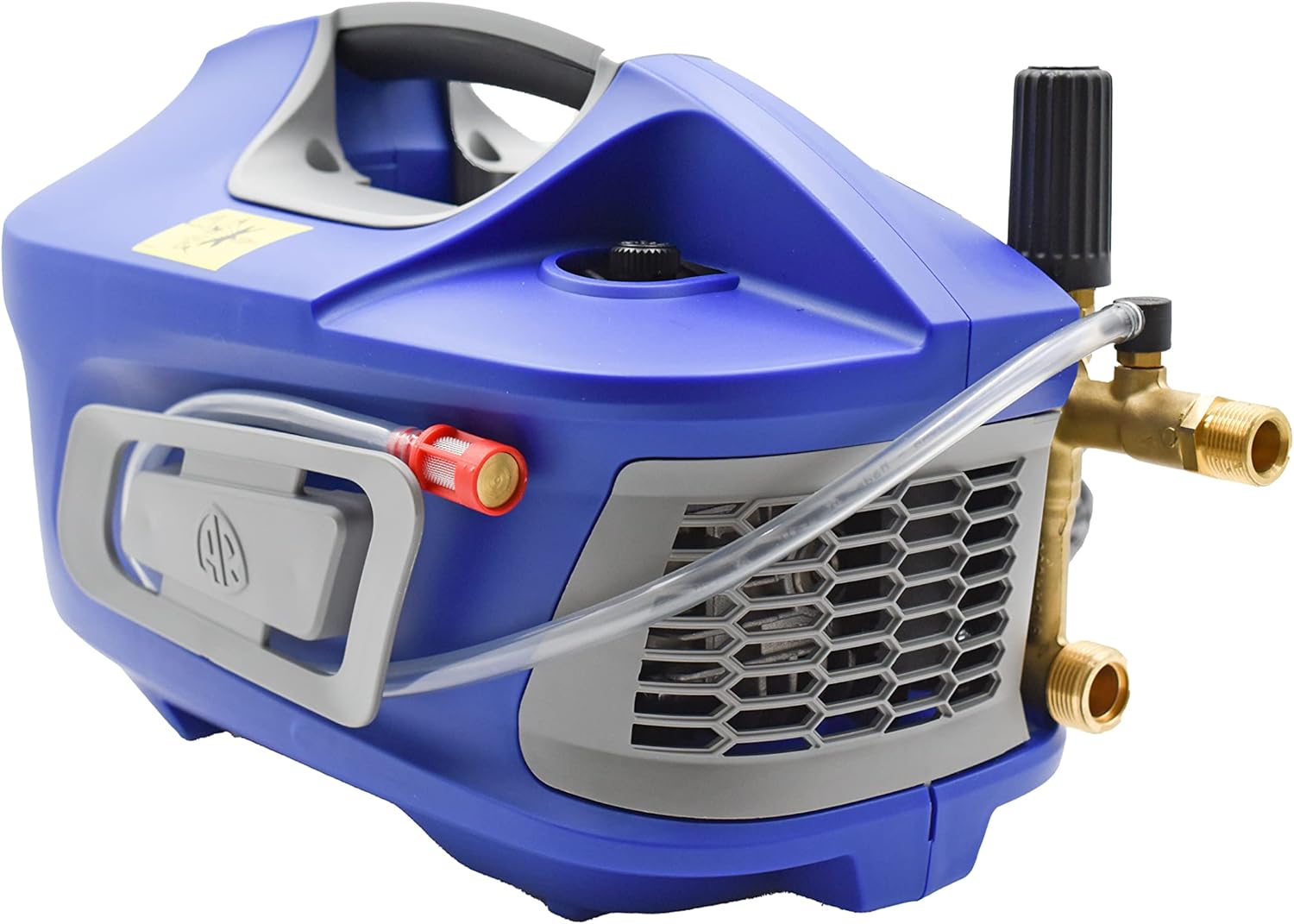

   Figure 3: The water intake filter and brass connections on the side of the pressure washer.
4. Connect Lance to Gun: Attach the metal lance with the adjustable nozzle to the trigger gun.
5. توصيل الطاقة: قم بتوصيل سلك الطاقة بمأخذ كهربائي مؤرض بقوة 115 فولت.


   الشكل 4: الجزء العلوي view of the AR613, showing the integrated handle for portability and the power cord connection.

6. تطهير الهواء من النظام: Before turning on the power, turn on the water supply fully. Squeeze the trigger gun to allow water to flow through the system and expel any trapped air. Continue until a steady stream of water emerges from the nozzle. This protects the pump.

تعليمات التشغيل

1. بدء الوحدة: Once air is purged, turn the pressure washer's power switch to the "ON" position. The motor will start.
2. ضبط الضغط: The unit features a pressure gauge and regulation knob. Turn the knob to adjust the output pressure according to your cleaning needs.


   Figure 5: Detail of the pressure gauge and regulation knob for precise pressure control.
3. استخدام المنظف (اختياري): The AR613 has a built-in detergent suction system. Place the detergent suction tube into a container of pressure washer safe detergent. The unit will draw detergent when operating at low pressure or with a specific detergent nozzle (if applicable).
4. تنظيف: Hold the trigger gun firmly and direct the spray at the surface to be cleaned. Maintain a safe distance to avoid damaging the surface. Work from top to bottom.
5. نظام التوقف الكلي (TSS): The TSS automatically shuts off the pump when the trigger is released, saving energy and extending pump life. The pump restarts when the trigger is squeezed again.
6. اغلاق:
   • Turn the power switch to "OFF".
   • اغلاق مصدر المياه.
   • اضغط على الزناد لإخراج أي ضغط متبقي في النظام.
   • افصل خرطوم الحديقة وخرطوم الضغط العالي.

صيانة

تضمن الصيانة المنتظمة الأداء الأمثل وتطيل عمر غسالة الضغط الخاصة بك.

• بعد كل استخدام:
  • Drain all water from the pump, hoses, and accessories to prevent freezing in cold weather.
  • تنظيف الجزء الخارجي من الوحدة مع الإعلانamp قطعة قماش.
  • Inspect the water intake filter for debris and clean if necessary.
• تخزين: Store the pressure washer in a dry, frost-free environment. If storing for extended periods, consider using a pump protector/antifreeze solution.
• تنظيف الفوهة: If the nozzle becomes clogged, use the included nozzle cleaning tool (if applicable) or a small wire to clear any obstructions.
• العناية بالخرطوم والسلك: قم بلف خرطوم الضغط العالي وسلك الطاقة بشكل مرتب بعد كل استخدام. تجنب ثنيهما أو إتلافهما.

استكشاف الأخطاء وإصلاحها

تحديد

الشكل 6: الأبعادview of the AR613 pressure washer.

الضمان والدعم

The AR Blue Clean AR613 Pressure Washer typically comes with a ضمان لمدة سنتين from the manufacturer, AR North America. Please refer to your product registration card or the manufacturer's official webالموقع لمعرفة شروط وأحكام الضمان المحددة.

For technical support, parts, or warranty claims, please contact AR North America customer service. Contact information can usually be found on the product packaging or their official webموقع.

Visit the official AR Blue Clean Store on Amazon for more information: AR Blue Clean Store
