Lampa N15046 Aluminum Roof Bars Instruction Manual

1. المقدمة

This manual provides instructions for the proper installation, operation, and maintenance of your Lampa N15046 Aluminum Roof Bars. These roof bars feature an elegant design with an anodized aluminum tubular profile, ready for the insertion of quick 'T' fittings in the upper channel. Please read these instructions carefully before installation and use to ensure safety and optimal performance.

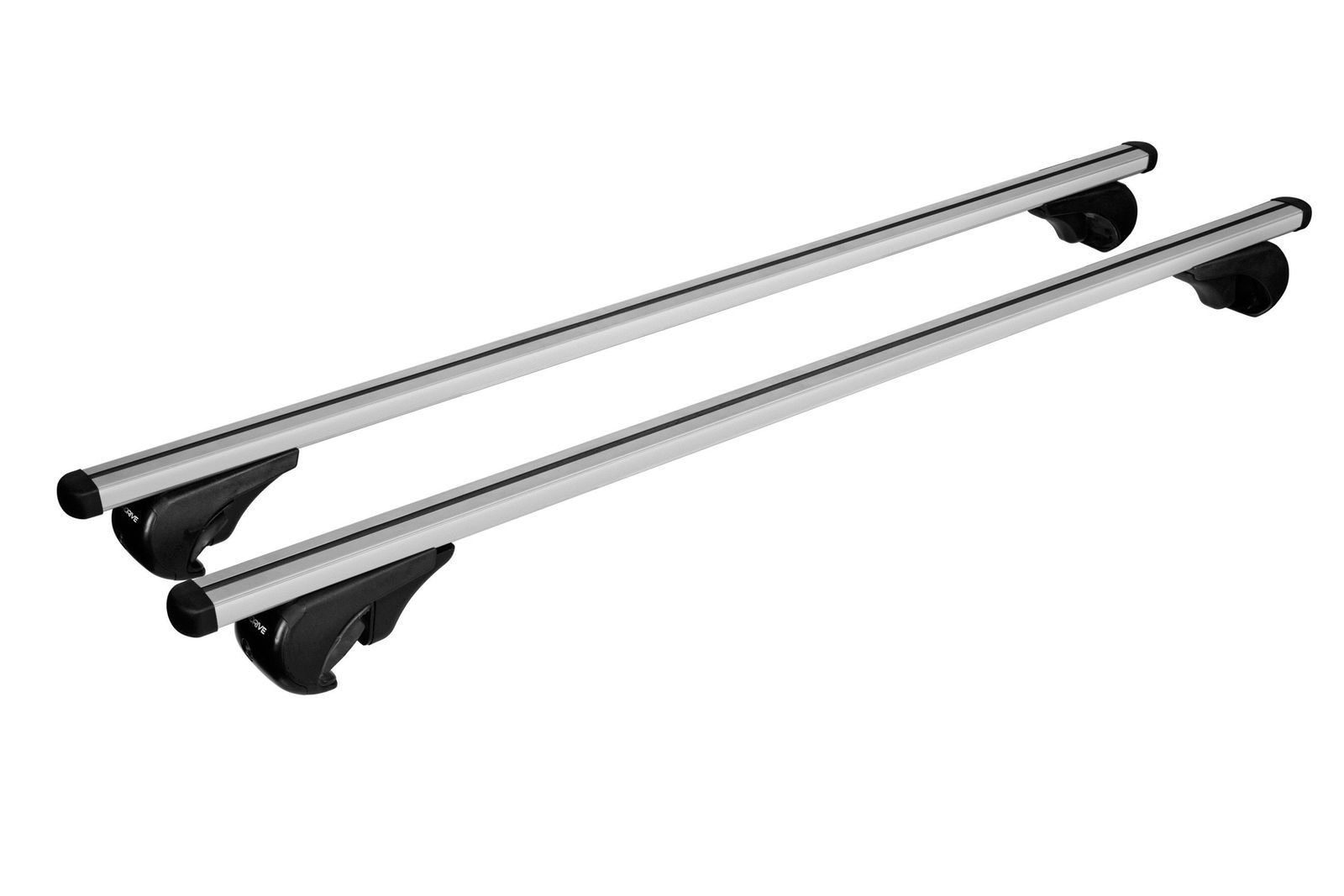

الشكل 1.1: Lampa N15046 Aluminum Roof Bars.

المنتج انتهىview:

• Anodized aluminum tubular profile.
• Designed for quick 'T' fitting insertion.
• Rubber base for load support.
• Complete anti-theft lock system.
• Pre-assembled for quick mounting.

2. معلومات السلامة

WARNING: Improper installation or use can lead to serious injury or property damage.

• Always ensure the roof bars are securely fastened before driving.
• لا تتجاوز سعة الحمولة القصوى البالغة 75 كجم (165 رطلاً).
• Distribute the load evenly on the roof bars.
• Regularly check all fasteners and connections, especially after driving on rough roads or at high speeds.
• Be aware of the increased height and width of your vehicle when roof bars are installed, especially when entering garages or low-clearance areas.
• This product is only for use on vehicles with raised roof rails.

الشكل 2.1: Illustration of a raised roof rail, indicating compatibility requirement. These roof bars are designed exclusively for vehicles equipped with raised roof rails, as depicted in the image.

3. الإعداد والتثبيت

الampa N15046 roof bars are pre-assembled for quick installation. Follow these steps for secure mounting:

1. Identify Vehicle Compatibility: Ensure your vehicle has raised roof rails. Refer to Figure 2.1 for an example of compatible roof rails.
2. فك مكونات الحزمة: Remove the roof bars from their packaging. Verify all components are present.
3. اضبط الطول (إذا لزم الأمر): The roof bars come in various sizes (S, M, L, XL) to fit different vehicle widths. Adjust the length of the bars to match the width of your vehicle's roof rails. The maximum lengths are:
   • S: max 100.5 cm
   • M: max 112.5 cm
   • L: max 119.5 cm
   • XL: max 132.5 cm
4. تحديد موضع قضبان السقف: Place the roof bars onto your vehicle's raised roof rails. Ensure they are evenly spaced and parallel to each other.
5. تأمين Clamps: انخرط في الفصلamping mechanism around the raised roof rails. The rubber base of the support should make firm contact with the rail.
6. شد المثبتات: Use the provided tool (e.g., Allen key/brucola mentioned in a review) to tighten all fasteners until the roof bars are firmly secured to the rails. Do not overtighten.
7. Engage Anti-theft Lock: Utilize the complete anti-theft lock system to secure the roof bars to prevent unauthorized removal.
8. التحقق النهائي: Before driving, gently pull and push on each roof bar to confirm it is securely attached and does not move.

الشكل 3.1: Dimensional diagram of the Lampa N15046 roof bars, illustrating the height, foot width, and adjustable maximum lengths for different sizes (S, M, L, XL).

الشكل 3.2: لقطة مقرّبة view من Lampa N15046 aluminum roof bars, highlighting the design and construction of the bars and their mounting feet.

4. تعليمات التشغيل

Once installed, your Lampa N15046 roof bars are ready for use. Observe the following guidelines:

• قدرة التحميل: Do not exceed the maximum load capacity of 75 kg (165 lbs). This includes the weight of the roof bars themselves and any accessories.
• توزيع الحمل: Distribute the weight of your cargo as evenly as possible across both roof bars. Secure items to prevent shifting during transit.
• تأمين البضائع: Use appropriate straps, nets, or other securing devices to firmly attach your cargo to the roof bars. Ensure no part of the cargo obstructs your view أو يعيق تشغيل المركبة.
• اعتبارات القيادة:
  • Adjust your driving speed to suit road conditions and the load carried.
  • Be aware that the vehicle's center of gravity will be higher, affecting handling, especially when cornering or in crosswinds.
  • Increased wind resistance may lead to higher fuel consumption.
• التوافق مع الملحقات: The anodized aluminum tubular profile is designed for the insertion of quick 'T' fittings, allowing for easy attachment of various roof rack accessories (e.g., bike carriers, ski carriers, roof boxes).

5. الصيانة

Regular maintenance ensures the longevity and safe operation of your roof bars:

• تنظيف: Clean the aluminum bars and plastic components with mild soap and water. Avoid abrasive cleaners or solvents that could damage the finish.
• تقتيش: Periodically inspect all parts for signs of wear, damage, or corrosion. Pay close attention to the clamping mechanisms, rubber bases, and locking system.
• فحص المثبتات: Re-tighten all mounting bolts and fasteners regularly, especially after the first few uses and before long trips.
• تشحيم: If the locking mechanism becomes stiff, apply a small amount of graphite lubricant to the keyhole.
• تخزين: If not in use for extended periods, consider removing the roof bars and storing them in a dry, protected area to prolong their lifespan.

6. استكشاف الأخطاء وإصلاحها

يتناول هذا القسم المشكلات الشائعة التي قد تواجهها:

• Issue: Roof bars feel loose after installation.

  حل: Re-check all fasteners. Ensure they are tightened securely according to the installation instructions. Verify that the rubber bases are properly seated on the vehicle's raised roof rails.

• Issue: Excessive wind noise during driving.

  حل: Wind noise can be common with roof bars. Ensure the bars are positioned correctly and not twisted. Check if any accessories are contributing to the noise. Some users report noise above 80 km/h (50 mph); this can be a characteristic of roof bars. Consider aerodynamic fairings if noise is a significant concern, though not included with this product.

• Issue: Anti-theft lock is stiff or not working.

  حل: Apply a small amount of graphite lubricant into the keyhole and work the key gently. Ensure no debris is obstructing the mechanism.
• Issue: Difficulty attaching accessories to the T-channel.

  حل: Ensure you are using quick 'T' fittings compatible with the standard aluminum profile. Check for any obstructions within the channel.

7. المواصفات

8. معلومات الضمان

Specific warranty details for the Lampa N15046 Aluminum Roof Bars are not provided in this manual. Please refer to the product packaging or contact the retailer/manufacturer directly for information regarding warranty coverage and terms.

9. دعم العملاء

If you have any questions, require assistance with installation, or encounter issues not covered in this manual, please contact your point of purchase or the manufacturer, Lampa, for support.

For further information, you may visit the official Lampa website or consult the product page where you purchased the item.
