Kanto PMX700 Pro Series Full Motion Articulating TV Wall Mount User Manual

مقدمة

The Kanto PMX700 Pro Series Full Motion Articulating TV Wall Mount is designed for 50" to 100" TVs, offering adjustable positioning, integrated cable management, and toolless tilt functionality. This manual provides comprehensive instructions for safe and effective installation, operation, and maintenance of your TV wall mount.

معلومات السلامة

• Read all instructions carefully before installation. Failure to do so may result in personal injury or property damage.
• يُنصح بالتركيب الاحترافي لتحقيق السلامة والأداء الأمثل.
• تأكد من أن سطح التثبيت يمكنه تحمل الوزن الإجمالي للحامل وجهاز التلفزيون بشكل آمن.
• لا تتجاوز الحد الأقصى لوزن الحامل.
• Always use the provided hardware and follow the specified drilling and tightening procedures.

محتويات الحزمة

• Kanto PMX700 TV Wall Mount
• Mounting Hardware (lag bolts, anchors, washers, spacers)
• قالب الحفر
• Integrated Cable Management Clips and Covers

الإعداد والتثبيت

The PMX700 mount features a segmented design for easier installation. The wall plate can be installed unassisted, and the arm assembly can then be hooked into place.

الخطوة 1: تحضير التلفاز

Attach the TV brackets to the back of your television. Ensure proper screw length and use spacers if necessary to avoid damaging internal components.

مؤخرة view of a television with the Kanto PMX700 brackets attached, ready for mounting.

الخطوة الثانية: تحديد مواقع دعامات الجدار ووضع علامات على نقاط الحفر

Use a stud finder to locate the center of your wall studs. Use the provided drill template to mark the precise drilling locations.

The Kanto PMX700 mount's wall plate, highlighting the horizontal offset feature for flexible stud placement.

الخطوة 3: تثبيت لوحة الحائط

Drill pilot holes and secure the wall plate to the wall using the appropriate lag bolts and anchors for your wall type (wood studs or concrete).

The Kanto PMX700 mount in its fully retracted position, showing its low-profile design against the wall.

Step 4: Attach Arm Assembly

The arm assembly can be easily hooked into the wall plate and secured with the provided hardware. This segmented design simplifies the installation process.

أمام view of the Kanto PMX700 TV wall mount, showcasing its robust construction and articulating arms.

الخطوة 5: تركيب التلفزيون

Carefully lift the television and hook the TV brackets onto the arm assembly. Secure the TV using the safety screws.

A television mounted on the Kanto PMX700, extended from the wall, demonstrating its full motion capabilities.

تعليمات التشغيل

ضبط الوضع

The full-motion design allows you to extend, swivel, and tilt your TV to achieve the optimal viewing angle. The PMX700 extends up to 31.3 inches from the wall. The horizontal offset feature allows the arm assembly to be positioned independently of the wall plate, making it easier to center your television regardless of stud location.

جانب view of the Kanto PMX700 TV wall mount fully extended, demonstrating its reach and articulation.

Toolless Tilt

The PMX series features a specially designed tilt mechanism that allows for precise adjustments without the need of tools. Set the tension to allow for fingertip adjustments, or lock it in place at the desired angle. The maximum tilt angle is 12 degrees.

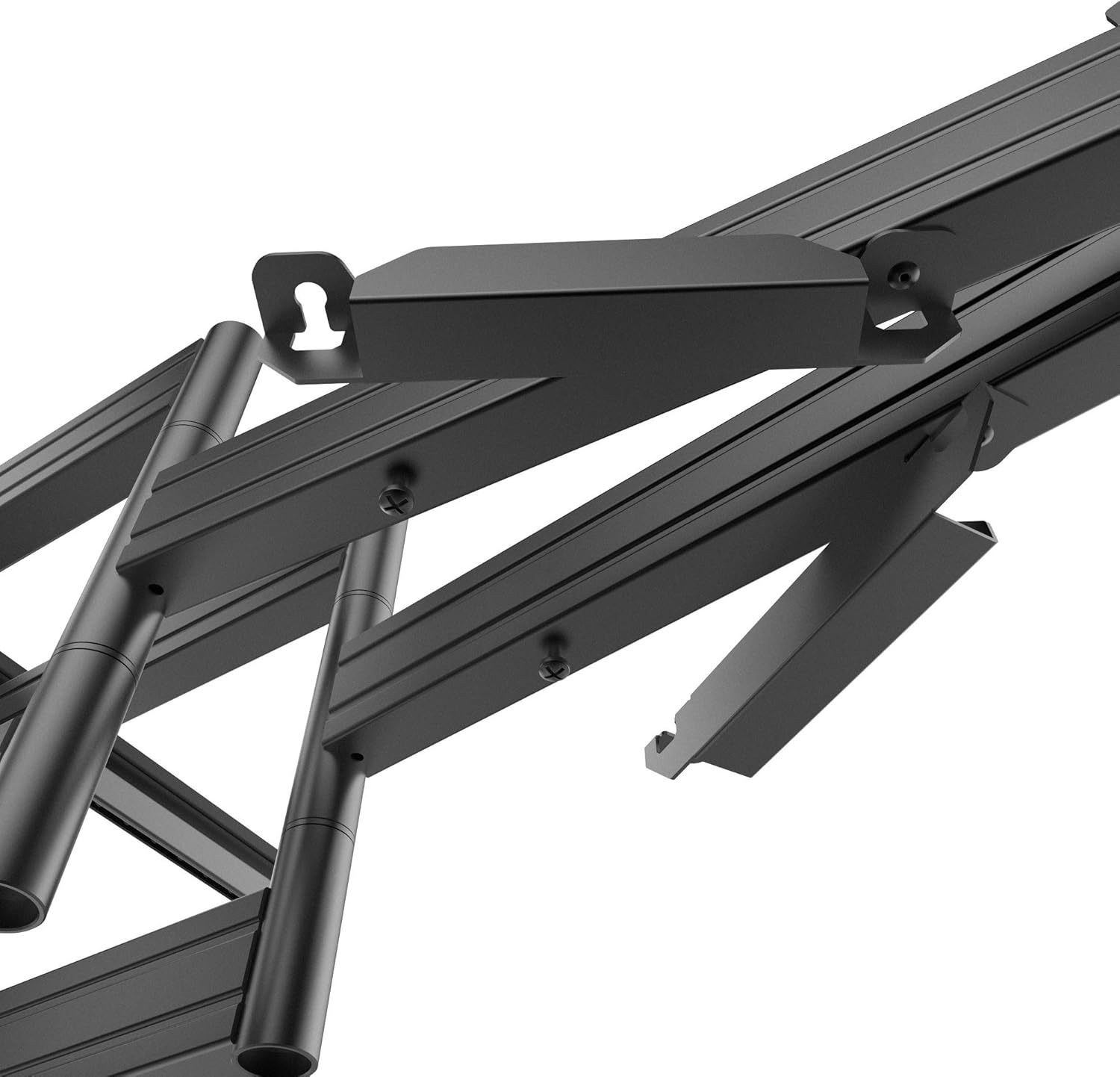

مفصل view of the toolless tilt mechanism on the Kanto PMX700 mount.

إدارة الكابلات

Utilize the integrated cable management clips and covers to route and conceal cables for a clean and organized appearance. This helps maintain a professional and tidy setup.

Close-up of the Kanto PMX700 mount's cable management system, showing cables neatly routed.

صيانة

• Regularly check all screws and bolts to ensure they are securely tightened. Loose connections can compromise safety and stability.
• نظّف الحامل بقطعة قماش ناعمة وجافة. تجنّب استخدام المنظفات الكاشطة أو المذيبات التي قد تُتلف الطلاء.
• Periodically lubricate moving parts with a silicone-based spray to maintain smooth articulation and tilt functionality.

استكشاف الأخطاء وإصلاحها

• If the TV is not level: Adjust the leveling screws on the TV brackets. The segmented design allows for easy post-installation leveling.
• If the mount feels loose: Re-tighten all wall plate and arm assembly bolts. Refer to the installation steps for proper torque.
• If movement is stiff: Apply a small amount of silicone-based lubricant to the articulating joints.
• If cables are pinched: Re-route cables through the integrated management system, ensuring they have enough slack for full motion.

تحديد

الضمان والدعم

The Kanto PMX700 TV Wall Mount comes with a Ten-year manufacturer's warranty, ensuring long-term reliability and peace of mind.

For technical support, warranty claims, or additional assistance, please visit the official Kanto website or contact Kanto customer service directly. Contact information can typically be found on the Kanto webتغليف الموقع أو المنتج.
