BORLA Cat-Back Exhaust System User Manual

1. المقدمة

This manual provides essential information for the installation, operation, and maintenance of your BORLA 140615 Cat-Back Exhaust System. Designed for specific Ford F-150 models, this system is engineered to enhance your vehicle's exhaust sound and performance. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and longevity of your product.

The BORLA 140615 system features straight-through technology, aggressive sound, maximum flow and power, and is manufactured from high-quality austenitic stainless steel with mandrel-bent pipes for an accurate fit and legendary durability.

2. انتهى المنتجview

The BORLA 140615 Cat-Back Exhaust System is a complete exhaust solution designed to replace your vehicle's factory exhaust from the catalytic converter back. It includes all necessary piping, mufflers, and exhaust tips for a bolt-on installation.

الشكل 2.1: انفجرت view of the BORLA 140615 Cat-Back Exhaust System, showing all components including pipes, muffler, and dual exhaust tips.

Figure 2.2: Diagram highlighting key features of the BORLA exhaust system, including precision fit, superior T-304 stainless steel construction, smooth mandrel bends, and the Million Mile Warranty.

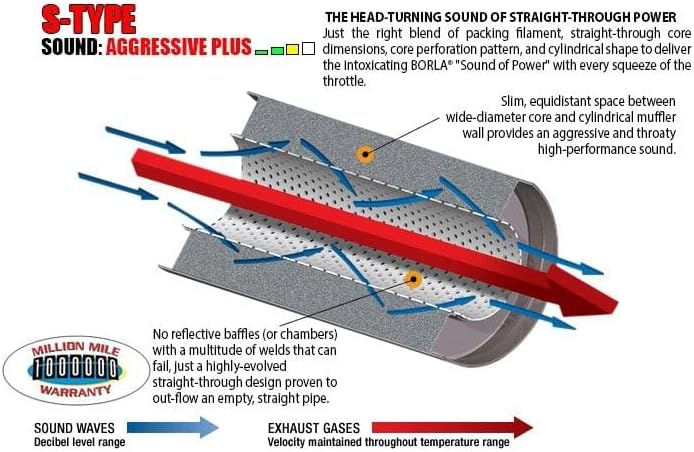

Figure 2.3: Illustration detailing the S-Type sound technology, showcasing the straight-through core design that delivers an aggressive, high-performance sound.

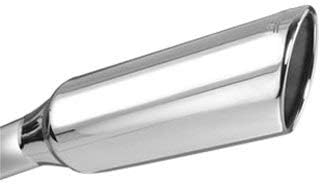

الشكل 2.4: لقطة مقربة view of a polished BORLA exhaust tip, demonstrating the quality finish.

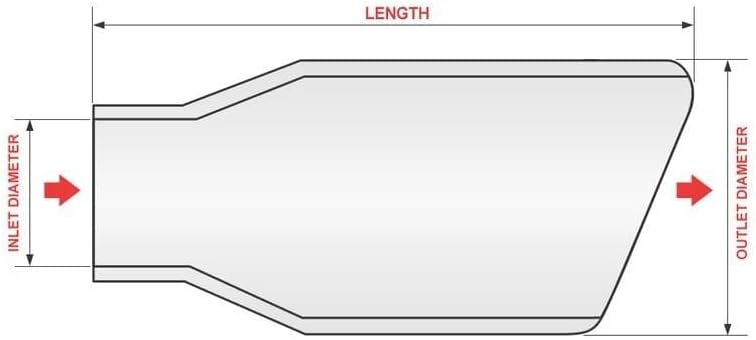

Figure 2.5: Technical diagram providing dimensional details for the exhaust tip, including inlet diameter, outlet diameter, and overall length.

3. التثبيت (الإعداد)

The BORLA 140615 Cat-Back Exhaust System is designed for a direct bolt-on installation, utilizing existing factory hanger locations. All components are precision CNC manufactured to ensure an accurate fit.

Figure 3.1: Overhead diagram illustrating the intended routing of the BORLA exhaust system underneath the vehicle chassis.

الشكل 3.2: خلفي view of a Ford F-150 with the BORLA exhaust system installed, showcasing the dual exhaust tips.

For detailed, step-by-step installation instructions, including required tools and safety precautions, please refer to the official PDF User Manual available at: BORLA 140615 User Manual (PDF). It is highly recommended to have the installation performed by a qualified professional.

4. التشغيل

Once installed, the BORLA 140615 Cat-Back Exhaust System will provide the classic BORLA sound, characterized by an aggressive yet refined tone. The straight-through design ensures maximum exhaust flow, contributing to enhanced engine performance and an improved driving experience.

The exhaust note provides acoustic feedback of engine RPM, aiding the driver in critical decisions such as gear selection or throttle input during rev-match shifting. The system is designed to deliver an exhilarating sensory feedback of sound, helping the driver stay within the powerband.

5. الصيانة

Your BORLA exhaust system is constructed from high-quality T-304 austenitic stainless steel, which offers excellent corrosion resistance and durability. To maintain its appearance and performance:

• Regularly clean the exhaust tips and visible piping with a mild automotive cleaner and a soft cloth.
• Avoid abrasive cleaners or harsh chemicals that could damage the stainless steel finish.
• Periodically inspect all connections, clamps, and hangers to ensure they remain secure and free from damage.
• Check for any signs of exhaust leaks, which may indicate a loose connection or damaged gasket.

For optimal shine, consider using a stainless steel polish specifically designed for automotive applications.

6. استكشاف الأخطاء وإصلاحها

If you encounter any issues with your BORLA exhaust system, consider the following general troubleshooting steps:

• Excessive Noise or Rattling: التحقق من جميع العناصرamps and hangers for tightness. Ensure no part of the exhaust system is making contact with the vehicle's chassis or other components.
• تسربات العادم: Listen for hissing sounds, especially when the engine is cold. Inspect all joints and welds for visible signs of leaks. Tighten clamps or replace gaskets as necessary.
• عدم المحاذاة: If the exhaust tips or pipes appear misaligned, re-check the installation steps, particularly the hanger positions and the tightness of all connections. Minor adjustments to hangers may be required.

For persistent issues or concerns, it is recommended to consult with a certified automotive technician or contact BORLA customer support directly.

7. المواصفات

8. الضمان والدعم

The BORLA 140615 Cat-Back Exhaust System is backed by BORLA's renowned Million Mile Warranty. This warranty covers defects in materials and workmanship for the lifetime of the product, ensuring long-term peace of mind.

For warranty claims, technical support, or any product-related inquiries, please contact BORLA directly through their official website or customer service channels. Always refer to your product model number (140615) when seeking support.

Additional resources, including the detailed user guide, can be found at: BORLA 140615 User Manual (PDF).
