Danby 3.2 Cubic Feet Compact Refrigerator (DCR032C1WDB) User Manual

1. معلومات هامة حول السلامة

Read all instructions before using this appliance. Failure to follow these instructions may result in electric shock, fire, or property damage and will void the product warranty.

• السلامة الكهربائية: Ensure the refrigerator is connected to a properly grounded 120V, 60Hz electrical outlet. Do not use extension cords or ungrounded adapters.
• المبردات القابلة للاشتعال: This appliance uses R600a refrigerant, which is flammable. Handle with care and ensure proper ventilation. Do not damage the refrigerant circuit.
• تهوية: Allow adequate space around the refrigerator for proper air circulation. Maintain at least 5 inches (12.7 cm) of space at the back and sides.
• سلامة الطفل: Supervise children to ensure they do not play with the appliance. Old refrigerators are dangerous if left unattended. Remove doors before disposal.
• تنظيف: افصل الجهاز دائمًا عن الكهرباء قبل التنظيف أو إجراء الصيانة.
• خدمة: لا تحاول إصلاح أو استبدال أي جزء من ثلاجتك إلا إذا أوصى هذا الدليل بذلك صراحةً. يجب إحالة جميع أعمال الصيانة الأخرى إلى فني مؤهل.

2. انتهى المنتجview

The Danby DCR032C1WDB is a 3.2 cubic feet (90 liters) compact refrigerator designed for efficient cooling in smaller spaces. It features a manual defrost system, a precise mechanical thermostat, and an environmentally friendly R600a refrigerant.

المميزات الرئيسية:

• 3.2 cu.ft (90 L) capacity.
• Energy Star compliant for energy efficiency.
• Full-width freezer section.
• نظام إزالة الجليد اليدوي.
• One full-width and one half-width adjustable wire shelves.
• Integrated door shelving with tall bottle storage.
• CanStor beverage dispensing system.
• Integrated door handle.
• مفصلة باب قابلة للعكس لسهولة التركيب.

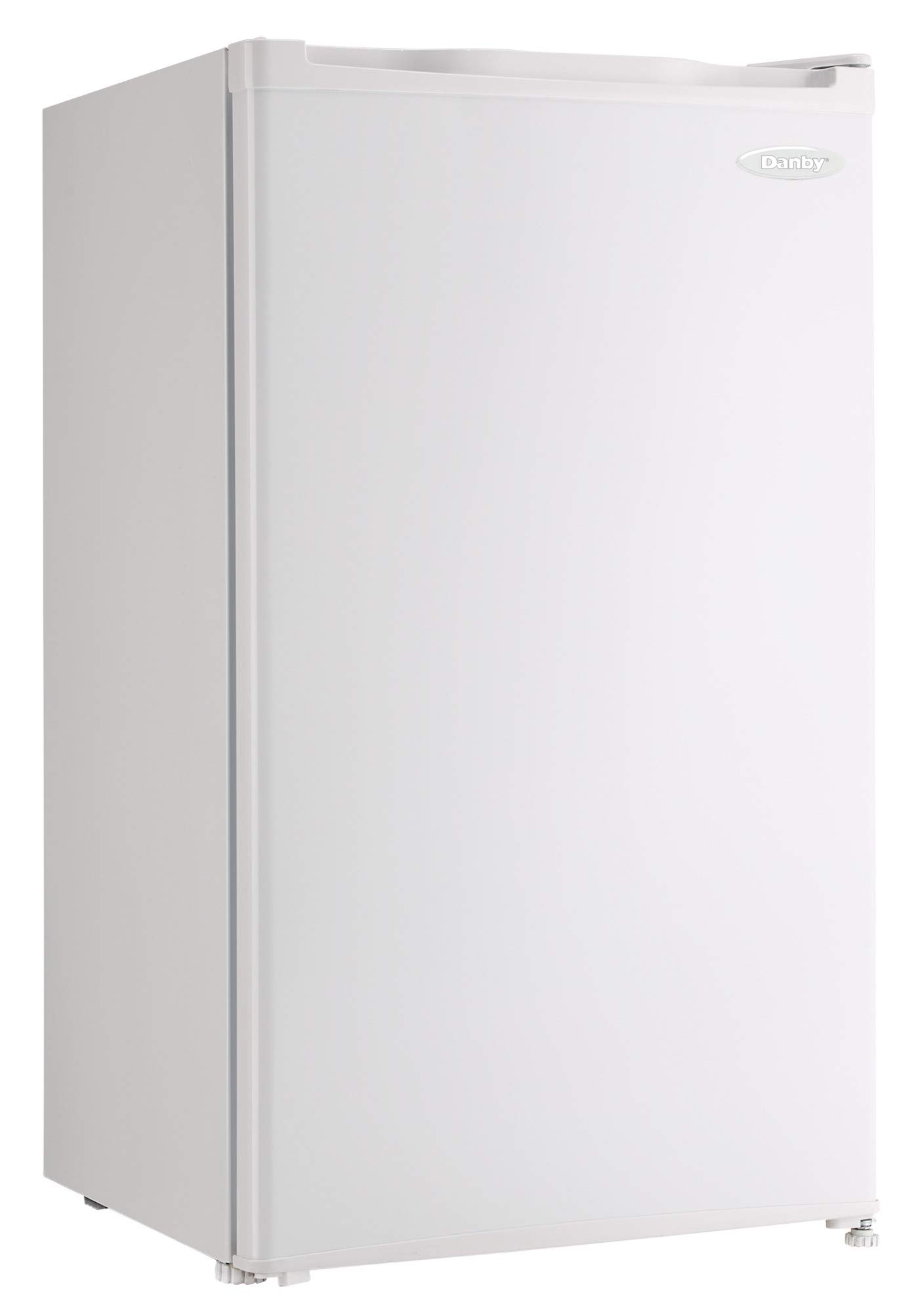

الشكل 2.1: الخارج view of the Danby DCR032C1WDB compact refrigerator. This image shows the overall design of the appliance.

الشكل 2.2: الداخلية view of the Danby DCR032C1WDB compact refrigerator with empty shelves. This image highlights the internal layout, including the freezer compartment and door storage.

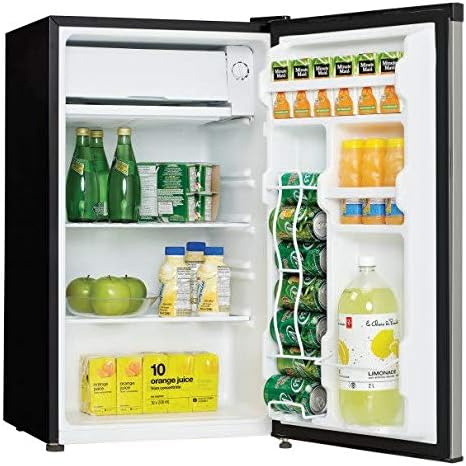

الشكل 2.3: الداخلية view of the Danby DCR032C1WDB compact refrigerator with various items stored. This demonstrates the storage capacity and the CanStor beverage dispensing system.

3. الإعداد والتثبيت

3.1 الموقع

Choose a location with a strong, level floor capable of supporting the refrigerator when fully loaded. Avoid direct sunlight or heat sources. Ensure adequate ventilation space around the unit (minimum 5 inches at back and sides).

3.2 التسوية

The refrigerator must be level for proper operation. Adjust the two front leveling legs by turning them clockwise to raise or counter-clockwise to lower the unit. Use a level to ensure stability.

3.3 Reversible Door Hinge

The door hinge is reversible, allowing for left or right-handed opening. Refer to the detailed instructions in the full product manual for the door reversal procedure. This typically involves removing the top hinge cover, unscrewing hinges, moving the door, and reattaching hinges on the opposite side.

3.4 التشغيل الأولي

After positioning and leveling, plug the refrigerator into a dedicated 120V, 60Hz grounded outlet. Allow the unit to stand for at least 2-4 hours before loading with food to allow refrigerants to settle.

4. تعليمات التشغيل

4.1 التحكم في درجة الحرارة

The refrigerator is equipped with a mechanical thermostat located inside the unit, typically near the freezer compartment. Turn the dial to adjust the temperature setting. Higher numbers indicate colder temperatures. Start with a medium setting and adjust as needed based on ambient temperature and food load.

عدد 4.2 أرفف قابلة للتعديل

The wire shelves can be adjusted to different heights to accommodate various item sizes. To adjust, carefully lift the shelf and slide it out. Reinsert into desired shelf supports.

4.3 CanStor Beverage Dispensing System

The door features a CanStor system designed to hold standard beverage cans. Load cans from the top, and they will dispense from the bottom. This system helps organize beverages and maximize space.

5. الصيانة والتنظيف

5.1 إزالة الجليد يدوياً

This refrigerator features a manual defrost system. Frost buildup in the freezer compartment should be removed regularly to maintain efficiency. When frost reaches approximately 1/4 inch (6 mm) thick, defrost the unit:

1. افصل الثلاجة عن مأخذ التيار الكهربائي.
2. Remove all food items and place them in a cooler or another refrigerated space.
3. Leave the refrigerator door open to allow frost to melt naturally. You can place towels at the bottom to absorb water. Do not use sharp objects or heating devices to speed up defrosting, as this can damage the unit.
4. بمجرد ذوبان كل الصقيع، قم بتنظيف وتجفيف الجزء الداخلي جيدًا.
5. Plug the refrigerator back in and allow it to cool for a few hours before returning food items.

5.2 التنظيف العام

يساعد التنظيف المنتظم على الحفاظ على النظافة والكفاءة.

• الداخلية: Clean the interior with a solution of mild soap and warm water. Rinse with clean water and dry thoroughly. Do not use abrasive cleaners or harsh chemicals.
• الخارج: Wipe the exterior surfaces with a soft cloth and mild detergent. For stainless steel finishes (if applicable), use a specialized stainless steel cleaner.
• حشية الباب: قم بتنظيف حشية الباب بانتظام للتأكد من إحكام الغلق.

6. استكشاف الأخطاء وإصلاحها

قبل الاتصال بخدمة العملاء ، أعدview القضايا والحلول الشائعة التالية:

7. المواصفات

Figure 7.1: Dimensional diagram of the Danby DCR032C1WDB compact refrigerator, showing height, width, and depth measurements.

8. الضمان ودعم العملاء

8.1 معلومات الضمان

This Danby appliance is covered by a ضمان لمدة 12 شهرًا على قطع الغيار واليد العاملة from the date of purchase. This warranty includes in-home service for covered defects. Please retain your original purchase receipt as proof of purchase for warranty claims.

The warranty does not cover damage resulting from misuse, accident, alteration, neglect, or improper installation. For full warranty terms and conditions, please refer to the official Danby warranty documentation provided with your product or visit the Danby webموقع.

8.2 دعم العملاء

For technical assistance, troubleshooting not covered in this manual, or warranty service, please contact Danby Customer Support. Have your model number (DCR032C1WDB) and proof of purchase ready when contacting support.

You can find contact information for Danby Customer Support on their official webموقع: www.danby.com/support
