معلومات هامة حول السلامة
يرجى قراءة جميع التعليمات وفهمها جيدًا قبل التجميع والاستخدام. قد يؤدي عدم اتباع هذه التعليمات إلى إصابة المنتج أو تلفه.
- تأكد من وجود جميع الأجزاء وعدم تعرضها للتلف قبل البدء في التجميع.
- Assemble the gazebo on a flat, level surface.
- Secure the gazebo to the ground using appropriate anchors (not included) through the holes in the base of the legs. This is crucial for stability, especially in windy conditions.
- Do not use the gazebo in extreme weather conditions, such as heavy winds, rain, or snow. Remove the canopy during such conditions to prevent damage.
- أبقِ جميع مصادر اللهب والحرارة بعيدة عن قماش الشرفة.
- مطلوب تجميع الكبار. أبقِ الأطفال بعيدًا أثناء التجميع.
محتويات الحزمة
تأكد من تضمين جميع المكونات المذكورة أدناه في عبوتك. في حال وجود أي أجزاء مفقودة أو تالفة، يُرجى التواصل مع خدمة العملاء.
- Steel Frame Components (legs, beams, connectors)
- Two-Tier Vented Canopy (Polyester fabric, Terra Cotta color)
- Hardware Pack (screws, nuts, washers, tools if provided)
- دليل التعليمات
Note: Ground anchors are not included and must be purchased separately for secure installation.
تعليمات الإعداد
Assembly typically requires two adults. Allow ample time for setup. Refer to the diagram for component identification and dimensions.

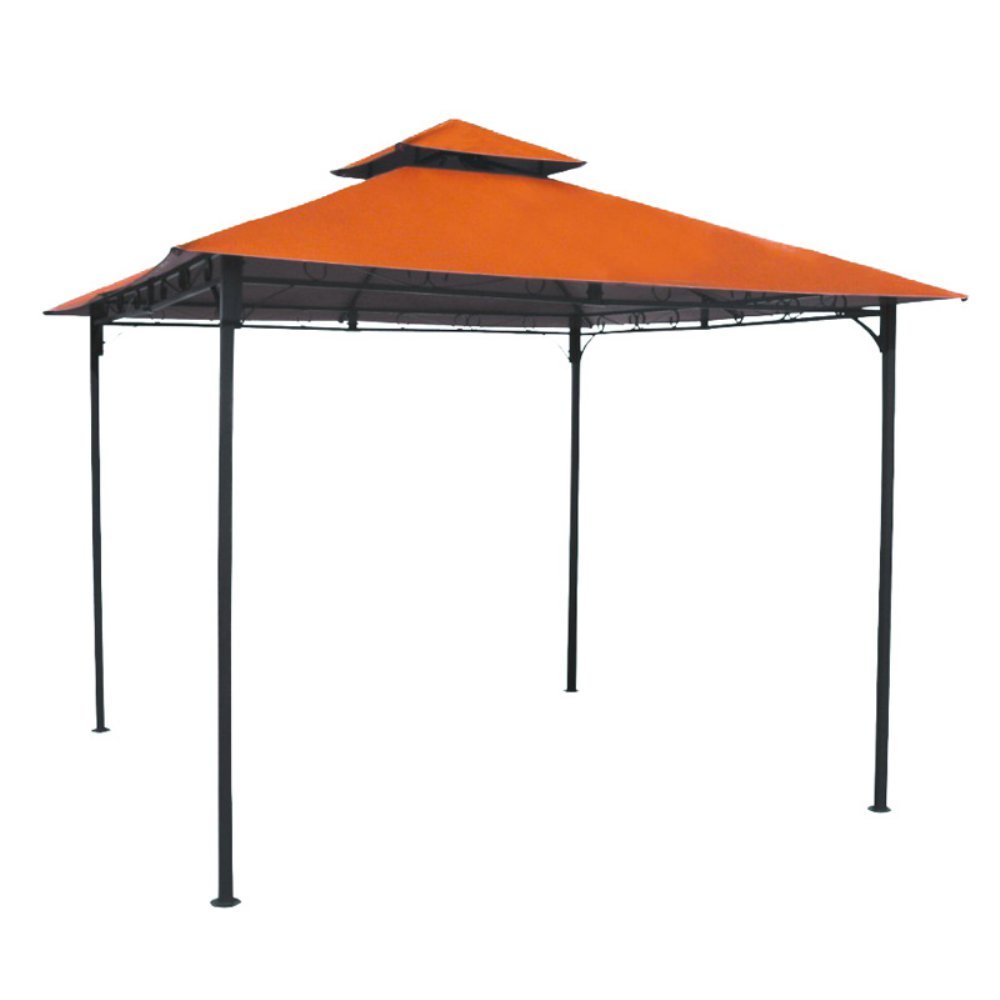

Image: The International Caravan Square Vented Canopy Gazebo, showing its overall dimensions: 118 inches in length, 105 inches in width, and 118 inches in height. The gazebo features a terra cotta colored two-tier canopy and a dark-colored steel frame.
- فك الأجزاء وتحديدها: Carefully remove all components from the packaging. Lay them out and compare them against the parts list to ensure everything is present.
- تجميع الإطار الأساسي: Connect the horizontal beams to the vertical legs to form the base structure. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
- Install Upper Frame Components: Attach the upper frame sections that support the canopy. This typically involves connecting corner pieces and roof support bars.
- قم بتثبيت المظلة: Carefully drape the two-tier vented canopy over the assembled frame. Secure the canopy to the frame using the provided fasteners or ties. Ensure the canopy is taut and evenly distributed.
- Final Tightening and Securing: Once the entire structure is assembled and the canopy is in place, fully tighten all bolts and screws. Secure the gazebo to the ground using appropriate anchors through the pre-drilled holes in the leg bases.
تعليمات التشغيل
The International Caravan Square Vented Canopy Gazebo is designed for outdoor use, providing shade and shelter.
- الاستخدام المقصود: This gazebo is intended for temporary or semi-permanent outdoor shade. It is not designed as a permanent structure.
- Canopy Ventilation: The two-tier vented canopy design helps to reduce wind pressure and improve air circulation.
- حالة الطقس: Always monitor weather conditions. In anticipation of strong winds, heavy rain, or snow, remove the canopy to prevent damage to the gazebo and potential hazards.
صيانة
ستساهم الصيانة الدورية في إطالة عمر ومظهر شرفة الحديقة الخاصة بك.
- تنظيف المظلة: Clean the polyester canopy fabric with mild soap and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
- العناية بالإطار: Inspect the steel frame periodically for any signs of rust or damage. Clean the frame with a damp cloth. Touch up any scratches on the powder-coated finish to prevent rust.
- فحص الأجهزة: افحص جميع البراغي والوصلات بشكل دوري للتأكد من إحكام ربطها. أعد ربطها حسب الحاجة.
- التخزين الشتوي: For prolonged periods of non-use or during winter months, it is recommended to disassemble the gazebo and store it in a dry, protected area to prevent weather damage.
استكشاف الأخطاء وإصلاحها
| مشكلة | السبب المحتمل | حل |
|---|---|---|
| الشرفة غير مستقرة أو متذبذبة. | Not properly anchored; bolts are loose; uneven ground. | Ensure all legs are securely anchored to the ground. Check and tighten all frame bolts. Move to a level surface if possible. |
| Canopy does not fit correctly. | Canopy installed incorrectly; frame not fully extended or assembled properly. | Review assembly instructions for canopy placement. Ensure the frame is fully assembled and all connections are secure. |
| تجمع المياه على المظلة. | Canopy not taut enough; heavy rainfall. | Adjust canopy to ensure it is stretched tightly over the frame. Remove canopy during heavy rain. |
تحديد
- رقم الموديل: YF-3136B-TC-IC
- ماركة: International Caravan
- الأبعاد (الطول × العرض × الارتفاع): 118" x 105" x 118" (approximately 9.8 ft x 8.75 ft x 9.8 ft)
- مادة الإطار: Powder Coated Alloy Steel
- مادة المظلة: UV Protected Polyester
- Canopy Color: تيرا كوتا
- شكل: مربع
- وزن السلعة: 51 رطل
- التجميع مطلوب: نعم
- رمز المنتج العالمي: 700493383511
الضمان والدعم
For warranty information or assistance with your International Caravan Square Vented Canopy Gazebo, please contact the manufacturer directly. Keep your purchase receipt and model number (YF-3136B-TC-IC) handy for all inquiries.
الشركة المصنعة: International Caravan
For further support, please refer to the contact information provided with your original purchase documentation or visit the official International Caravan webموقع.
