Beurer BM 58 Arm Blood Pressure Monitor

المنتج انتهىview

The Beurer BM 58 Arm Blood Pressure Monitor is a fully automatic device designed for accurate and convenient measurement of blood pressure and pulse rate on the upper arm. It features a large, illuminated display, sensor touch buttons, and a USB interface for data transfer to the Beurer HealthManager software.

تتضمن الميزات الرئيسية ما يلي:

• Fully automatic blood pressure and pulse measurement on the upper arm.
• Extra-large, illuminated black display for easy readability.
• Sensor touch buttons for intuitive operation.
• USB interface for transferring measurement values to PC.
• Two user memories, each storing 60 measurement values.
• Calculation of average values (all stored, morning/evening for last 7 days).
• Arrhythmia detection and warning.
• Risk indicator based on WHO classification.
• Automatic pressure preselection and air release.
• وظيفة الإغلاق التلقائي.
• Warning in case of application errors.
• Battery change indicator.

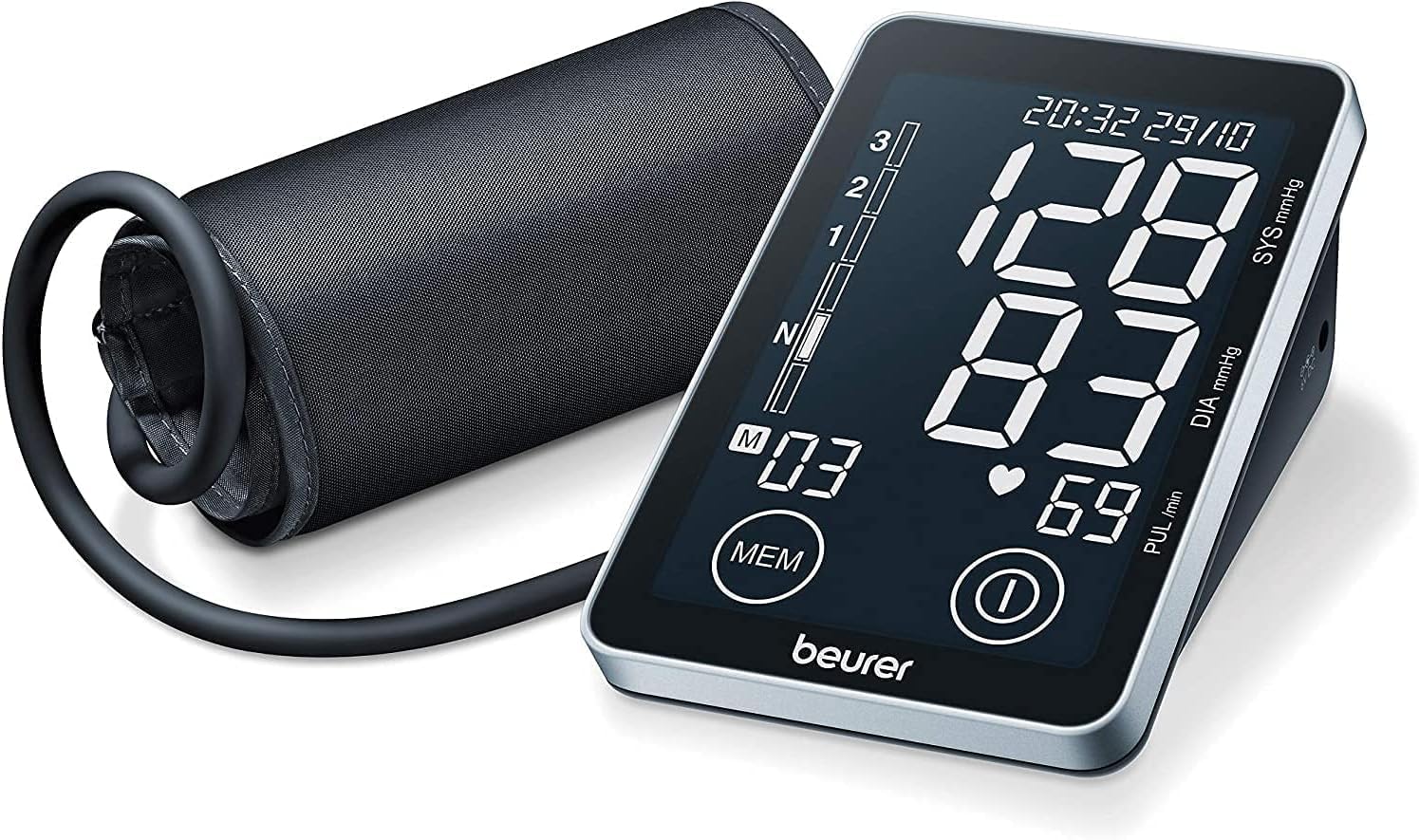

The Beurer BM 58 blood pressure monitor features a sleek black display unit and an attached arm cuff, ready for use.

محتويات الحزمة

Please check that all items are included in the delivery:

• Beurer BM 58 Blood Pressure Monitor
• Arm Cuff (for arm circumferences 22-30 cm)
• كابل يو اس بي
• 4 × 1.5 فولت بطاريات AA
• حقيبة تخزين واقية
• دليل التعليمات
• بطاقة الضمان

يثبت

1. إدخال البطاريات

1. افتح غطاء حجرة البطارية الموجود في الجزء الخلفي من الجهاز.
2. Insert the four 1.5V AA batteries, ensuring correct polarity (+/-).
3. أغلق غطاء حجرة البطارية جيدًا.

2. تركيب سوار الذراع

The cuff is designed for arm circumferences of 22-30 cm. Ensure the cuff fits snugly but not too tightly.

1. Connect the air tube of the cuff to the air connector on the left side of the blood pressure monitor.
2. Place the cuff on your bare upper left arm, approximately 2-3 cm above the elbow joint. The air tube should run along the inside of your arm towards your palm.
3. Fasten the cuff with the hook-and-loop fastener so that it is snug but not constricting.

This image illustrates the correct placement of the arm cuff on the upper arm. The cuff is designed for arm circumferences between 22 and 30 cm, ensuring a proper fit for accurate measurements.

3. Initial Settings (Date, Time, User Profile)

Upon first use or after battery replacement, you may need to set the date and time. The device supports two user profile(المستخدم 1 والمستخدم 2).

1. مع إيقاف تشغيل الجهاز، اضغط مع الاستمرار على ميم button for approximately 3 seconds to enter setting mode.
2. The year will flash. Use the ميم button to adjust the value, and the تشغيل/إيقاف button to confirm and move to the next setting (month, day, hour, minute).
3. After setting the time, you can select the user profile (1 or 2) by pressing the ميم button. Confirm with the تشغيل/إيقاف زر.

تعليمات التشغيل

1. أخذ القياس

Before measuring, rest for at least 5 minutes. Avoid eating, smoking, or exercising immediately prior to measurement.

1. Sit comfortably with your back supported and feet flat on the floor. Place your arm on a table so the cuff is at heart level.
2. اضغط على تشغيل/إيقاف button to start the measurement. The display will illuminate.
3. The cuff will automatically inflate. Once inflation is complete, the air will slowly release, and your systolic, diastolic, and pulse values will be displayed.
4. The measurement results, including date and time, will be automatically saved in the selected user memory.
5. اضغط على تشغيل/إيقاف button again to switch off the device, or it will automatically shut off after approximately 1 minute.

2. فهم النتائج

The display shows your systolic pressure (SYS), diastolic pressure (DIA), and pulse rate (PUL). The device also provides a risk indicator and arrhythmia detection.

• مؤشر المخاطر: A colored scale on the left side of the display indicates your blood pressure classification according to WHO (World Health Organization) guidelines.
• الكشف عن اضطراب النظم القلبي: If an irregular heartbeat is detected during measurement, the arrhythmia symbol (أيقونة القلب) will appear on the display. Consult your doctor if this symbol appears frequently.

The Beurer BM 58 blood pressure monitor includes an integrated risk indicator, classifying measurement results according to WHO guidelines. It also features automatic arrhythmia detection, alerting users to potential irregular heartbeats.

3. وظائف الذاكرة

The BM 58 stores up to 60 measurements for each of the two user profiles.

• Viewالقيم المخزنة: مع إيقاف تشغيل الجهاز، اضغط على ميم button. The average of all stored values for the currently selected user will be displayed. Press ميم again to cycle through morning average, evening average, and individual measurements in reverse chronological order.
• Switching User Profiles: When the device is off, press the ميم الزر ثم تشغيل/إيقاف button to switch between User 1 and User 2.

The Beurer BM 58 features an extra-large, illuminated display for easy readability. It supports two user profiles, each capable of storing up to 60 measurement values, making it suitable for couples or individuals tracking their readings over time.

4. Connecting to PC and HealthManager Software

The BM 58 can transfer measurement data to your computer using the included USB cable and the free Beurer HealthManager software.

1. Download and install the "Beurer HealthManager" software from the official Beurer webموقع.
2. قم بتوصيل جهاز قياس ضغط الدم بجهاز الكمبيوتر الخاص بك باستخدام كابل USB.
3. قم بتشغيل جهاز مراقبة ضغط الدم.
4. Launch the HealthManager software on your PC and follow the on-screen instructions to import your data.

The back of the Beurer BM 58 monitor includes a USB interface, allowing users to connect the device to a PC. This enables data transfer to the free Beurer HealthManager software for comprehensive health data management and analysis.

صيانة

تنظيف الجهاز

• قم بتنظيف الجهاز والكم بعناية باستخدام قطعة قماش مبللة قليلاً.amp قطعة قماش.
• لا تستخدم مواد التنظيف الكاشطة أو المذيبات.
• لا تغمر الجهاز أبدًا في الماء أو أي سوائل أخرى.

تخزين

• Store the device and cuff in the provided protective case when not in use.
• يُخزن في مكان بارد وجاف، بعيدًا عن أشعة الشمس المباشرة ودرجات الحرارة القصوى.

For convenient storage and portability, the Beurer BM 58 blood pressure monitor comes with a practical protective carrying case, keeping the device and cuff safe.

استكشاف الأخطاء وإصلاحها

تحديد

• نموذج: بي ام 58
• طريقة القياس: قياس ضغط الدم غير الجراحي على العضد
• نطاق القياس:
  • الضغط الانقباضي: 50 - 250 ملم زئبق
  • الضغط الانبساطي: 30 - 200 ملم زئبق
  • معدل النبض: 30 - 180 نبضة/دقيقة
• دقة:
  • الضغط: ± 3 مم زئبق
  • Pulse: +/- 5% of displayed value
• ذاكرة: 2 × 60 مساحة ذاكرة
• حجم الكفة: For arm circumferences of 22 - 30 cm
• مزود الطاقة: 4 بطاريات AA بقوة 1.5 فولت (متضمنة)
• أبعاد: حوالي 10 × 15 × 5.8 سم
• وزن: حوالي 502 جرام (بدون بطاريات)
• الواجهة: USB
• ظروف التشغيل: من +10 درجة مئوية إلى +40 درجة مئوية، ومن 30% إلى 85% رطوبة نسبية (بدون تكثيف)
• ظروف التخزين: من -20 درجة مئوية إلى +50 درجة مئوية، ومن 15% إلى 90% رطوبة نسبية (بدون تكثيف)

الضمان والدعم

The Beurer BM 58 Blood Pressure Monitor comes with a ضمان لمدة 3 سنوات من تاريخ الشراء. يغطي هذا الضمان عيوب المواد والصناعة في ظل الاستخدام العادي.

الضمان لا يشمل:

• Damage due to improper use or handling.
• الأضرار الناجمة عن الإصلاحات أو التعديلات غير المصرح بها.
• Damage caused by external factors (e.g., drops, water damage).
• Normal wear and tear of consumables (e.g., batteries, cuff).

For warranty claims or technical support, please contact Beurer customer service. Keep your proof of purchase for warranty validation.

Additional information and software downloads can be found on the official Beurer webموقع: www.beurer.com
