Lights of America 9166 65W Fluorex Yard Light Instruction Manual

المنتج انتهىview

The Lights of America Model 9166 is a 65W Fluorex Yard Light designed for outdoor security lighting. This unit features a durable, waterproof Lexan housing and incorporates a dusk-to-dawn sensor for automatic operation. It provides instant-on and instant-restrike capabilities, ensuring reliable illumination when needed.

تتضمن الميزات الرئيسية ما يلي:

• 65-watt fluorescent lighting for energy-efficient illumination.
• Integrated dusk-to-dawn sensor for automatic activation and deactivation.
• Instant start and instant restrike functionality.
• Waterproof Lexan housing for enhanced durability in outdoor environments.
• Designed for hardwire installation (Black & White).

معلومات السلامة

تحذير: Risk of electric shock. Installation requires knowledge of electrical wiring systems. If not qualified, do not attempt installation. Contact a qualified electrician.

• Always disconnect power at the circuit breaker or fuse box before installation, servicing, or changing the bulb.
• تأكد من أن جميع التوصيلات الكهربائية تتوافق مع القوانين واللوائح المحلية، بالإضافة إلى قانون الكهرباء الوطني (NEC).
• لا تقم بتركيب هذا الجهاز على الأسطح القابلة للاشتعال بسهولة.
• ارتدِ نظارات وقفازات واقية أثناء التركيب.
• This fixture is designed for outdoor use and is waterproof; however, ensure all seals and gaskets are properly seated during installation to maintain its integrity.

محتويات الحزمة

تأكد من وجود جميع المكونات قبل البدء بالتثبيت. في حال وجود أي أجزاء مفقودة أو تالفة، لا تتابع عملية التثبيت وتواصل مع خدمة العملاء.

• Lights of America 9166 65W Fluorex Yard Light fixture
• أدوات التثبيت (براغي، موصلات أسلاك)
• دليل التعليمات (هذا المستند)
• (Bulb may be pre-installed or included separately)

الإعداد والتثبيت

This fixture is designed for wall mount or flush mount installation and requires hardwiring. Professional installation is recommended.

الأدوات المطلوبة (غير متضمنة):

• مفك براغي (فيليبس و/أو مسطح)
• تقشير الأسلاك
• كماشة
• شريط كهربائي
• Drill (if mounting holes are not pre-existing)
• المجلدtagه اختبار

خطوات التثبيت:

1. إيقاف تشغيل الطاقة: Locate the circuit breaker or fuse box controlling the power to the installation area. Turn off the power completely. Verify power is off using a voltagه اختبار.
2. إعداد سطح التركيب: Choose a suitable wall or flush mount location. Ensure the surface is structurally sound to support the fixture. If replacing an existing fixture, carefully remove it.
3. تركيب التركيبات:

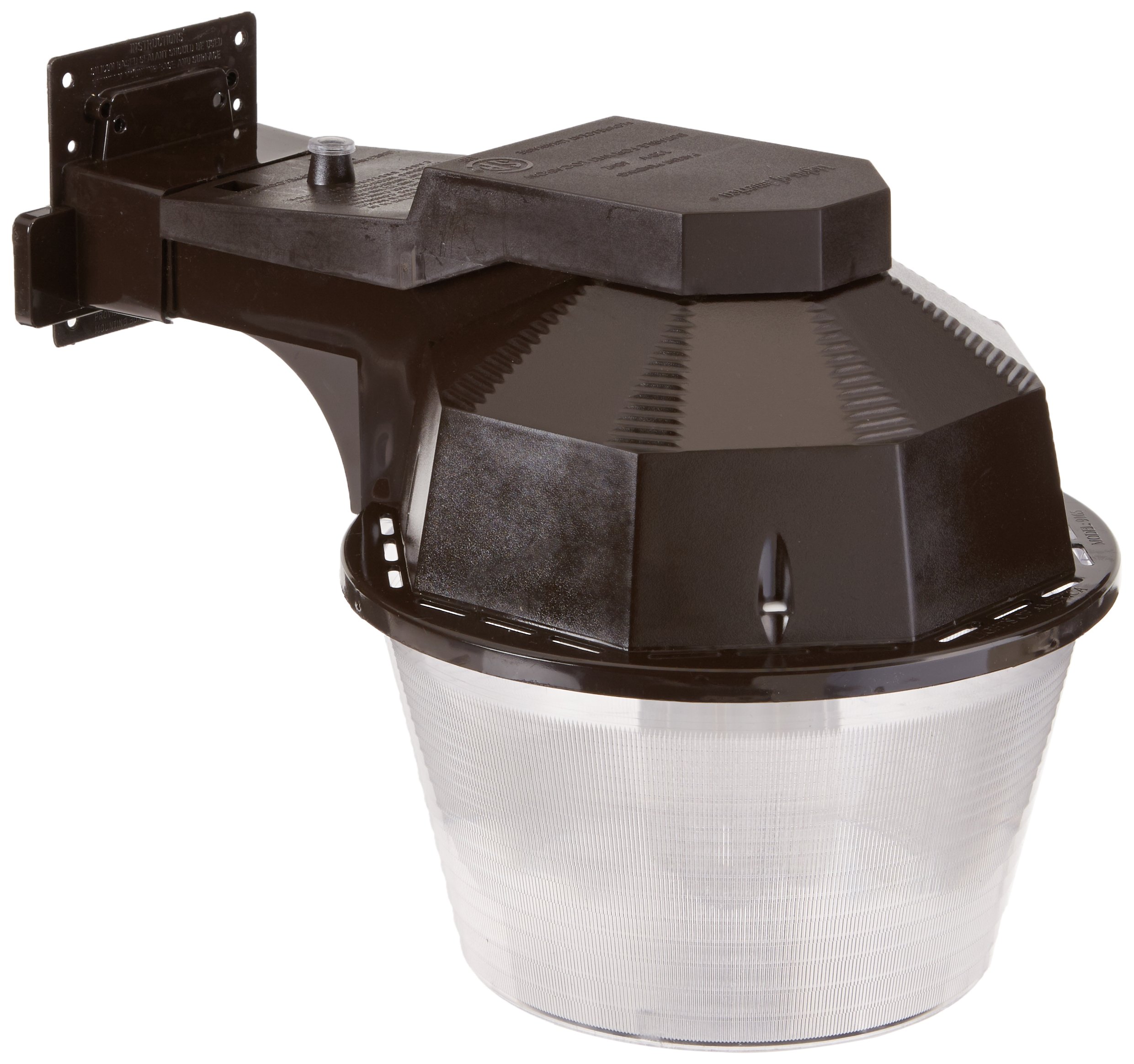

   Image: The Lights of America 9166 Fluorex Yard Light, brown in color, shown mounted on an exterior wall. The fixture has a rectangular base and a curved, translucent cover over the bulb.

   Align the fixture's mounting plate with the electrical junction box or desired mounting location. Secure the fixture to the surface using the provided mounting screws. Ensure a tight and stable fit.

4. التوصيلات الكهربائية:
   • قم بتوصيل أسود سلك من التركيبات إلى أسود السلك (الساخن) من مصدر الطاقة.
   • قم بتوصيل أبيض سلك من التركيبات إلى أبيض (neutral) wire from the power supply.
   • قم بتوصيل أرضي wire (bare copper or green) from the fixture to the house ground wire.

   Secure all connections with wire nuts and wrap with electrical tape for added insulation and security. Carefully tuck all wires into the junction box.

5. السكن الآمن: Ensure the fixture's housing is properly closed and sealed to maintain its waterproof integrity.
6. اعادة الطاقة: بمجرد اكتمال التثبيت وتأمين جميع التوصيلات، قم باستعادة الطاقة عند قاطع الدائرة.

تعليمات التشغيل

The Lights of America 9166 Fluorex Yard Light is designed for automatic operation via its integrated dusk-to-dawn sensor.

• عملية تلقائية: The fixture will automatically turn on when ambient light levels fall below a certain threshold (dusk) and turn off when light levels rise (dawn).
• Instant On/Restrike: The fluorescent bulb is designed for instant illumination upon activation and quick restrike if power is momentarily interrupted.
• جهاز التحكم عن بعد (إن وجد): While the product specifications mention a "Remote" control method, no specific remote is included or detailed in the product information. If your specific unit came with a remote, refer to its separate instructions for pairing and operation. Otherwise, the primary operation is automatic via the dusk-to-dawn sensor.

Ensure the dusk-to-dawn sensor is not obstructed by objects, eaves, or other light sources (like other security lights) that could interfere with its proper function.

صيانة

Regular maintenance ensures optimal performance and longevity of your yard light.

• تنظيف: نظف الجزء الخارجي من الجهاز بشكل دوري بقطعة قماش ناعمة.amp cloth. Avoid abrasive cleaners. Ensure the dusk-to-dawn sensor lens is clean for accurate operation.
• Insect Management: Due to the nature of outdoor lighting, insects, including spiders, may attempt to build nests inside the housing. While the housing is waterproof, insect activity can sometimes interfere with internal components. Periodically inspect the fixture and carefully remove any insect nests or debris. Ensure the housing is properly sealed after inspection.
• استبدال المصباح:
  • احرص دائمًا على إيقاف تشغيل الطاقة at the circuit breaker before attempting to replace the bulb.
  • Carefully open the fixture housing.
  • Allow the old bulb to cool if it has been recently in use.
  • Remove the old 65W fluorescent bulb and replace it with a new 65W fluorescent bulb of the same type.
  • Close the housing securely, ensuring all seals are properly seated to maintain waterproof integrity.
  • استعادة الطاقة.

استكشاف الأخطاء وإصلاحها

If your Lights of America 9166 Fluorex Yard Light is not functioning as expected, refer to the following common issues and solutions:

تحديد

الضمان والدعم

معلومات الضمان: The manufacturer's warranty for this product is discontinued. Please be aware of this status when purchasinأو طلب الدعم.

For any technical inquiries or assistance, please contact Lights of America customer support. While the warranty is discontinued, they may still be able to provide guidance or resources for common issues.

Note: Information regarding specific contact methods (phone, email, website) for Lights of America is not available in the provided product data. Please refer to the product packaging or official Lights of America website for current support contact details.
